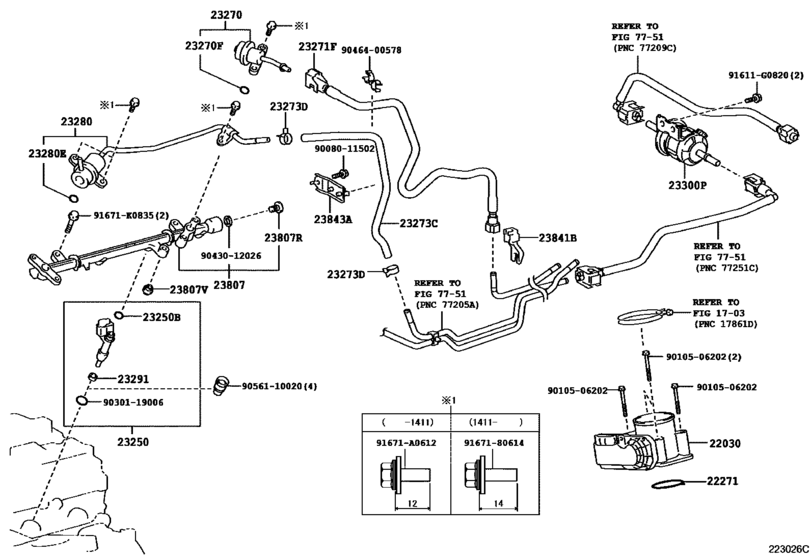

Fuel Injection System ([06.2014 - ] (1406- )3TRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-75020 Body Assy, Throttle W/motor[01.2013 - 07.2015] 3TRFE..TRB53 |
22030-75020 |
from US $737.80 |
||
|
22271
|
22271
22271-0C021 Gasket, Throttle Body[01.2013 - 07.2015] 3TRFE..TRB53 |
22271-0C021 |
from US $2.96 |
||
| replacement | |||||
|
22271
|
22271
22271-75070 Gasket, Throttle Body[01.2013 - 07.2015] 3TRFE..TRB53 |
22271-75070 |
from US $3.20 |
||
|
23250
|
23250
23209-79155
Injector Assy, Fuel
[01.2013 - 08.2014] 3TRFE..TRB53 |
23209-79155 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-79205 Injector Assy, Fuel[01.2013 - 08.2014] 3TRFE..TRB53 |
23209-79205 |
from US $185.56 |
||
|
23250
|
23250
23209-79186 Injector Assy, Fuel[08.2014 - 07.2015] 3TRFE..TRB53 |
23209-79186 |
from US $160.45 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[01.2013 - 07.2015] 3TRFE..TRB53 |
90301-07037 |
US $2.24 |
||
|
23270
|
23270
23270-75010
Damper Assy, Fuel Pressure Pulsation
[01.2013 - 11.2014] 3TRFE..TRB53 |
23270-75010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-75050 Damper Assy, Fuel Pressure Pulsation[01.2013 - 11.2014] 3TRFE..TRB53 |
23270-75050 |
from US $61.10 |
||
|
23270
|
23270
23270-75050 Damper Assy, Fuel Pressure Pulsation[11.2014 - 07.2015] 3TRFE..TRB53 |
23270-75050 |
from US $61.10 |
||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[01.2013 - 07.2015] 3TRFE..TRB53 |
90301-07037 |
US $2.24 |
||
|
23271F
|
23271F
23271-75230
Hose, Fuel
[01.2013 - 07.2015] 3TRFE..TRB53 |
23271-75230 |
— | ||
|
23273C
|
23273C
23273-75290
Hose, Fuel, No.2
[01.2013 - 07.2015] 3TRFE..TRB53 |
23273-75290 |
— | ||
|
23273D
|
23273D
96132-51100 Clip (For Hose)[01.2013 - 07.2015] 3TRFE..TRB53 |
96132-51100 |
from US $1.92 |
||
|
23280
|
23280
23280-75040
Regulator Assy, Fuel Pressure
[01.2013 - 07.2015] 3TRFE..TRB53 |
23280-75040 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-75130 REGULATOR ASSY[01.2013 - 07.2015] 3TRFE..TRB53 |
23280-75130 |
from US $80.93 |
||
|
23280E
|
23280E
90301-07037 Ring, O(For Fuel Injector)[01.2013 - 07.2015] 3TRFE..TRB53 |
90301-07037 |
US $2.24 |
||
|
23291
|
23291
23291-73010 Insulator, Injector Vibration[01.2013 - 07.2015] 3TRFE..TRB53 |
23291-73010 |
from US $3.41 |
||
|
23300P
|
23300P
23300-75150
Filter, Fuel(For Efi)
[01.2013 - 07.2015] 3TRFE..TRB53 |
23300-75150 |
— | ||
|
23807
|
23807
23807-75050 Pipe Sub-Assy, Fuel Delivery[01.2013 - 09.2014] 3TRFE..TRB53 |
23807-75050 |
US $70.91 |
||
| replacement | |||||
|
23807
|
23807
23807-75052 Pipe Sub-Assy, Fuel Delivery[01.2013 - 09.2014] 3TRFE..TRB53 |
23807-75052 |
US $135.20 |
||
| replacement | |||||
|
23807
|
23807
23807-75082 Pipe Sub-Assy, Fuel Delivery[01.2013 - 09.2014] 3TRFE..TRB53 |
23807-75082 |
from US $97.68 |
||
|
23807
|
23807
23807-75052 Pipe Sub-Assy, Fuel Delivery[10.2014 - 07.2015] 3TRFE..TRB53 |
23807-75052 |
US $135.20 |
||
| replacement | |||||
|
23807
|
23807
23807-75082 Pipe Sub-Assy, Fuel Delivery[10.2014 - 07.2015] 3TRFE..TRB53 |
23807-75082 |
from US $97.68 |
||
|
23807R
|
23807R
90341-12030 Plug, Fuel Delivary Pipe[01.2013 - 07.2015] 3TRFE..TRB53 |
90341-12030 |
US $1.92 |
||
|
23807V
|
23807V
90561-08036 Spacer, No.1(For Delivery Pipe)[01.2013 - 07.2015] 3TRFE..TRB53 |
90561-08036 |
from US $1.25 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[01.2013 - 07.2015] 3TRFE..TRB53 |
23841-21050 |
US $3.52 |
||
|
23843A
|
23843A
23847-75020 Clamp,fuel Pipe, No.3(For Efi)FUEL PIPE, NO.3(FOR EFI) [01.2013 - 07.2015] 3TRFE..TRB53 |
23847-75020 |
US $2.91 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
91671K0835
|
91671K0835
91671-K0835 New Genuine Part |
91671-K0835 |
US $1.44 |
||
|
9008011502
|
9008011502
90080-11502
New Genuine Part
|
90080-11502 |
— | ||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.84 |
||
|
9030119006
|
9030119006
90301-19006 Ring, O(For Fuel Injector) |
90301-19006 |
from US $1.77 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.88 |
||
|
9046400578
|
9046400578
90464-00578 CLAMP |
90464-00578 |
US $0.96 |
||
|
9056110020
|
9056110020
90561-10020 SPACER |
90561-10020 |
from US $1.44 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
