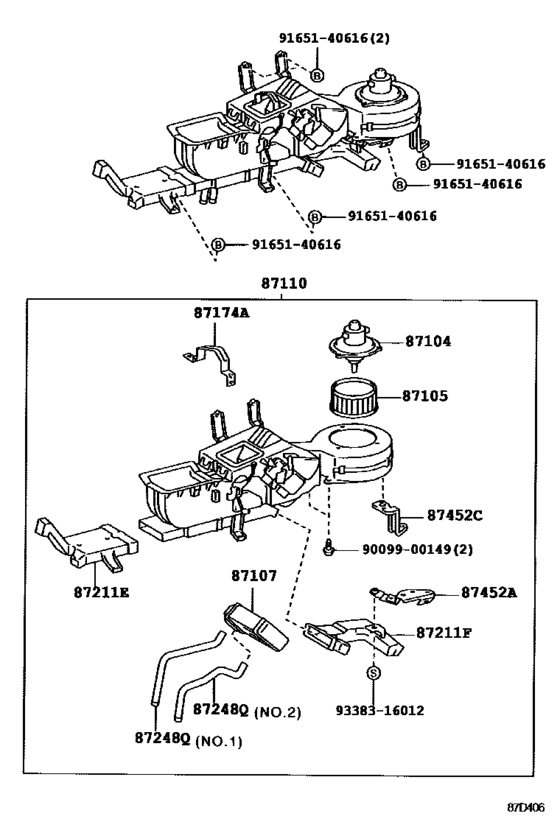

Heating & Air Conditioning - Heater Unit & Blower ([01.2013 - ] FRONT (1301- )GRB53,TRB53 ; (1403-1507)XZB53) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-36340
Motor Sub-Assy, Heater Blower
[01.2013 - 07.2015] GRB53,TRB53 |
87104-36340 |
— | ||
|
87105
|
87105
87105-36100
Fan Sub-Assy, Heater Blower
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87105-36100 |
— | ||
|
87107
|
87107
87107-36200
Unit Sub-Assy, Heater Radiator
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87107-36200 |
— | ||
|
87110
|
87110
87110-36570
Heater Assy
[01.2013 - 07.2015] GRB53,TRB53 |
87110-36570 |
— | ||
|
87174A
|
87174A
87174-36060
Guide, Air Heater
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87174-36060 |
— | ||
|
87211E
|
87211E
87211-36120
Duct, Air
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87211-36120 |
— | ||
|
87211F
|
87211F
87211-36131
Duct, Air
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87211-36131 |
— | ||
|
87248Q
|
87248Q
87248-36460
Pipe, Front Heater Radiator Water
[01.2013 - 07.2015] GRB53,TRB53,XZB53 NO.1 |
87248-36460 |
— | ||
|
87248Q
|
87248Q
87248-36470
Pipe, Front Heater Radiator Water
[01.2013 - 07.2015] GRB53,TRB53,XZB53 NO.2 |
87248-36470 |
— | ||
|
87452A
|
87452A
87452-36300
Bracket, Heater, Front
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87452-36300 |
— | ||
|
87452C
|
87452C
87452-36310
Bracket, Front Heater, No.2
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
87452-36310 |
— | ||
|
9009900149
|
9009900149
90099-00149
New Genuine Part
|
90099-00149 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9338316012
|
9338316012
93383-16012 New Genuine Part |
93383-16012 |
US $0.61 |
||
