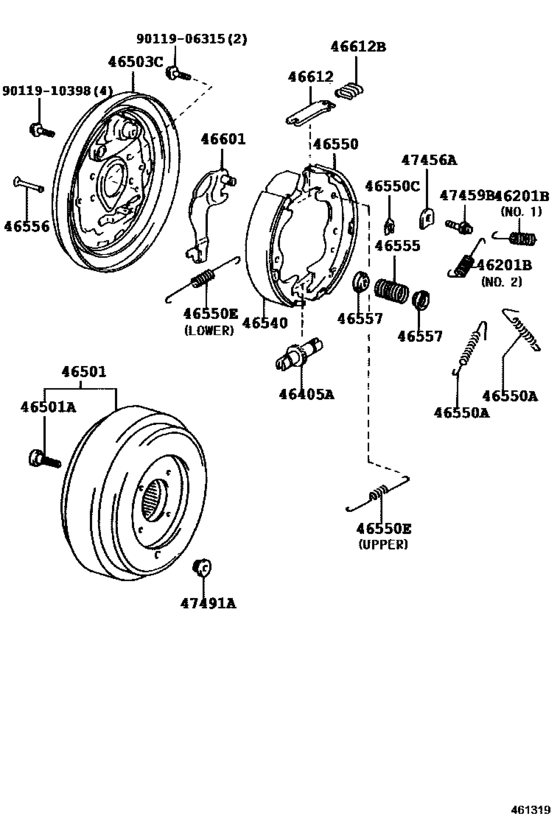

Parking Brake & Cable ([01.2013 - ] (1301- )) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201B
|
46201B
90507-20020 Spring, Tension[01.2013 - 07.2015] GRB53,TRB53,XZB53 NO.1 |
90507-20020 |
from US $1.76 |
||
|
46201B
|
46201B
90507-20021 Spring, Tension[01.2013 - 07.2015] GRB53,TRB53,XZB53 NO.2 |
90507-20021 |
from US $1.76 |
||
|
46405A
|
46405A
47405-36010 Screw Set, Shoe Adjusting, Rh[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47405-36010 |
from US $18.24 |
||
|
46501
|
46501
46501-0S010
Drum Sub-Assy, Parking Brake
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46501-0S010 |
— | ||
|
46501A
|
46501A
90114-11124 Bolt (For Transfer Output Shaft Companion Flange)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90114-11124 |
from US $1.40 |
||
|
46503C
|
46503C
46503-36071 Plate Sub-Assy, Parking BrakePARKING BRAKE [01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46503-36071 |
US $165.98 |
||
|
46540
|
46540
46540-37040 Shoe Assy, Parking Brake, Rh Or Center No.1[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46540-37040 |
from US $34.20 |
||
|
46550
|
46550
46550-37040 Shoe Assy, Parking Brake, Rh Or Center No.2[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46550-37040 |
from US $26.15 |
||
|
46550A
|
46550A
90905-06020 Spring, Tension, No.1(For Parking Brake Shoe Return)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90905-06020 |
US $1.44 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90213-06003 |
from US $1.44 |
||
|
46550E
|
46550E
90506-14054 Spring, Tension, No.2(For Parking Brake Shoe Return)[01.2013 - 07.2015] GRB53,TRB53 LOWER |
90506-14054 |
from US $1.76 |
||
|
46550E
|
46550E
90905-06090 Spring, Tension, No.2(For Parking Brake Shoe Return)TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) [01.2013 - 07.2015] GRB53,TRB53,XZB53 UPPER |
90905-06090 |
US $1.89 |
||
|
46555
|
46555
90501-16108 Spring, Brake Shoe Hold Down[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90501-16108 |
from US $1.44 |
||
|
46556
|
46556
47447-20030 Pin, Shoe Hold Down Spring[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47447-20030 |
from US $1.74 |
||
|
46557
|
46557
47449-20011 Cup, Brake Shoe Hold Down[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47449-20011 |
from US $1.92 |
||
|
46601
|
46601
46601-36080
Lever Sub-Assy, Parking Brake Shoe
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46601-36080 |
— | ||
|
46612
|
46612
46612-36081 Strut, Parking Brake Shoe LeverPARKING BRAKE SHOE LEVER [01.2013 - 07.2015] GRB53,TRB53,XZB53 |
46612-36081 |
US $5.53 |
||
|
46612B
|
46612B
90504-10010 Spring, Compression(For Parking Brake Shoe Strut)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90504-10010 |
from US $1.44 |
||
|
47456A
|
47456A
47456-36010
Plate, Shoe Guide(For Parking Brake)
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47456-36010 |
— | ||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47459-30010 |
from US $3.71 |
||
|
47491A
|
47491A
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47491-22020 |
from US $1.77 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.12 |
||
|
9011910398
|
9011910398
90119-10398 BOLT |
90119-10398 |
US $1.76 |
