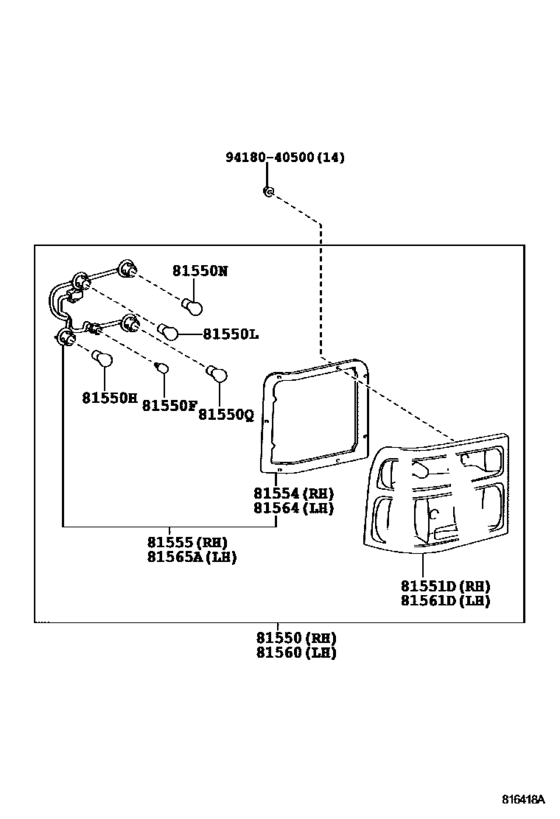

Rear Combination Lamp ([01.2013 - ] (1301- )) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0S040
Lamp Assy, Rear Combination, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53..STD |
81550-0S040 |
— | ||
|
81550F
|
81550F
99132-12050 Bulb (12V 5W)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81550F
|
81550F
90080-81053 Bulb(For Clearance Lamp)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90080-81053 |
US $2.75 |
||
|
81550H
|
81550H
99132-21210 Bulb, Cornering Lamp[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
99132-21210 |
from US $2.81 |
||
|
81550L
|
81550L
99132-11210 Bulb (12V 21W)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
99132-11210 |
from US $2.72 |
||
|
81550N
|
81550N
99132-11210 Bulb (12V 21W)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
99132-11210 |
from US $2.72 |
||
|
81550Q
|
81550Q
99132-11210 Bulb (12V 21W)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
99132-11210 |
from US $2.72 |
||
|
81551D
|
81551D
81551-0S040
Lens & Body, Rear Combination Lamp, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53..STD |
81551-0S040 |
— | ||
|
81554
|
81554
81554-0S030
Gasket, Rear Combination Lamp Body, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
81554-0S030 |
— | ||
|
81555
|
81555
81555-0S030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
81555-0S030 |
— | ||
|
81560
|
81560
81560-0S040
Lamp Assy, Rear Combination, Lh
[01.2013 - 07.2015] GRB53,TRB53,XZB53..STD |
81560-0S040 |
— | ||
|
81561D
|
81561D
81561-0S040
Lens & Body, Rear Combination Lamp, Lh
[01.2013 - 07.2015] GRB53,TRB53,XZB53..STD |
81561-0S040 |
— | ||
|
81564
|
81564
81554-0S030
Gasket, Rear Combination Lamp Body, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
81554-0S030 |
— | ||
|
81565A
|
81565A
81555-0S030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
81555-0S030 |
— | ||
|
9418040500
|
9418040500
94180-40500 Nut, Tilt Roof Housing |
94180-40500 |
US $1.28 |
||
