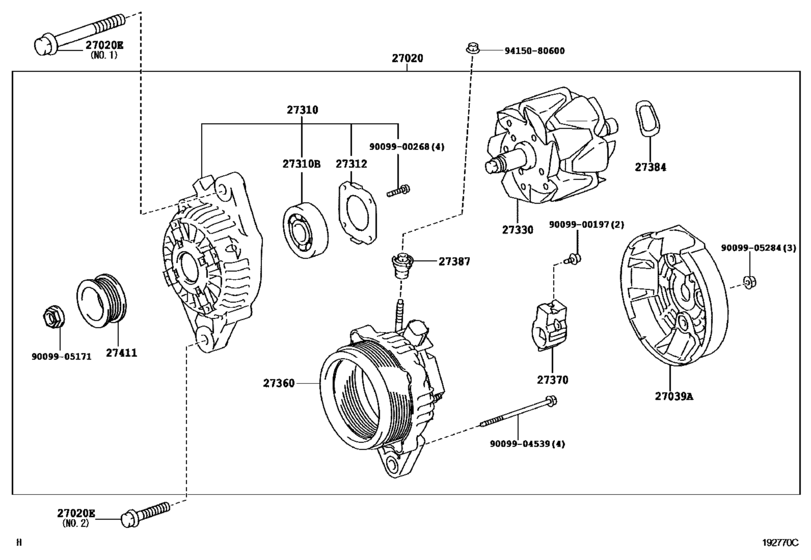

Alternator ([01.2007 - ] 12V 80A (0701- )2TRFE) Diagram Toyota COASTER
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 08.2011
- To
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- IV5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0C050
Alternator Assy
[10.2010 -] 2TRFE..TRB53 12V 80A |
27060-0C050 |
— | ||
|
27020E
|
27020E
91552-81040 Bolt(For Alternator)[01.2007 -] 2TRFE..TRB53 NO.2 |
91552-81040 |
US $1.92 |
||
|
27020E
|
27020E
91552-81085 Bolt(For Alternator)[01.2007 -] 2TRFE..TRB53 NO.1 |
91552-81085 |
US $3.36 |
||
|
27039A
|
27039A
27039-0H110
Cover, Alternator Rear End
[01.2007 -] 2TRFE..TRB53 |
27039-0H110 |
— | ||
|
27310
|
27310
27310-0C050
Frame Assy, Drive End, Alternator
[10.2010 -] 2TRFE..TRB53 |
27310-0C050 |
— | ||
|
27310B
|
27310B
90068-10029
Bearing(For Alternator Drive End Frame)
[10.2010 - 11.2012] 2TRFE..TRB53 |
90068-10029 |
— | ||
|
27310B
|
27310B
90068-10040
Bearing(For Alternator Drive End Frame)
[11.2012 - 01.2013] 2TRFE..TRB53 |
90068-10040 |
— | ||
|
27312
|
27312
27312-0M070
Plate, Retainer
[12.2012 - 01.2013] 2TRFE..TRB53 |
27312-0M070 |
— | ||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[01.2007 - 12.2012] 2TRFE..TRB53 |
27312-72100 |
US $3.92 |
||
|
27330
|
27330
27330-0H110
Rotor Assy, Alternator
[01.2007 -] 2TRFE..TRB53 |
27330-0H110 |
— | ||
|
27360
|
27360
27360-0C050
Coil Assy, Alternator
[10.2010 -] 2TRFE..TRB53 |
27360-0C050 |
— | ||
|
27370
|
27370
27370-0H110
Holder Assy, Alternator Brush
[01.2007 -] 2TRFE..TRB53 |
27370-0H110 |
— | ||
|
27384
|
27384
27384-16380
Washer
[01.2007 -] 2TRFE..TRB53 |
27384-16380 |
— | ||
|
27387
|
27387
27387-0H110
Insulator, Alternator Terminal
[01.2007 -] 2TRFE..TRB53 |
27387-0H110 |
— | ||
|
27411
|
27411
27411-75340
Pulley, Alternator
[01.2007 -] 2TRFE..TRB53 |
27411-75340 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.68 |
