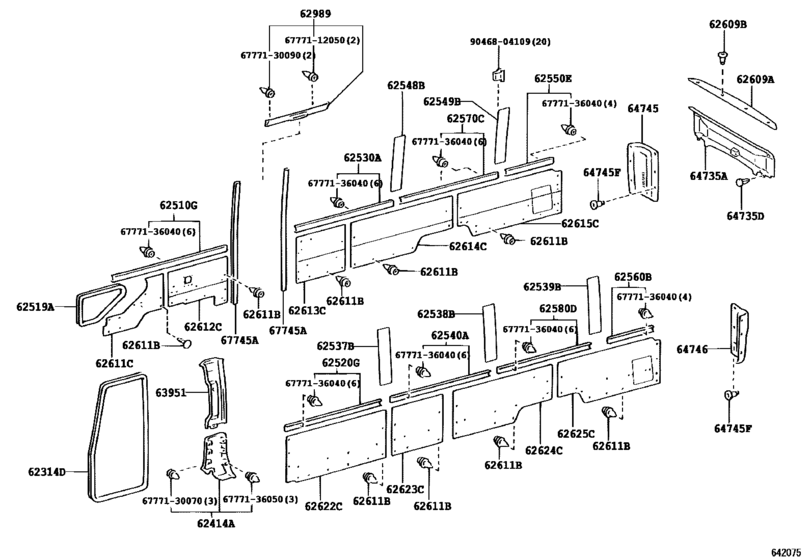

Inside Trim Board ([01.2007 - ] (0701- )STD) Diagram Toyota COASTER
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 08.2011
- To
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- IV5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62314D
|
62314D
62313-0S011-A0
Trim, Front Door Opening, Lh
[07.2007 - 03.2014] TRB53,XZB53 IVORY,TRIM4# |
62313-0S011-A0 |
— | ||
|
62414A
|
62414A
62414-36011-A0
Garnish, Center Pillar, Lower Lh
[01.2007 - 03.2014] TRB53,XZB53 IVORY,TRIM4# |
62414-36011-A0 |
— | ||
|
62510G
|
62510G
62510-36501-E0
Trim Assy, Side No.1, Rh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62510-36501-E0 |
— | ||
|
62519A
|
62519A
62519-0S011-A0
Trim, Side Lower Window
[07.2007 - 03.2014] TRB53,XZB53 IVORY,TRIM4# |
62519-0S011-A0 |
— | ||
|
62520G
|
62520G
62520-36511-E0
Trim Assy, Side No.1, Lh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62520-36511-E0 |
— | ||
|
62530A
|
62530A
62530-36331-E0
Trim Assy, Side No.2, Rh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62530-36331-E0 |
— | ||
|
62540A
|
62540A
62570-36111-E0
Trim Assy, Side No.2, Lh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62570-36111-E0 |
— | ||
|
62550E
|
62550E
62550-36151-E0
Trim Assy, Side No.3, Rh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62550-36151-E0 |
— | ||
|
62560B
|
62560B
62560-36151-E0
Trim Assy, Side, No.3 Lh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62560-36151-E0 |
— | ||
|
62570C
|
62570C
62570-36111-E0
Trim Assy, Side No.2, Lh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62570-36111-E0 |
— | ||
|
62580D
|
62580D
62570-36111-E0
Trim Assy, Side No.2, Lh
[01.2007 - 03.2014] TRB53,XZB53..STD GREIGE,TRIM4# |
62570-36111-E0 |
— | ||
|
62611B
|
62611B
90467-08104-A1 Clip (For Luggage Partition Board)[10.2003 - 03.2014] BB54,RZB54,TRB53,XZB53..STD,STDH IVORY,TRIM4# |
90467-08104-A1 |
from US $1.21 |
||
|
62611C
|
62611C
62611-0S010-A0
Board, Side Trim No.1, Rh
[11.2007 - 03.2014] TRB53,XZB53 IVORY,TRIM4# |
62611-0S010-A0 |
— | ||
|
62612C
|
62612C
62612-0S010-A0
Board, Side Trim No.2, Rh
[11.2007 - 03.2014] TRB53,XZB53..STD IVORY,TRIM4# |
62612-0S010-A0 |
— | ||
|
62613C
|
62613C
62613-0S050-A0
Board, Side Trim No.3, Rh
[11.2007 - 01.2013] TRB53..20S..STD IVORY,TRIM4# |
62613-0S050-A0 |
— | ||
|
62614C
|
62614C
62614-0S020-A0
Board, Side Trim No.4, Rh
[11.2007 - 03.2014] TRB53,XZB53..20S..STD IVORY,TRIM4# |
62614-0S020-A0 |
— | ||
|
62615C
|
62615C
62615-0S040-A0
Board, Side Trim No.5, Rh
[08.2011 - 01.2013] TRB53..IV5 IVORY,TRIM4# |
62615-0S040-A0 |
— | ||
|
62622C
|
62622C
62622-0S020-A0
Board, Side Trim No.2, Lh
[11.2007 - 03.2014] TRB53,XZB53..20S..STD IVORY,TRIM4# |
62622-0S020-A0 |
— | ||
|
62623C
|
62623C
62623-0S020-A0
Board, Side Trim No.3, Lh
[11.2007 - 03.2014] TRB53,XZB53..20S..STD IVORY,TRIM4# |
62623-0S020-A0 |
— | ||
|
62624C
|
62624C
62624-0S020-A0
Board, Side Trim No.4, Lh
[11.2007 - 03.2014] TRB53,XZB53..20S..STD IVORY,TRIM4# |
62624-0S020-A0 |
— | ||
|
62625C
|
62625C
62625-0S040-A0
Board, Side Trim No.5, Lh
[08.2011 - 01.2013] TRB53..IV5 IVORY,TRIM4# |
62625-0S040-A0 |
— | ||
|
62989
|
62989
62989-36012-A1 Cover, Center Door Lock[02.2007 - 03.2014] TRB53,XZB53..STD IVORY,TRIM4# |
62989-36012-A1 |
US $32.03 |
||
|
63951
|
63951
63951-36211-A0
Cover, Cooler Pipe
[01.2007 - 03.2014] TRB53,XZB53 IVORY,TRIM4# |
63951-36211-A0 |
— | ||
|
64745F
|
64745F
67771-36030-A0 Clip (For Side Trim Board)[10.2003 - 03.2014] BB5#,RZB5#,TRB53,XZB53 IVORY,TRIM4# |
67771-36030-A0 |
from US $1.60 |
||
|
67745A
|
67745A
67745-0S011-A0
Moulding, Center Door Trim
[07.2007 - 03.2014] TRB53,XZB53..STD IVORY,TRIM4# |
67745-0S011-A0 |
— | ||
|
6777112050
|
6777112050
67771-12050 Clip, Radiator Grille |
67771-12050 |
from US $1.58 |
||
|
6777130070
|
6777130070
67771-30070 Retainer(For Deck Side Trim Panel) |
67771-30070 |
US $3.04 |
||
|
6777130090
|
6777130090
67771-30090 Retainer (For Quarter Inside Trim Board) |
67771-30090 |
from US $1.95 |
||
|
6777136040
|
6777136040
67771-36040 Weatherstrip, Back Door Trim, Rh |
67771-36040 |
from US $2.18 |
||
|
6777136050
|
6777136050
67771-36050 Clip |
67771-36050 |
US $2.20 |
||
|
9046804109
|
9046804109
90468-04109 Clip, Roof Headlining |
90468-04109 |
US $0.87 |
