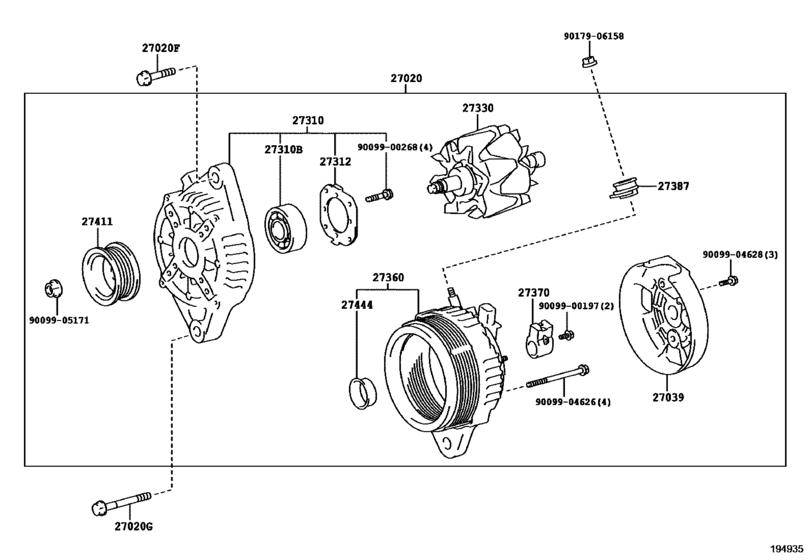

Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-75570 Alternator Assy[01.2017 -] 2TRFE..TRB60,70..WC 12V 100A |
27060-75570 |
US $990.46 |
||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[01.2017 -] 2TRFE..TRB60,70 |
91552-81040 |
from US $1.21 |
||
|
27020G
|
27020G
91552-81085 Bolt(For Alternator)[01.2017 -] 2TRFE..TRB60,70 |
91552-81085 |
US $3.36 |
||
|
27039
|
27039
27039-37220
Cover, Alternator Rear End
[01.2017 -] 2TRFE..TRB60,70..WC |
27039-37220 |
— | ||
|
27310
|
27310
27310-75510
Frame Assy, Drive End, Alternator
[01.2017 -] 2TRFE..TRB60,70..WC |
27310-75510 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[01.2017 -] 2TRFE..TRB60,70..WC;N04C,14B,1HZ..BB60,HZB70,XZB70..ARL,GEN,TAIW |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[01.2017 -] 2TRFE..TRB70;N04C,14B,1HZ,2TRFE..BB60,HZB70,TRB60,XZB70..02S,20S,22S,25S,26S,29S,3 0S |
27312-72100 |
US $3.92 |
||
|
27330
|
27330
27330-47330
Rotor Assy, Alternator
[01.2017 -] 2TRFE..TRB60,70..WC |
27330-47330 |
— | ||
|
27360
|
27360
27360-75530
Coil Assy, Alternator
[01.2017 -] 2TRFE..TRB60,70..WC |
27360-75530 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[01.2017 -] 2TRFE..TRB70;N04C,14B,1HZ,2TRFE..BB60,HZB70,TRB60,XZB70..02S,20S,22S,25S,26S,29S,3 0S |
27370-58460 |
from US $16.25 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[01.2017 -] 2TRFE..TRB60,70..WC;N04C,14B,1HZ..BB60,HZB70,XZB70..ARL,GEN,TAIW |
27387-20130 |
US $4.02 |
||
|
27444
|
27444
27444-21190 Packing, Alternator Bearing Cover[01.2017 -] 2TRFE..TRB60,70 |
27444-21190 |
US $1.11 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904626
|
9009904626
90099-04626
Bolt(For Alternator Coil)
|
90099-04626 |
— | ||
|
9009904628
|
9009904628
90099-04628
Bolt(For Alternator Rear End Cover)
|
90099-04628 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
