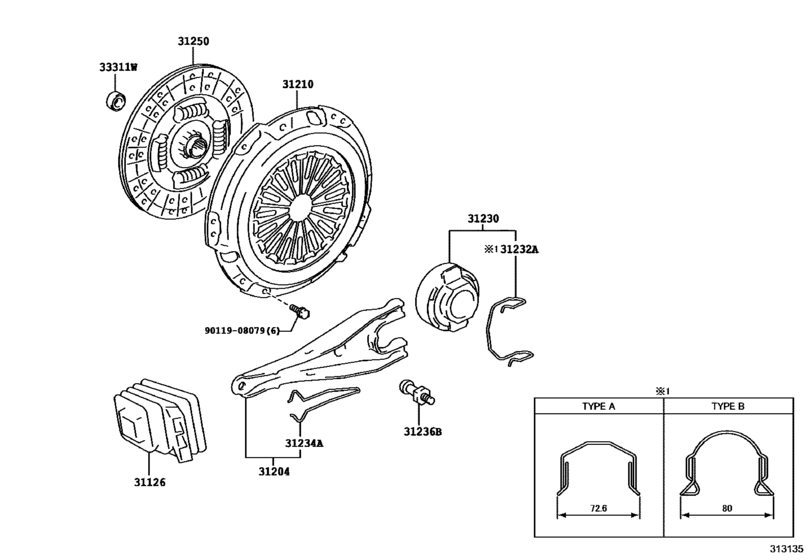

Clutch & Release Fork ([01.2017 - ] (1701- )TRB60,70) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36080 Boot, Clutch Release Fork[01.2017 -] BB60,TRB60,70 |
31126-36080 |
from US $10.08 |
||
|
31204
|
31204
31204-20071 Fork Sub-Assy, Clutch Release[01.2017 -] TRB60,70 |
31204-20071 |
from US $21.58 |
||
|
31210
|
31210
31210-35291 Cover Assy, ClutchCLUTCH [01.2017 -] TRB60,70 |
31210-35291 |
from US $191.52 |
||
|
31230
|
31230
31230-35071 Bearing Assy, Clutch Release[01.2017 -] TRB60,70 |
31230-35071 |
from US $50.16 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[01.2017 -] TRB60,70 TYPE A:REFER ILLUST. |
31232-35020 |
from US $2.62 |
||
|
31232A
|
31232A
31232-35030 Clip Or Spring, Release Bearing Hub[01.2017 -] TRB60,70 TYPE B:REFER ILLUST. |
31232-35030 |
from US $2.62 |
||
|
31234A
|
31234A
31234-35020 Spring, Release Fork Support[01.2017 -] TRB60,70 |
31234-35020 |
US $0.99 |
||
|
31236B
|
31236B
31236-37020 Support, Release Fork[01.2017 -] TRB60,70 |
31236-37020 |
from US $7.36 |
||
|
31250
|
31250
31250-60500
Disc Assy, Clutch
[01.2017 - 06.2017] TRB60,70 |
31250-60500 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60501 DISC ASSY, CLUTCH[01.2017 - 06.2017] TRB60,70 |
31250-60501 |
from US $164.16 |
||
|
33311W
|
33311W
90363-12018 Bearing (For Input Shaft)[01.2017 -] BB60,BZB70,TRB60,70 |
90363-12018 |
from US $6.18 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
