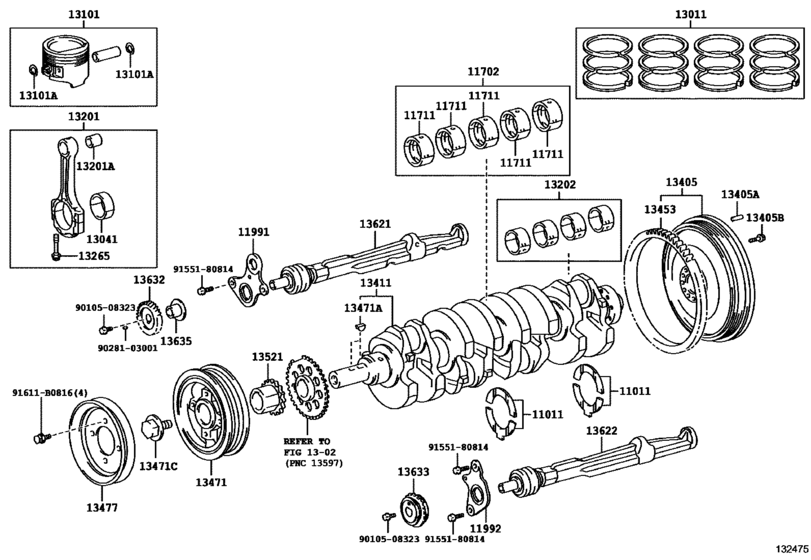

Crankshaft & Piston ([01.2017 - ] (1701- )2TRFE) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-75021
Washer Set, Crankshaft Thrust
[01.2017 -] 2TRFE..TRB60,70 STD |
11011-75021 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-75020 Washer Set, Crankshaft Thrust[01.2017 -] 2TRFE..TRB60,70 STD |
11011-75020 |
from US $23.56 |
||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[01.2017 -] 2TRFE..TRB60,70 U/S 0.25 |
11704-75033 |
from US $99.20 |
||
|
11711
|
11711
11701-75033-01 Bearing, Crankshaft[01.2017 -] 2TRFE..TRB60,70 MARK 1 |
11701-75033-01 |
from US $17.84 |
||
|
11711
|
11711
11701-75033-02 Bearing, Crankshaft[01.2017 -] 2TRFE..TRB60,70 MARK 2 |
11701-75033-02 |
from US $17.28 |
||
|
11711
|
11711
11701-75033-03 Bearing, Crankshaft[01.2017 -] 2TRFE..TRB60,70 MARK 3 |
11701-75033-03 |
from US $17.16 |
||
|
11711
|
11711
11701-75033-04
Bearing, Crankshaft
[01.2017 -] 2TRFE..TRB60,70 MARK 4 |
11701-75033-04 |
— | ||
|
11711
|
11711
11701-75033-05 Bearing, Crankshaft[01.2017 -] 2TRFE..TRB60,70 MARK 5 |
11701-75033-05 |
US $39.31 |
||
|
11991
|
11991
11991-75010 Washer, Balanceshaft Thrust[01.2017 -] 2TRFE..TRB60,70 |
11991-75010 |
US $13.69 |
||
|
11992
|
11992
11992-75010 Washer, Balanceshaft Thrust, No.2[01.2017 -] 2TRFE..TRB60,70 |
11992-75010 |
from US $9.96 |
||
|
13011
|
13011
13011-75110 Ring Set, Piston[01.2017 -] 2TRFE..TRB60,70 STD |
13011-75110 |
from US $139.56 |
||
|
13011
|
13011
13013-75110 Ring Set, Piston (0.50)[01.2017 -] 2TRFE..TRB60,70 O/S 0.50 |
13013-75110 |
from US $175.91 |
||
|
13041
|
13041
13041-75070-04 Bearing, Connecting Rod[01.2017 -] 2TRFE..TRB60,70 MARK 4 |
13041-75070-04 |
from US $12.40 |
||
|
13041
|
13041
13041-75070-05 Bearing, Connecting Rod[01.2017 -] 2TRFE..TRB60,70 MARK 5 |
13041-75070-05 |
from US $11.95 |
||
|
13041
|
13041
13041-75070-06 Bearing, Connecting Rod[01.2017 -] 2TRFE..TRB60,70 MARK 6 |
13041-75070-06 |
from US $12.03 |
||
|
13101
|
13101
13101-75130 Piston Sub-Assy, W/pin[01.2017 -] 2TRFE..TRB60,70 STD |
13101-75130 |
from US $54.97 |
||
|
13101
|
13101
13103-75130 Piston Sub-Assy, W/pin[01.2017 -] 2TRFE..TRB60,70 O/S 0.50 |
13103-75130 |
from US $69.67 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[01.2017 -] 2TRFE..TRB60,70 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-79617 Rod Sub-Assy, Connecting[01.2017 -] 2TRFE..TRB60,70 |
13201-79617 |
from US $147.06 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[01.2017 -] 2TRFE..TRB60,70 |
90999-73144 |
from US $2.52 |
||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[01.2017 -] 2TRFE..TRB60,70 U/S 0.25 |
13204-75070 |
from US $59.14 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[01.2017 -] 2TRFE..TRB60,70 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[01.2017 -] 2TRFE..TRB60,70 |
13265-28020 |
from US $3 |
||
|
13405
|
13405
13405-75060 Flywheel Sub-Assy[01.2017 -] 2TRFE..TRB60,70 |
13405-75060 |
from US $256.84 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.2017 -] 2TRFE..TRB60,70 L=23,OD=8 |
90250-08054 |
from US $1.07 |
||
|
13405B
|
13405B
90910-02116 Bolt, Flywheel Setting[01.2017 -] 2TRFE..TRB60,70 |
90910-02116 |
US $1.92 |
||
|
13411
|
13411
13401-75041
Crankshaft
[01.2017 -] 2TRFE..TRB60,70 |
13401-75041 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-75021 Crankshaft[01.2017 -] 2TRFE..TRB60,70 |
13401-75021 |
US $1,034.34 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.2017 -] 2TRFE..TRB60,70 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-75050 Pulley, Crankshaft[01.2017 -] 2TRFE..TRB60,70 |
13408-75050 |
from US $159.84 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[01.2017 -] 2TRFE..TRB60,70 |
90280-05005 |
from US $1.23 |
||
|
13471C
|
13471C
90105-16041 Bolt(For Crankshaft Pulley Set)[01.2017 -] 2TRFE..TRB60,70 |
90105-16041 |
from US $6.88 |
||
|
13477
|
13477
88451-36200 Pulley, Crankshaft[01.2017 -] 2TRFE..TRB60,70..WC |
88451-36200 |
US $126.50 |
||
|
13521
|
13521
13521-75021 Gear Or Sprocket, Crankshaft Timing[01.2017 -] 2TRFE..TRB60,70 |
13521-75021 |
from US $30.07 |
||
|
13621
|
13621
13621-75020 Balanceshaft, No.1[01.2017 -] 2TRFE..TRB60,70 |
13621-75020 |
US $68.72 |
||
|
13622
|
13622
13622-75020 Balanceshaft, No.2[01.2017 -] 2TRFE..TRB60,70 |
13622-75020 |
from US $51.48 |
||
|
13632
|
13632
13632-75010 Gear, Balanceshaft Driven, No.1[01.2017 -] 2TRFE..TRB60,70 |
13632-75010 |
US $9.71 |
||
|
13633
|
13633
13633-75010 Gear, Balanceshaft Driven, No.2[01.2017 -] 2TRFE..TRB60,70 |
13633-75010 |
from US $31.16 |
||
|
13635
|
13635
13635-75010 Spacer, Balanceshaft Thrust[01.2017 -] 2TRFE..TRB60,70 |
13635-75010 |
from US $2.48 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9010508323
|
9010508323
90105-08323 BOLT WASHER BASED |
90105-08323 |
US $0.58 |
||
|
9028103001
|
9028103001
90281-03001 KEY SLIDING |
90281-03001 |
from US $0.17 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.28 |
||
