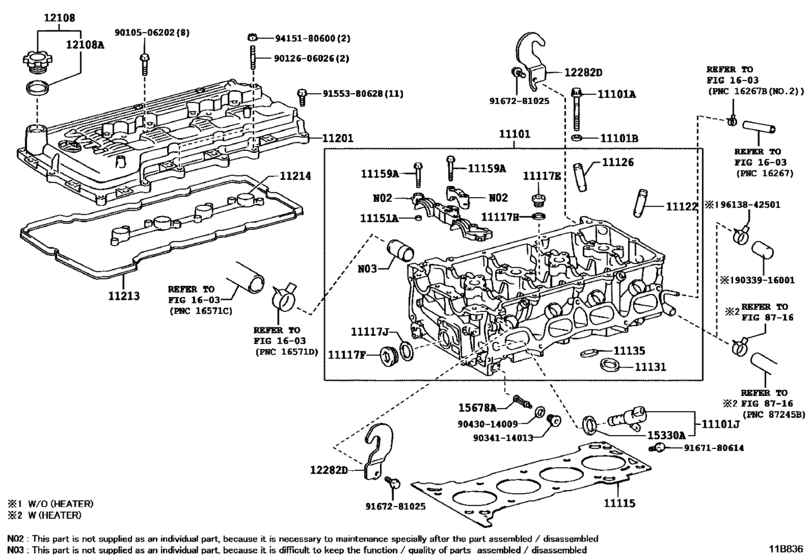

Cylinder Head ([01.2017 - ] (1701- )2TRFE) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-75201
Head Sub-Assy, Cylinder
[01.2017 -] 2TRFE..TRB60,70 |
11101-75201 |
— | ||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[01.2017 -] 2TRFE..TRB60,70 |
90910-02187 |
from US $3.84 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[01.2017 -] 2TRFE..TRB60,70 |
90201-11034 |
from US $0.94 |
||
|
11101J
|
11101J
15330-75030 Valve Assy, Camshaft Timing Oil Control[01.2017 -] 2TRFE..TRB60,70 |
15330-75030 |
from US $60.96 |
||
|
11115
|
11115
11115-75052 Gasket, Cylinder Head[01.2017 -] 2TRFE..TRB60,70 |
11115-75052 |
from US $67.70 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[01.2017 -] 2TRFE..TRB60,70 |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90341-32002 Plug, W/head Straight Screw, No.2[01.2017 -] 2TRFE..TRB60,70 |
90341-32002 |
US $4.89 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[01.2017 -] 2TRFE..TRB60,70 |
90430-20004 |
from US $0.99 |
||
|
11117J
|
11117J
90430-32004 Gasket(For Cylinder Head Screw Plug)[01.2017 -] 2TRFE..TRB60,70 |
90430-32004 |
US $0.93 |
||
|
11122
|
11122
11122-75020 Bush, Intake Valve Guide[01.2017 -] 2TRFE..TRB60,70 STD |
11122-75020 |
from US $8.74 |
||
|
11122
|
11122
11123-75020 Bush, Intake Valve Guide[01.2017 -] 2TRFE..TRB60,70 O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11126
|
11126
11122-75020 Bush, Intake Valve Guide[01.2017 -] 2TRFE..TRB60,70 STD |
11122-75020 |
from US $8.74 |
||
|
11126
|
11126
11123-75020 Bush, Intake Valve Guide[01.2017 -] 2TRFE..TRB60,70 O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11131
|
11131
11131-75081 Seat, Intake Valve[01.2017 -] 2TRFE..TRB60,70 STD |
11131-75081 |
US $9.46 |
||
|
11131
|
11131
11132-75081 Seat, Intake Valve[01.2017 -] 2TRFE..TRB60,70 O/S 0.03 |
11132-75081 |
US $9.46 |
||
|
11135
|
11135
11135-75100 Seat, Exhaust Valve[01.2017 -] 2TRFE..TRB60,70 STD |
11135-75100 |
US $10.77 |
||
|
11135
|
11135
11136-75100 Seat, Exhaust Valve[01.2017 -] 2TRFE..TRB60,70 O/S 0.03 |
11136-75100 |
US $11.53 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[01.2017 -] 2TRFE..TRB60,70 L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)[01.2017 -] 2TRFE..TRB60,70 |
90119-07013 |
US $1.31 |
||
|
11201
|
11201
11201-75073 Cover Sub-Assy, Cylinder Head[01.2017 -] 2TRFE..TRB60,70 |
11201-75073 |
US $252.21 |
||
|
11213
|
11213
11213-75041 Gasket, Cylinder Head Cover[01.2017 -] 2TRFE..TRB60,70 |
11213-75041 |
from US $15.35 |
||
|
11214
|
11214
11214-75012 Gasket, Cylinder Head Cover, No.2[01.2017 -] 2TRFE..TRB60,70 |
11214-75012 |
from US $11.08 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.2017 -] 2TRFE..TRB60,70; 1HZ..HZB70..GEN |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[01.2017 -] 2TRFE..TRB60,70; 1HZ..HZB70..GEN |
90430-37004 |
from US $1.35 |
||
|
12282D
|
12282D
12281-75050 Hanger, Engine, No.1[01.2017 -] 2TRFE..TRB60,70 |
12281-75050 |
US $17.78 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[01.2017 -] 2TRFE..TRB60,70 |
90099-14137 |
from US $2.22 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[01.2017 -] 2TRFE..TRB60,70 |
15678-21010 |
from US $5.34 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.88 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.72 |
||
|
9033916001
|
9033916001
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.88 |
||
|
9034114013
|
9034114013
90341-14013 Plug, W/head Taper Screw, No.1 |
90341-14013 |
from US $1.92 |
||
|
9043014009
|
9043014009
90430-14009 Gasket(For Cylinder Head Screw Plug) |
90430-14009 |
from US $1.27 |
||
|
9155380628
|
9155380628
91553-80628 BOLT FLANGE |
91553-80628 |
from US $0.82 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
|
9613842501
|
9613842501
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy) |
96138-42501 |
from US $2.88 |
