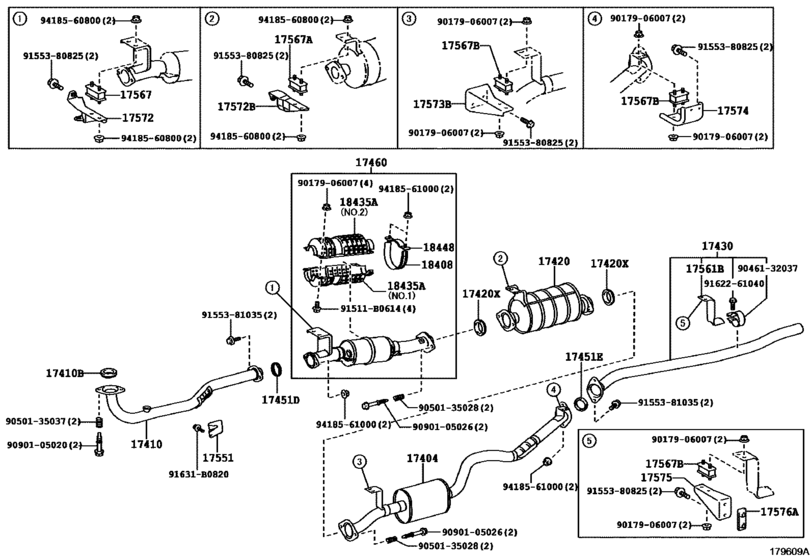

Exhaust Pipe ([01.2017 - ] (1701- )2TRFE..TRB60..GCC) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- TRB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17404
|
17404
17404-58040
Pipe Sub-Assy, Exhaust Forked
[01.2017 -] 2TRFE..TRB60..GCC |
17404-58040 |
— | ||
|
17410
|
17410
17410-75590
Pipe Assy, Exhaust, Front
[01.2017 -] 2TRFE..TRB60,70..GCC |
17410-75590 |
— | ||
|
17410B
|
17410B
17451-22070 Gasket, Exhaust Pipe[01.2017 -] 2TRFE..TRB60,70 |
17451-22070 |
from US $21.66 |
||
|
17420
|
17420
17403-75280
Pipe Assy, Exhaust, Center
[01.2017 -] 2TRFE..TRB60..GCC |
17403-75280 |
— | ||
|
17420X
|
17420X
17451-74040 Gasket, Exhaust Pipe[01.2017 -] 2TRFE..TRB60..GCC |
17451-74040 |
from US $19.29 |
||
|
17430
|
17430
17405-75640
Pipe Assy, Exhaust, Tail
[01.2017 -] 2TRFE..TRB60..GCC |
17405-75640 |
— | ||
|
17451D
|
17451D
90917-06073 Gasket, Exhaust Pipe, Center[01.2017 -] 2TRFE..TRB60,70 |
90917-06073 |
from US $7.20 |
||
|
17451E
|
17451E
90917-06054 Gasket, Exhaust Pipe[01.2017 -] N04C,2TRFE..TRB60,70,XZB70..(02S,20S,22S,30S)..WC; N04C..XZB70..STD..GEN EXHAUST EMISSION CONTROL-EURO 4 |
90917-06054 |
from US $4.23 |
||
|
17460
|
17460
17460-75070
Converter Assy, Catalytic W/pipe
[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC |
17460-75070 |
— | ||
|
17551
|
17551
17551-17011 Insulator, Exhaust Pipe Heat, No.1[01.2017 -] 2TRFE..TRB60,70;14B,1BZFPE,1HZ..BB60,BZB70,HZB70..GEN |
17551-17011 |
from US $6.40 |
||
|
17561B
|
17561B
17561-68010 Bracket, Exhaust Tail Pipe (For Rear)[01.2017 -] 2TRFE..TRB60..GCC |
17561-68010 |
US $6.12 |
||
|
17567
|
17567
17567-75050 Cushion, Exhaust Pipe Support[01.2017 -] 2TRFE..TRB60,70..GCC;N04C..XZB70..STD..GEN |
17567-75050 |
from US $15.33 |
||
|
17567A
|
17567A
17567-75050 Cushion, Exhaust Pipe Support[01.2017 -] 2TRFE..TRB60..GCC |
17567-75050 |
from US $15.33 |
||
|
17567B
|
17567B
17567-17020 Cushion, Exhaust Pipe Center, Rear[01.2017 -] 2TRFE..TRB60..GCC |
17567-17020 |
from US $9.52 |
||
|
17572
|
17572
17572-75220 Bracket, Exhaust Pipe Support, No.2[01.2017 -] 2TRFE..TRB60,70..GCC;N04C,1BZFPE..BZB70,XZB70..STD..GEN |
17572-75220 |
US $16.74 |
||
|
17572B
|
17572B
17572-75260 Bracket, Exhaust Pipe Support, No.2[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC |
17572-75260 |
US $20.82 |
||
|
17573B
|
17573B
17573-75190
Bracket, Exhaust Pipe Support, No.5
[01.2017 -] 2TRFE..TRB60..GCC |
17573-75190 |
— | ||
|
17574
|
17574
17574-75040
Bracket, Exhaust Pipe Support, No.4
[01.2017 -] 2TRFE..TRB60..GCC |
17574-75040 |
— | ||
|
17575
|
17575
17575-75080
Bracket, Exhaust Pipe Support, No.5
[01.2017 -] 2TRFE..TRB60..GCC |
17575-75080 |
— | ||
|
17576A
|
17576A
17576-75040
Bracket, Exhaust Pipe Support, No.6
[01.2017 -] 2TRFE..TRB60..GCC |
17576-75040 |
— | ||
|
18408
|
18408
18408-75010
Band Sub-Assy, Convertor Protector Support
[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC |
18408-75010 |
— | ||
|
18435A
|
18435A
18435-75080
Protector, Monolithic Converter
[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC NO.1:REFER ILLUST. |
18435-75080 |
— | ||
|
18435A
|
18435A
18435-75090
Protector, Monolithic Converter
[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC NO.2:REFER ILLUST. |
18435-75090 |
— | ||
|
18448
|
18448
18438-75020
Bracket, Converter Protector, Center
[01.2017 -] 1BZFPE..BZB70;2TRFE..TRB60,70..GCC |
18438-75020 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046132037
|
9046132037
90461-32037 Clamp No.1, Exhaust Tail Pipe (For Front) |
90461-32037 |
US $14.24 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.37 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
|
9155380825
|
9155380825
91553-80825 New Genuine Part |
91553-80825 |
US $1.76 |
||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.31 |
||
|
9162261040
|
9162261040
91622-61040 Bolt(For Transaxle & Engine Setting) |
91622-61040 |
US $1.92 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.90 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
