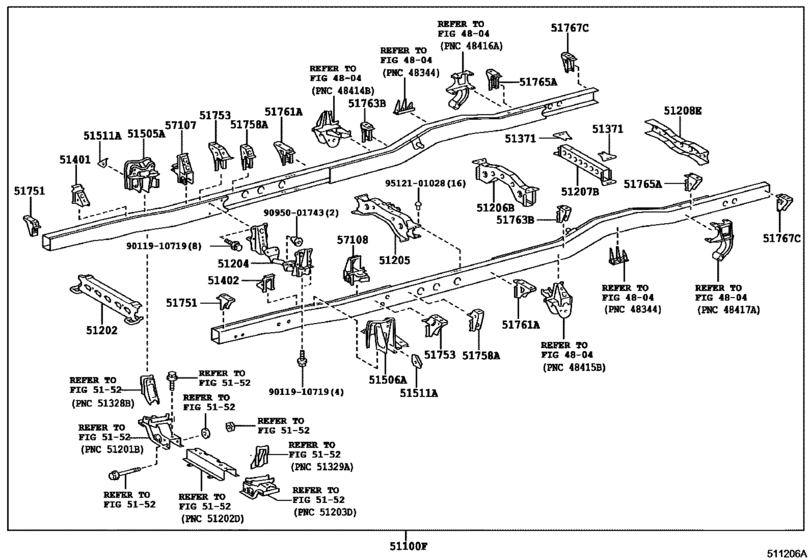

Frame ([08.2004 - ] (0408- )XZB4#) Diagram Toyota COASTER
- Year
- 2004 - 2007
- Sales region
- Japan
- Frame
- XZB40
- grade
- STD
- Roof
- SRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 08.2004
- To
- 08.2007
- Gear Shift Type
- 4FC
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100F
|
51100F
51001-36A10 Frame Sub-Assy[08.2004 - 01.2015] XZB4#..(09S,26S,39S)..(4FC,5F) |
51001-36A10 |
US $3,523.52 |
||
|
51202
|
51202
51201-36150 Crossmember Sub-Assy, Frame, No.1[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51201-36150 |
US $218.40 |
||
|
51204
|
51204
51203-36360 Crossmember Sub-Assy, Frame, No.3[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51203-36360 |
US $264.99 |
||
|
51205
|
51205
51204-36193 Crossmember Sub-Assy, Frame, No.4[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51204-36193 |
from US $352.35 |
||
|
51206B
|
51206B
51206-36090 Crossmember Sub-Assy, Frame, No.6[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51206-36090 |
US $200.93 |
||
|
51207B
|
51207B
51207-36111 Crossmember Sub-Assy, Frame, No.7[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51207-36111 |
US $113.57 |
||
|
51208E
|
51208E
51281-36030 Crossmember Sub-Assy, Frame, No.8[08.2004 - 08.2007] XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F) |
51281-36030 |
US $151.42 |
||
|
51371
|
51371
51371-36070 Gusset, Frame No.7 Crossmember, No.1[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51371-36070 |
US $11.94 |
||
|
51401
|
51401
51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51421-36210 |
US $36.11 |
||
|
51402
|
51402
51421-36210 Bracket Sub-Assy, Engine Front Mounting, Rh[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51421-36210 |
US $36.11 |
||
|
51505A
|
51505A
51505-36030 Support Sub-Assy, Upper Control Arm[08.2004 - 08.2007] XZB4#,50,56..4FC,6F |
51505-36030 |
US $154.34 |
||
|
51506A
|
51506A
51506-36120 Support Sub-Assy, Upper Control Arm, Lh[08.2004 - 08.2007] XZB4#,50,56..4FC,6F |
51506-36120 |
US $154.34 |
||
|
51511A
|
51511A
51511-36080 Seat, Front Spring Support[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51511-36080 |
US $10.63 |
||
|
51751
|
51751
51751-36060 Bracket, Body Support, No.1[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51751-36060 |
US $22.42 |
||
|
51753
|
51753
51753-36051 Bracket, Body Support, No.2[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51753-36051 |
US $41.20 |
||
|
51758A
|
51758A
51758-36020 Bracket, Body Support, No.4 Rh[08.2004 - 08.2007] XZB4#..4FC |
51758-36020 |
US $22.42 |
||
|
51761A
|
51761A
51761-36041 Bracket, Body Support, No.5 Rh[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
51761-36041 |
US $37.27 |
||
|
51763B
|
51763B
51763-36061 Bracket, Body Support, No.6[08.2004 - 08.2007] XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F) |
51763-36061 |
US $20.53 |
||
|
51765A
|
51765A
51765-36051 Bracket, Frame Body Mounting, No.7 Rh[08.2004 - 08.2007] XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F) |
51765-36051 |
US $14.56 |
||
|
51767C
|
51767C
51767-36150 Bracket, Frame Body Mounting, No.8 Rh[08.2004 - 08.2007] XZB4#,56..4FC;XZB50..(LX,STD)..(4FC,6F) |
51767-36150 |
US $14.27 |
||
|
57107
|
57107
57121-36020 Bracket Sub-Assy, Strut Bar, Rh[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
57121-36020 |
US $60.42 |
||
|
57108
|
57108
57122-36020 Bracket Sub-Assy, Strut Bar, Lh[08.2004 - 08.2007] XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F) |
57122-36020 |
US $60.42 |
||
|
9011910719
|
9011910719
90119-10719 BOLT WWASHER |
90119-10719 |
US $3.68 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.91 |
