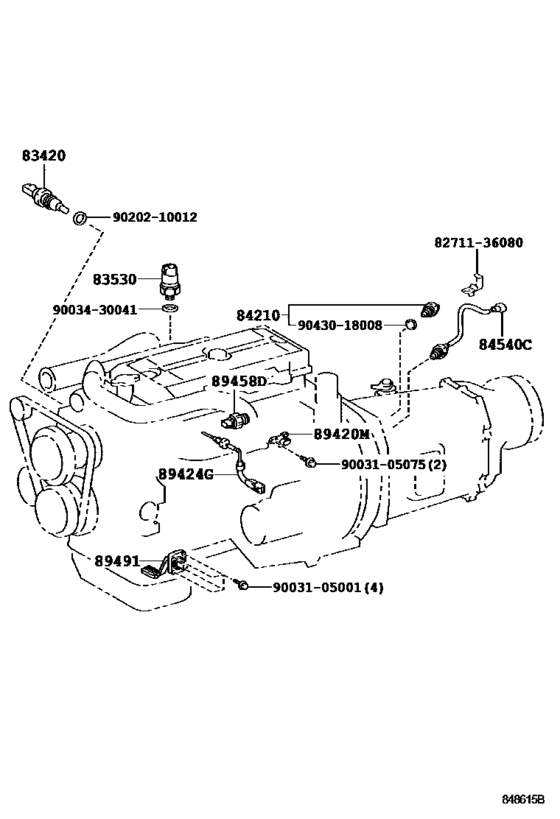

Switch & Relay & Computer ([01.2007 - ] ENGINE & TRANSMISSION (0701- )XZB53) Diagram Toyota COASTER
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- XZB53
- grade
- STD
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2007
- To
- 03.2014
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-37020 Gage Assy, Water Temperature Sender[01.2007 -] XZB53 |
83420-37020 |
from US $31.12 |
||
|
83530
|
83530
83530-37040 Switch Assy, Oil Pressure (For Engine)[01.2007 -] XZB53 |
83530-37040 |
US $16.42 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[10.2003 - 06.2012] BB5#,RZB5#,TRB53,XZB53 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.2003 - 06.2012] BB5#,RZB5#,TRB53,XZB53 |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[06.2012 - 03.2014] TRB53,XZB53 |
84210-52050 |
from US $20.67 |
||
|
84540C
|
84540C
84540-36090 Switch Assy, Neutral (For Exhaust Brake)[01.2007 - 03.2014] XZB53 |
84540-36090 |
from US $108.33 |
||
|
89420M
|
89420M
89421-E0050 Sensor Assy, Air Pressure[08.2011 -] XZB53 |
89421-E0050 |
US $75.24 |
||
|
89424G
|
89424G
89424-E0040 Sensor,inlet Air Temperature[08.2011 -] XZB53 |
89424-E0040 |
US $80.90 |
||
|
89458D
|
89458D
89458-E0030 Sensor, Fuel Pressure[08.2011 -] XZB53 |
89458-E0030 |
US $155.52 |
||
|
89491
|
89491
89491-26111 Sensor, Engine Oil Level[01.2007 -] XZB53 |
89491-26111 |
US $305.76 |
||
| replacement | |||||
|
89491
|
89491
S8346-01580 Sensor, Engine Oil Level[01.2007 -] XZB53 |
S8346-01580 |
US $204.48 |
||
|
8271136080
|
8271136080
82711-36080
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-36080 |
— | ||
|
9003105001
|
9003105001
90031-05001 New Genuine Part |
90031-05001 |
US $2.04 |
||
|
9003105075
|
9003105075
90031-05075 New Genuine Part |
90031-05075 |
US $0.73 |
||
|
9003430041
|
9003430041
90034-30041 New Genuine Part |
90034-30041 |
US $1.60 |
||
|
9020210012
|
9020210012
90202-10012 New Genuine Part |
90202-10012 |
US $1.28 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
