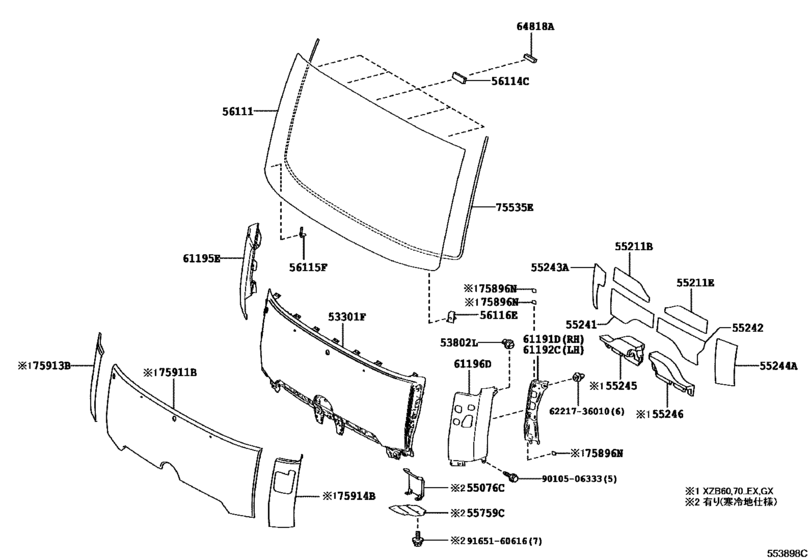

Front Panel & Windshield Glass ([01.2017 - ] (1701- )) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- XZB60
- grade
- LX
- Roof
- HRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 6FC
- Seating Capacity
- 25S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301F
|
53301F
53301-36260 Panel Sub-Assy, Front[01.2017 -] XZB60,70 |
53301-36260 |
US $656.66 |
||
|
53802L
|
53802L
53813-47040 Extension, Front Fender, Lh[01.2017 -] XZB60,70 |
53813-47040 |
US $2.56 |
||
|
55076C
|
55076C
55076-36010 Net Sub-Assy, Air Duct[01.2017 -] XZB60,70 寒冷地仕様 |
55076-36010 |
US $19.51 |
||
|
55211B
|
55211B
55211-36010 Silencer, Front Panel[01.2017 -] XZB60,70 |
55211-36010 |
US $4 |
||
|
55211E
|
55211E
55212-36010 Silencer, Front Panel[01.2017 -] XZB60,70 |
55212-36010 |
US $4 |
||
|
55241
|
55241
55241-36040 Silencer, Front Panel Side, No.1 Rh[01.2017 -] XZB60,70 |
55241-36040 |
US $6.56 |
||
|
55242
|
55242
55242-36050 Silencer, Front Panel Side, No.1 Lh[01.2017 -] XZB60,70 |
55242-36050 |
US $6.08 |
||
|
55243A
|
55243A
55243-36040 Silencer, Front Panel Side, No.2 Rh[01.2017 -] XZB60,70 |
55243-36040 |
US $3.84 |
||
|
55244A
|
55244A
55244-36040 Silencer, Front Panel Side, No.2 Lh[01.2017 -] XZB60,70 |
55244-36040 |
US $4.96 |
||
|
55759C
|
55759C
55759-36030 Cover, Heater Air Duct[01.2017 -] XZB60,70 寒冷地仕様 |
55759-36030 |
US $18.20 |
||
|
56111
|
56111
56111-36130
Glass, Windshield
[01.2017 -] XZB60,70..LX,S |
56111-36130 |
— | ||
|
56114C
|
56114C
56114-36010 Retainer, Windshield Glass[01.2017 -] XZB60,70 |
56114-36010 |
US $1.28 |
||
|
56115F
|
56115F
56115-36010 Stopper, Windshield Glass[01.2017 -] XZB60,70 |
56115-36010 |
US $5.28 |
||
|
56116E
|
56116E
56116-36010 Stopper, Windshield Glass, No.2[01.2017 -] XZB60,70 |
56116-36010 |
US $4.37 |
||
|
61191D
|
61191D
61191-36040 Plate, Front Pillar End Cover, Rh[01.2017 -] XZB60,70 |
61191-36040 |
US $25.33 |
||
|
61192C
|
61192C
61191-36050 Plate, Front Pillar End Cover, Lh[01.2017 -] XZB60,70 |
61191-36050 |
US $25.33 |
||
|
61195E
|
61195E
61195-36020 Cover, Front Pillar End, Rh[01.2017 -] XZB60,70 |
61195-36020 |
US $56.64 |
||
|
61196D
|
61196D
61196-36010 Cover, Front Pillar End, Lh[01.2017 -] XZB60,70 |
61196-36010 |
US $53 |
||
|
64818A
|
64818A
64819-36010 Spacer, Back Window Glass[01.2017 -] XZB60,70 |
64819-36010 |
US $1.28 |
||
|
75535E
|
75535E
75535-36010 Moulding, Windshield, Outside Lower[01.2017 -] XZB60,70 |
75535-36010 |
US $36.18 |
||
|
6221736010
|
6221736010
62217-36010 Cover, Rail Roof Side, Inner Center |
62217-36010 |
from US $1.31 |
||
|
9010506333
|
9010506333
90105-06333 BOLT FLANGE |
90105-06333 |
from US $0.55 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
