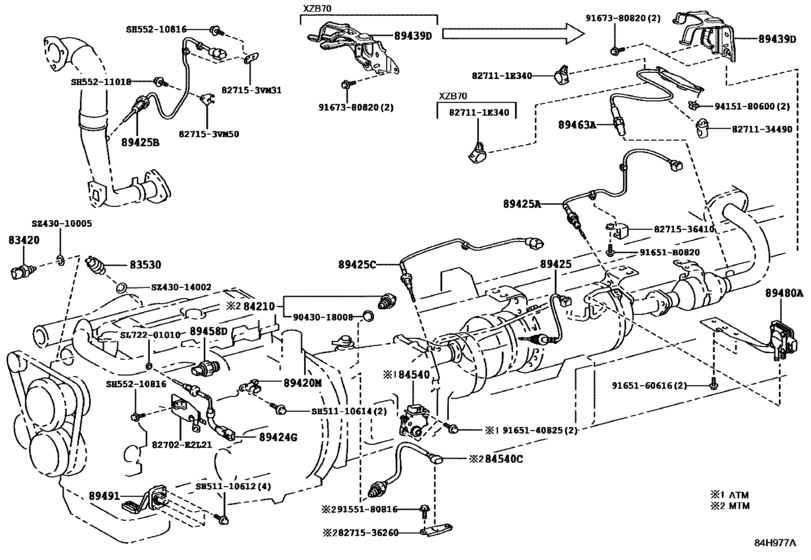

Switch & Relay & Computer ([01.2017 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1701- )) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- XZB60
- grade
- LX
- Roof
- HRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 6FC
- Seating Capacity
- 25S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
S8342-01250 Gage Assy, Water Temperature Sender[01.2017 -] XZB60,70 |
S8342-01250 |
from US $32.14 |
||
|
83530
|
83530
83530-E0220
Switch Assy, Oil Pressure (For Engine)
[01.2017 -] XZB60,70 |
83530-E0220 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-E0250 SWITCH ASSY OIL[01.2017 -] XZB60,70 |
83530-E0250 |
US $29.18 |
||
|
84540
|
84540
84540-37050 Switch Assy, Neutral Start[01.2017 -] XZB60,70..6FC |
84540-37050 |
US $112.48 |
||
|
89420M
|
89420M
89421-E0050 Sensor Assy, Air Pressure[01.2017 -] XZB60,70 |
89421-E0050 |
US $75.24 |
||
|
89424G
|
89424G
89424-E0040 Sensor,inlet Air Temperature[01.2017 -] XZB60,70 |
89424-E0040 |
US $80.90 |
||
|
89425
|
89425
89425-36110 Sensor, Exhaust Gas Temperature[01.2017 -] XZB60,70 |
89425-36110 |
US $200.16 |
||
|
89425A
|
89425A
89425-36121 Sensor, Exhaust Gas Temperature, No.2[01.2017 -] XZB60,70 |
89425-36121 |
US $200.16 |
||
|
89425B
|
89425B
89425-E0210 Sensor, Exhaust Gas Temperature, No.3[01.2017 -] XZB60,70 |
89425-E0210 |
US $88.80 |
||
|
89425C
|
89425C
89425-36060 Sensor, Exhaust Gas Temperature, No.4[01.2017 -] XZB60,70 |
89425-36060 |
US $181.44 |
||
|
89439D
|
89439D
89439-36070 Bracket, Sensor, No.1[01.2017 -] XZB60 |
89439-36070 |
US $24.61 |
||
|
89458D
|
89458D
89458-E0030 Sensor, Fuel Pressure[01.2017 -] XZB60,70 |
89458-E0030 |
US $155.52 |
||
|
89463A
|
89463A
89463-36010 Sensor, Nitrogen Oxides[01.2017 -] XZB60,70 |
89463-36010 |
US $932.40 |
||
|
89480A
|
89480A
89480-36030 Sensor Assy, Differential Pressure[01.2017 -] XZB60,70 |
89480-36030 |
US $242.86 |
||
|
89491
|
89491
S8346-01580 Sensor, Engine Oil Level[01.2017 -] XZB60,70 |
S8346-01580 |
US $204.48 |
||
|
82702E2L21
|
82702E2L21
82702-E2L21 Bracket Sub-assy, Wiring Harness |
82702-E2L21 |
US $14.41 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
827111E340
|
827111E340
82711-1E340 Clamp, Hood Lock Control Cable |
82711-1E340 |
from US $1.31 |
||
|
827153VM31
|
827153VM31
82715-3VM31 Bracket,wiring Harness Clamp |
82715-3VM31 |
US $3.35 |
||
|
827153VM50
|
827153VM50
82715-3VM50 Bracket,wiring Harness Clamp |
82715-3VM50 |
US $4.80 |
||
|
8271134490
|
8271134490
82711-34490 Wire, Fuse To Fuse(for Combustion Heater) |
82711-34490 |
US $1.76 |
||
|
8271536260
|
8271536260
82715-36260
Bracket,wiring Harness Clamp
|
82715-36260 |
— | ||
|
8271536410
|
8271536410
82715-36410 Bracket,wiring Harness Clamp |
82715-36410 |
US $3.93 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.80 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
|
SH51110612
|
SH51110612
SH511-10612 New Genuine Part |
SH511-10612 |
US $6.40 |
||
|
SH51110614
|
SH51110614
SH511-10614
New Genuine Part
|
SH511-10614 |
— | ||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $5.60 |
||
|
SH55211018
|
SH55211018
SH552-11018 New Genuine Part |
SH552-11018 |
US $3.06 |
||
|
SL72201010
|
SL72201010
SL722-01010 Gasket(For Turbo Oil Inlet Pipe) |
SL722-01010 |
from US $0.48 |
||
|
SZ43010005
|
SZ43010005
SZ430-10005 NR WASHERSOFT 300 500S |
SZ430-10005 |
US $3.36 |
||
|
SZ43014002
|
SZ43014002
SZ430-14002 New Genuine Part |
SZ430-14002 |
US $4.32 |
||
