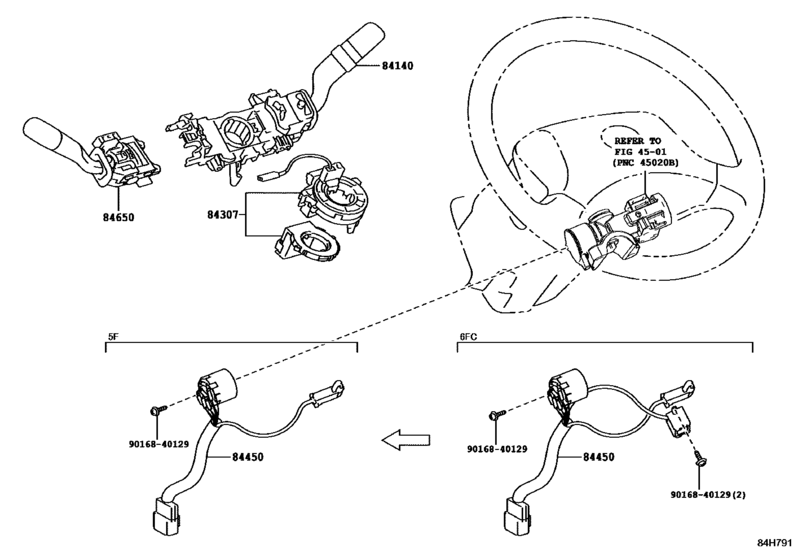

Switch & Relay & Computer ([01.2017 - ] ｽﾃｱﾘﾝｸﾞ (1701- )) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- XZB60
- grade
- LX
- Roof
- HRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 6FC
- Seating Capacity
- 25S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-37131 Switch Assy, Headlamp Dimmer[01.2017 -] XZB60,70 |
84140-37131 |
US $117.94 |
||
|
84140
|
84140
84140-37151 Switch Assy, Headlamp Dimmer[01.2017 -] XZB60,70 リヤフォグランプ−有り |
84140-37151 |
US $90.27 |
||
|
84307
|
84307
84307-36030 Cable Sub-Assy, Spiral W/sensor[01.2017 -] XZB60,70 |
84307-36030 |
from US $342.16 |
||
|
84450
|
84450
84450-36170 Switch Assy, Ignition Or Starter[01.2017 -] XZB60,70..6FC |
84450-36170 |
US $47.17 |
||
|
84650
|
84650
84652-37300 Switch Assy, Windshield Wiper[01.2017 -] XZB60,70..09S,24S,39S,49S; XZB60,70..25S,29S ラゲージ ＆ バックドア−＊ＤＳＢＤ |
84652-37300 |
US $69.92 |
||
|
84650
|
84650
84652-37310 Switch Assy, Windshield Wiper[01.2017 -] XZB60,70..25S,29S |
84652-37310 |
US $81.54 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
