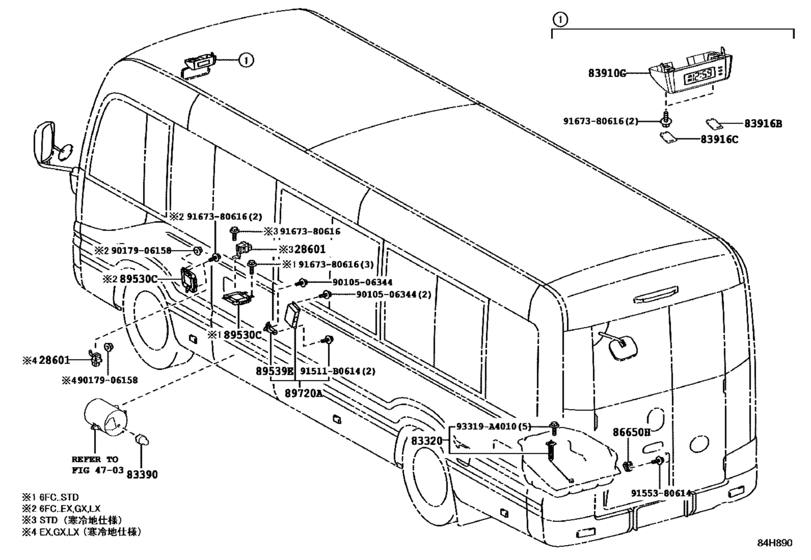

Switch & Relay & Computer ([01.2017 - ] ﾙｰﾌ & ﾌﾛｱ (1701- )) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- XZB60
- grade
- LX
- Roof
- HRF
- ENGINE
- N04C
- TRANSMISSION
- ATM
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 6FC
- Seating Capacity
- 25S
- Vehicle Model
- Coaster
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28601
|
28601
28601-17010 Glow Sub-Assy, Plug Relay Set[01.2017 -] N04C..XZB60,70 寒冷地仕様 |
28601-17010 |
from US $53.84 |
||
|
83320
|
83320
83320-80525 Gage Assy, Fuel Sender[01.2017 -] XZB60,70 |
83320-80525 |
US $92.60 |
||
|
83390
|
83390
83390-36020 Switch Assy, Vacuum Warning[01.2017 -] XZB60,70 |
83390-36020 |
US $32.27 |
||
|
83910G
|
83910G
83910-36080-B0 Clock Assy[01.2017 -] XZB60,70..EX,GX,LX LT.GRAY,TRIM1#; XZB60,70..S クロック−有り,LT.GRAY,TRIM1# |
83910-36080-B0 |
US $302.27 |
||
|
83916B
|
83916B
83916-36030-B0 Clip, Clock, No.1[01.2017 -] XZB60,70..EX,GX,LX LT.GRAY,TRIM1#; XZB60,70..S クロック−有り,LT.GRAY,TRIM1# |
83916-36030-B0 |
US $2.80 |
||
|
83916C
|
83916C
83916-36040-B0 Clip, Clock, No.2[01.2017 -] XZB60,70..EX,GX,LX LT.GRAY,TRIM1#; XZB60,70..S クロック−有り,LT.GRAY,TRIM1# |
83916-36040-B0 |
US $2.80 |
||
|
86650H
|
86650H
86650-36210 Buzzer Assy, Back[01.2017 -] XZB60,70 |
86650-36210 |
US $46.74 |
||
|
89530C
|
89530C
89530-36310 Computer Assy, Transmission Control[01.2017 -] XZB60,70..6FC..(GX,LX)..DCR |
89530-36310 |
US $910 |
||
|
89539E
|
89539E
89539-36010 Bracket, Computer[01.2017 -] XZB60,70..24S,25S,29S センタドア−グライド式（自動） ＆ 有り（電動格納ステップ） |
89539-36010 |
US $7.28 |
||
|
89720A
|
89720A
89720-36050 Computer Assy, Side Auto Step Controller[01.2017 -] XZB60,70..24S,25S,29S センタドア−グライド式（自動） ＆ 有り（電動格納ステップ） |
89720-36050 |
US $886.70 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.72 |
||
|
9010506344
|
9010506344
90105-06344 BOLT FLANGE |
90105-06344 |
US $0.96 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
