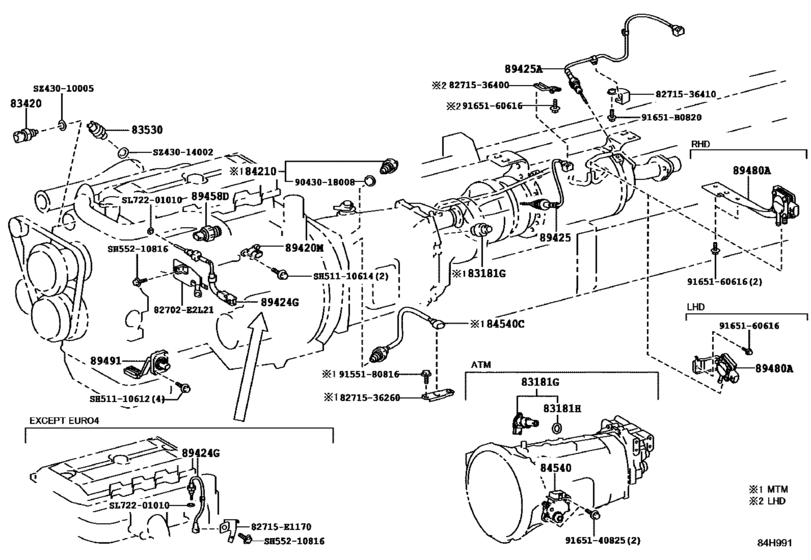

Switch & Relay & Computer ([01.2017 - ] ENGINE & TRANSMISSION (1701- )XZB60,70) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- XZB60
- grade
- STD
- Roof
- HRF
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-36030 Sensor, Speedometer[01.2017 -] XZB60,70..5F..(ARL,GEN); XZB70..STD..GEN ABS-WITH(ABS & VSC) |
83181-36030 |
US $164.24 |
||
|
83420
|
83420
S8342-01250 Gage Assy, Water Temperature Sender[01.2017 - 12.2017] XZB60 |
S8342-01250 |
US $46.36 |
||
|
83530
|
83530
83530-E0220
Switch Assy, Oil Pressure (For Engine)
[01.2017 - 12.2017] XZB60 |
83530-E0220 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-E0250 SWITCH ASSY OIL[01.2017 - 12.2017] XZB60 |
83530-E0250 |
US $29.18 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..5F..(ARL,GEN,TAIW) |
84210-52050 |
from US $20.67 |
||
|
84540C
|
84540C
84540-36100 Switch Assy, Neutral Start[01.2017 -] XZB60,70..5F |
84540-36100 |
US $92.40 |
||
|
89424G
|
89424G
89424-E0060
Sensor,inlet Air Temperature
[01.2017 - 12.2017] XZB60 |
89424-E0060 |
— | ||
|
89425
|
89425
89425-36090 Sensor, Exhaust Gas Temperature[01.2017 - 12.2017] XZB60 |
89425-36090 |
US $200.16 |
||
|
89425A
|
89425A
89425-36101 Sensor, Exhaust Gas Temperature, No.2[01.2017 - 12.2017] XZB60 |
89425-36101 |
US $181.71 |
||
|
89458D
|
89458D
S2276-21080
Sensor, Fuel Pressure
[01.2017 - 12.2017] XZB60 |
S2276-21080 |
— | ||
|
89480A
|
89480A
89480-36030 Sensor Assy, Differential Pressure[01.2017 -] XZB60,70..RHD |
89480-36030 |
US $242.86 |
||
|
89491
|
89491
S8346-01580 Sensor, Engine Oil Level[01.2017 - 12.2017] XZB60 |
S8346-01580 |
US $204.48 |
||
|
82702E2L21
|
82702E2L21
82702-E2L21 Bracket Sub-assy, Wiring Harness |
82702-E2L21 |
US $14.41 |
||
|
82715E1170
|
82715E1170
82715-E1170
Bracket,wiring Harness Clamp
|
82715-E1170 |
— | ||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
8271536260
|
8271536260
82715-36260
Bracket,wiring Harness Clamp
|
82715-36260 |
— | ||
|
8271536400
|
8271536400
82715-36400
Bracket,wiring Harness Clamp
|
82715-36400 |
— | ||
|
8271536410
|
8271536410
82715-36410 Bracket,wiring Harness Clamp |
82715-36410 |
US $3.93 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.80 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
SH51110612
|
SH51110612
SH511-10612 New Genuine Part |
SH511-10612 |
US $6.40 |
||
|
SH51110614
|
SH51110614
SH511-10614
New Genuine Part
|
SH511-10614 |
— | ||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $5.60 |
||
|
SL72201010
|
SL72201010
SL722-01010 Gasket(For Turbo Oil Inlet Pipe) |
SL722-01010 |
US $0.48 |
||
|
SZ43010005
|
SZ43010005
SZ430-10005 NR WASHERSOFT 300 500S |
SZ430-10005 |
US $3.36 |
||
|
SZ43014002
|
SZ43014002
SZ430-14002 New Genuine Part |
SZ430-14002 |
US $4.32 |
||
