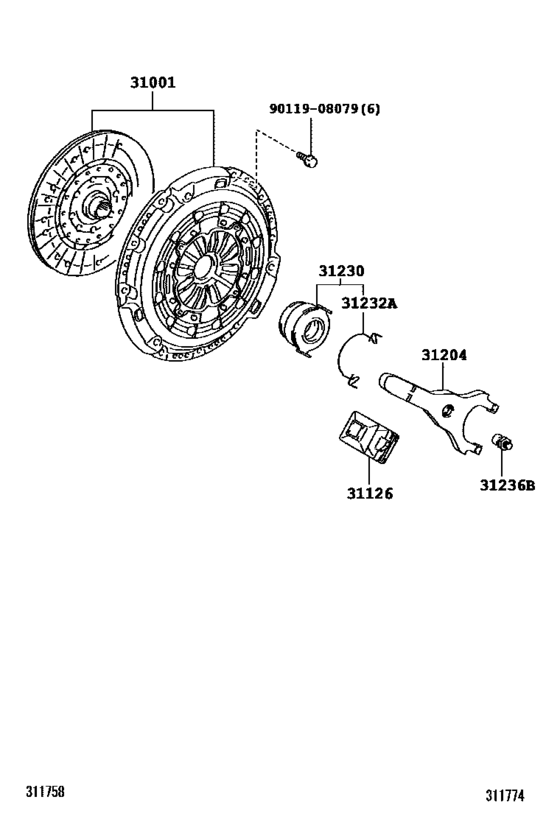

Clutch & Release Fork ([11.2006 - ] (0611- )ADE150) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31001
|
31001
31001-05040
Clutch Set, Cover & Disc
[11.2006 - 01.2009] ADE150 |
31001-05040 |
— | ||
| replacement | |||||
|
31001
|
31001
31001-05170 Clutch Set, Cover & Disc[11.2006 - 01.2009] ADE150 |
31001-05170 |
US $461.80 |
||
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[11.2006 - 01.2009] ADE150 |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20140
Fork Sub-Assy, Clutch Release
[11.2006 - 01.2009] ADE150 |
31204-20140 |
— | ||
|
31230
|
31230
31230-20200 Bearing Assy, Clutch ReleaseCLUTCH RELEASE [11.2006 - 01.2009] ADE150 |
31230-20200 |
US $24.45 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[11.2006 - 01.2009] ADE150 |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[11.2006 - 01.2009] ADE150 |
31236-20080 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
