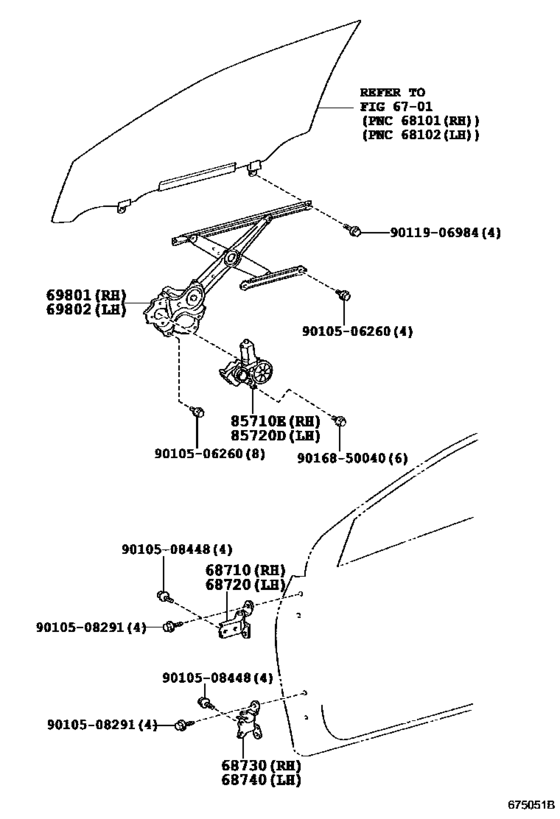

Front Door Window Regulator & Hinge ([11.2006 - ] (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[11.2006 - 01.2009] ADE150 |
68720-12151 |
US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[11.2006 - 01.2009] ADE150 |
68730-12120 |
from US $34.05 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[11.2006 - 01.2009] ADE150 |
68740-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-12220 Regulator Sub-Assy, Front Door Window, Rh[11.2006 - 01.2009] ADE150 |
69801-12220 |
US $93.24 |
||
|
69802
|
69802
69802-12220 Regulator Sub-Assy, Front Door Window, Lh[11.2006 - 01.2009] ADE150 |
69802-12220 |
US $93.24 |
||
|
85710E
|
85710E
85710-35180 Motor Assy, Power Window Regulator, Rh[11.2006 - 01.2009] ADE150..LHD |
85710-35180 |
from US $207.92 |
||
|
85720D
|
85720D
85720-12350 Motor Assy, Power Window Regulator, Lh[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD |
85720-12350 |
US $448.45 |
||
|
85720D
|
85720D
85720-12351 Motor Assy, Power Window Regulator, Lh[10.2007 - 01.2009] ADE150..LHD |
85720-12351 |
US $423.81 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
