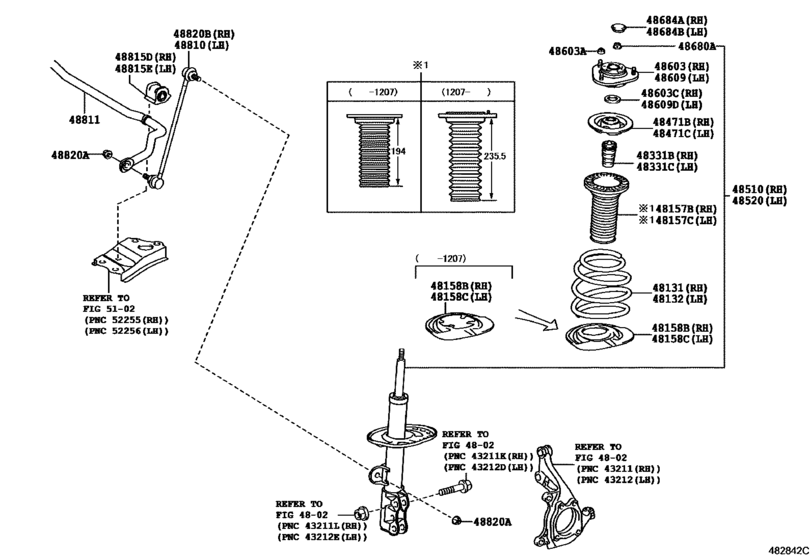

Front Spring & Shock Absorber ([11.2006 - ] (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-12A50
Spring, Front Coil, Rh
[11.2006 - 01.2009] ADE150 |
48131-12A50 |
— | ||
|
48131
|
48131
48131-12B50
Spring, Front Coil, Rh
[11.2006 - 01.2009] ADE150 ROUGH ROAD AREA SPEC |
48131-12B50 |
— | ||
|
48132
|
48132
48131-12A50
Spring, Front Coil, Rh
[11.2006 - 01.2009] ADE150 |
48131-12A50 |
— | ||
|
48132
|
48132
48131-12B50
Spring, Front Coil, Rh
[11.2006 - 01.2009] ADE150 ROUGH ROAD AREA SPEC |
48131-12B50 |
— | ||
|
48157B
|
48157B
48157-42030 Insulator, Front Coil Spring, Upper[11.2006 - 01.2009] ADE150 |
48157-42030 |
from US $17.82 |
||
|
48157C
|
48157C
48157-42030 Insulator, Front Coil Spring, Upper[11.2006 - 01.2009] ADE150 |
48157-42030 |
from US $17.82 |
||
|
48158B
|
48158B
48158-12040 Insulator, Front Coil Spring, Lower[11.2006 - 01.2009] ADE150 |
48158-12040 |
from US $11.76 |
||
|
48158C
|
48158C
48158-12040 Insulator, Front Coil Spring, Lower[11.2006 - 01.2009] ADE150 |
48158-12040 |
from US $11.76 |
||
|
48331B
|
48331B
48331-12220 Bumper, Front Spring[11.2006 - 01.2009] ADE150 |
48331-12220 |
from US $9.30 |
||
|
48331C
|
48331C
48331-12220 Bumper, Front Spring[11.2006 - 01.2009] ADE150 |
48331-12220 |
from US $9.30 |
||
|
48471B
|
48471B
48044-42010 Seat, Front Coil Spring, Upper[11.2006 - 01.2009] ADE150 |
48044-42010 |
from US $15.35 |
||
|
48471C
|
48471C
48044-42010 Seat, Front Coil Spring, Upper[11.2006 - 01.2009] ADE150 |
48044-42010 |
from US $15.35 |
||
|
48510
|
48510
48510-80332
Absorber Assy, Shock, Front Rh
[11.2006 - 03.2008] ADE150 MARK 48510-12B70 |
48510-80332 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80459
Absorber Assy, Shock, Front Rh
[11.2006 - 03.2008] ADE150 MARK 48510-12B70 |
48510-80459 |
— | ||
|
48510
|
48510
48510-80350
Absorber Assy, Shock, Front Rh
[11.2006 - 03.2008] ADE150 MARK 48510-12C50,ROUGH ROAD AREA SPEC |
48510-80350 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80461
Absorber Assy, Shock, Front Rh
[11.2006 - 03.2008] ADE150 MARK 48510-12C50,ROUGH ROAD AREA SPEC |
48510-80461 |
— | ||
|
48510
|
48510
48510-80459
Absorber Assy, Shock, Front Rh
[03.2008 - 01.2009] ADE150 MARK 48510-12B71 |
48510-80459 |
— | ||
|
48510
|
48510
48510-80461
Absorber Assy, Shock, Front Rh
[03.2008 - 01.2009] ADE150 MARK 48510-12C51,ROUGH ROAD AREA SPEC |
48510-80461 |
— | ||
|
48520
|
48520
48520-80106
Absorber Assy, Shock, Front Lh
[11.2006 - 03.2008] ADE150 MARK 48520-12A70 |
48520-80106 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80202 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [11.2006 - 03.2008] ADE150 MARK 48520-12A70 |
48520-80202 |
US $276.64 |
||
|
48520
|
48520
48520-80119
Absorber Assy, Shock, Front Lh
[11.2006 - 03.2008] ADE150 MARK 48520-12B50,ROUGH ROAD AREA SPEC |
48520-80119 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-80204
Absorber Assy, Shock, Front Lh
[11.2006 - 03.2008] ADE150 MARK 48520-12B50,ROUGH ROAD AREA SPEC |
48520-80204 |
— | ||
|
48520
|
48520
48520-80202 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [03.2008 - 01.2009] ADE150 MARK 48520-12A71 |
48520-80202 |
US $276.64 |
||
|
48520
|
48520
48520-80204
Absorber Assy, Shock, Front Lh
[03.2008 - 01.2009] ADE150 MARK 48520-12B51,ROUGH ROAD AREA SPEC |
48520-80204 |
— | ||
|
48603
|
48603
48609-12510
Support Sub-Assy, Front Suspension, Rh
[11.2006 - 01.2009] ADE150 |
48609-12510 |
— | ||
| replacement | |||||
|
48603
|
48603
48609-12580 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [11.2006 - 01.2009] ADE150 |
48609-12580 |
from US $71.62 |
||
|
48603A
|
48603A
90178-10030 Nut(For Front Suspension Support)[11.2006 - 01.2009] ADE150 |
90178-10030 |
from US $0.92 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[11.2006 - 01.2009] ADE150 |
90303-22002 |
from US $3.20 |
||
|
48609
|
48609
48609-12510
Support Sub-Assy, Front Suspension, Rh
[11.2006 - 01.2009] ADE150 |
48609-12510 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-12580 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [11.2006 - 01.2009] ADE150 |
48609-12580 |
from US $71.62 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[11.2006 - 01.2009] ADE150 |
90303-22002 |
from US $3.20 |
||
|
48680A
|
48680A
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[11.2006 - 01.2009] ADE150 |
90179-14015 |
from US $1.09 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[11.2006 - 01.2009] ADE150 |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[11.2006 - 01.2009] ADE150 |
48684-52010 |
from US $9.60 |
||
|
48810
|
48810
48820-42030 Link Assy, Front Stabilizer[11.2006 - 01.2009] ADE150 |
48820-42030 |
from US $53.92 |
||
|
48811
|
48811
48811-12A10 Bar, Stabilizer, Front[11.2006 - 01.2009] ADE150 |
48811-12A10 |
US $88.82 |
||
|
48815D
|
48815D
48815-12390 Bush, Front Stabilizer Bar, No.1[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
48815-12390 |
from US $18.35 |
||
|
48815E
|
48815E
48815-12370 Bush, Front Stabilizer Bar, No.1[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
48815-12370 |
from US $18.47 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[11.2006 - 01.2009] ADE150 |
90179-12151 |
from US $0.94 |
||
|
48820B
|
48820B
48820-42030 Link Assy, Front Stabilizer[11.2006 - 01.2009] ADE150 |
48820-42030 |
from US $53.92 |
||
