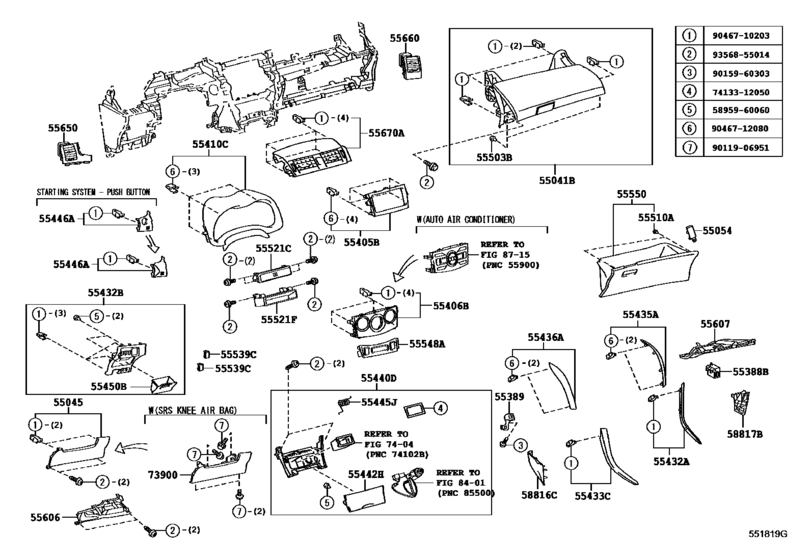

Instrument Panel & Glove Compartment ([11.2006 - 04.2010] (0611-1004)LHD) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55041B
|
55041B
55041-12050-B0
Door Sub-Assy, Instrument Panel Box, No.1
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55041-12050-B0 |
— | ||
|
55041B
|
55041B
55041-12050-E0
Door Sub-Assy, Instrument Panel Box, No.1
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55041-12050-E0 |
— | ||
|
55045
|
55045
55045-12380-B0 Panel Sub-Assy, Instrument Panel Finish, LowerINSTRUMENT PANEL FINISH, LOWER [11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1#; ADE150..LHD..DCR SRS AIR BAG-WITH(DRIVER&PASSENGER),DK.GRAY,TRIM1#; ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE),DK.GRAY,TRIM1# |
55045-12380-B0 |
US $108.67 |
||
|
55045
|
55045
55045-12380-E0
Panel Sub-Assy, Instrument Panel Finish, Lower
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4#; ADE150..LHD..DCR SRS AIR BAG-WITH(DRIVER&PASSENGER),GREGE,TRIM4#; ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE),GREGE,TRIM4# |
55045-12380-E0 |
— | ||
|
55054
|
55054
55054-12030 Stopper Sub-Assy, Glove Compartment Door[11.2006 - 01.2009] ADE150 |
55054-12030 |
from US $10.90 |
||
|
55388B
|
55388B
55388-42010 Bracket, Console Mounting, RhFINISH PANEL MOUNTING, NO.2 [11.2006 - 01.2009] ADE150..LHD |
55388-42010 |
US $2.68 |
||
|
55389
|
55389
55389-12040 Bracket, Console Mounting, LhFINISH PANEL MOUNTING, NO.1 [11.2006 - 01.2009] ADE150..LHD |
55389-12040 |
US $4.95 |
||
|
55406B
|
55406B
55406-12440 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[11.2006 - 01.2009] ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N; ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N AUTO AIR CONDITIONER(SINGLE MODE) |
55406-12440 |
US $60.28 |
||
|
55410C
|
55410C
55410-12A20-B0 Panel Assy, Instrument Cluster FinishINSTRUMENT CLUSTER FINISH [11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55410-12A20-B0 |
US $80.08 |
||
|
55410C
|
55410C
55410-12A20-E0
Panel Assy, Instrument Cluster Finish
[11.2006 - 01.2009] ADE150..LHD ASH BROWN,TRIM4# |
55410-12A20-E0 |
— | ||
|
55432A
|
55432A
55432-12480 Panel, Instrument Panel Finish, Lower Rh[11.2006 - 01.2009] ADE150 |
55432-12480 |
US $73.56 |
||
|
55432B
|
55432B
55480-12010-B0
Panel, Instrument Panel Finish, Lower
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55480-12010-B0 |
— | ||
|
55432B
|
55432B
55480-12010-E0
Panel, Instrument Panel Finish, Lower
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55480-12010-E0 |
— | ||
|
55433C
|
55433C
55433-12220 Panel, Instrument Panel Finish, Lower Lh[11.2006 - 01.2009] ADE150 |
55433-12220 |
US $73.56 |
||
|
55435A
|
55435A
55435-12120 Panel, Instrument Panel Finish, End Rh[11.2006 - 01.2009] ADE150 |
55435-12120 |
US $59.58 |
||
|
55436A
|
55436A
55436-12090 Panel, Instrument Panel Finish, End Lh[11.2006 - 01.2009] ADE150 |
55436-12090 |
US $59.58 |
||
|
55440D
|
55440D
55440-12100
Box Assy, Instrument Panel
[11.2006 - 01.2009] ADE150..LHD |
55440-12100 |
— | ||
|
55442H
|
55442H
55442-12140
Door, Instrument Panel
[11.2006 - 01.2009] ADE150..LHD |
55442-12140 |
— | ||
|
55445J
|
55445J
55445-12130 Spring, Instrument Panel BoxINSTRUMENT PANEL BOX [11.2006 - 01.2009] ADE150..LHD |
55445-12130 |
US $1.31 |
||
|
55446A
|
55446A
55446-12120-B0
Base, Switch Hole, No.1
[11.2006 - 01.2009] ADE150..LHD STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1# |
55446-12120-B0 |
— | ||
|
55446A
|
55446A
55446-12120-E0
Base, Switch Hole, No.1
[11.2006 - 01.2009] ADE150..LHD STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
55446-12120-E0 |
— | ||
|
55446A
|
55446A
55446-12130-B0
Base, Switch Hole, No.1
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55446-12130-B0 |
— | ||
|
55446A
|
55446A
55446-12130-E0 Base, Switch Hole, No.1SWITCH HOLE, NO.1 [11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55446-12130-E0 |
US $19.95 |
||
|
55450B
|
55450B
55450-12020-B0 Box Assy, Coin[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1# |
55450-12020-B0 |
US $27.61 |
||
|
55450B
|
55450B
55450-12020-E0 Box Assy, Coin[11.2006 - 01.2009] ADE150 GREGE,TRIM4# |
55450-12020-E0 |
US $19.66 |
||
|
55503B
|
55503B
58959-60060 Cushion, Instrument Panel[11.2006 - 01.2009] ADE150 |
58959-60060 |
from US $1.44 |
||
|
55510A
|
55510A
55557-53030 Cushion(For Glove Compartment Door)[01.2007 - 01.2009] ADE150 |
55557-53030 |
US $1.85 |
||
|
55510A
|
55510A
90541-05026 Cushion(For Glove Compartment)[11.2006 - 12.2006] ADE150,NDE150,ZRE151,ZZE150 |
90541-05026 |
US $1.31 |
||
|
55539C
|
55539C
55539-52060-B0 Cover, Spare Switch Hole[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1#; ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH,D K.GRAY,TRIM1#; ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEAD LAMP CLEANER-WITH,DK.GRAY,TRIM1#; ADE150..LHD |
55539-52060-B0 |
from US $4.11 |
||
|
55539C
|
55539C
55539-52060-E0 Cover, Spare Switch Hole[11.2006 - 01.2009] ADE150 GREGE,TRIM4#; ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH,G REGE,TRIM4#; ADE150..LHD COLD AREA SPEC&VSC-WITH(CANCEL SWITCH)&HEAD LAMP CLEANER-WITH,GREGE,TRIM4#; ADE150..LHD COLD A |
55539-52060-E0 |
US $3.20 |
||
|
55548A
|
55548A
55548-12100 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [11.2006 - 01.2009] ADE150..LHD COLD AREA SPEC |
55548-12100 |
US $24.32 |
||
|
55548A
|
55548A
55548-12110 Cover, Instrument Panel Hole[11.2006 - 01.2009] ADE150 |
55548-12110 |
US $24.32 |
||
|
55550
|
55550
55550-12460-B0
Door Assy, Glove Compartment
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55550-12460-B0 |
— | ||
|
55550
|
55550
55550-12460-E0
Door Assy, Glove Compartment
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55550-12460-E0 |
— | ||
|
55606
|
55606
55606-12080
Cover Sub-Assy, Instrument Panel Under, No.1
[11.2006 - 01.2009] ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
55606-12080 |
— | ||
|
55607
|
55607
55607-12070
Cover Sub-Assy, Instrument Panel Under, No.2
[11.2006 - 01.2009] ADE150..LHD |
55607-12070 |
— | ||
|
55650
|
55650
55650-12300-B0
Register Assy, Instrument Panel, No.1
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55650-12300-B0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-12413-B0
Register Assy, Instrument Panel, No.1
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55650-12413-B0 |
— | ||
|
55650
|
55650
55650-12300-E0
Register Assy, Instrument Panel, No.1
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55650-12300-E0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-12413-E0
Register Assy, Instrument Panel, No.1
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55650-12413-E0 |
— | ||
|
55660
|
55660
55660-12370-B0
Register Assy, Instrument Panel, No.2
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55660-12370-B0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12433-B0
Register Assy, Instrument Panel, No.2
[11.2006 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
55660-12433-B0 |
— | ||
|
55660
|
55660
55660-12370-E0
Register Assy, Instrument Panel, No.2
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55660-12370-E0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12433-E0
Register Assy, Instrument Panel, No.2
[11.2006 - 01.2009] ADE150..LHD GREGE,TRIM4# |
55660-12433-E0 |
— | ||
|
55670A
|
55670A
55670-12370
Register Assy, Instrument Panel, Center
[11.2006 - 01.2009] ADE150 |
55670-12370 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-12591
Register Assy, Instrument Panel, Center
[11.2006 - 01.2009] ADE150 |
55670-12591 |
— | ||
|
58816C
|
58816C
58816-12030-B0
Insert, Console Box, Front No.1
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD DK.GRAY,TRIM1# |
58816-12030-B0 |
— | ||
| replacement | |||||
|
58816C
|
58816C
58816-12031-B0
Insert, Console Box, Front No.1
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD DK.GRAY,TRIM1# |
58816-12031-B0 |
— | ||
|
58816C
|
58816C
58816-12030-E0
Insert, Console Box, Front No.1
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
58816-12030-E0 |
— | ||
| replacement | |||||
|
58816C
|
58816C
58816-12031-E0
Insert, Console Box, Front No.1
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
58816-12031-E0 |
— | ||
|
58816C
|
58816C
58816-12031-B0
Insert, Console Box, Front No.1
[09.2007 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
58816-12031-B0 |
— | ||
|
58816C
|
58816C
58816-12031-E0
Insert, Console Box, Front No.1
[09.2007 - 01.2009] ADE150..LHD GREGE,TRIM4# |
58816-12031-E0 |
— | ||
|
58817B
|
58817B
58817-12070-B0
Insert, Console Box, Front No.2
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD DK.GRAY,TRIM1# |
58817-12070-B0 |
— | ||
| replacement | |||||
|
58817B
|
58817B
58817-12071-B0
Insert, Console Box, Front No.2
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD DK.GRAY,TRIM1# |
58817-12071-B0 |
— | ||
|
58817B
|
58817B
58817-12070-E0
Insert, Console Box, Front No.2
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
58817-12070-E0 |
— | ||
| replacement | |||||
|
58817B
|
58817B
58817-12071-E0
Insert, Console Box, Front No.2
[11.2006 - 09.2007] ADE150,NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
58817-12071-E0 |
— | ||
|
58817B
|
58817B
58817-12071-B0
Insert, Console Box, Front No.2
[09.2007 - 01.2009] ADE150..LHD DK.GRAY,TRIM1# |
58817-12071-B0 |
— | ||
|
58817B
|
58817B
58817-12071-E0
Insert, Console Box, Front No.2
[09.2007 - 01.2009] ADE150..LHD GREGE,TRIM4# |
58817-12071-E0 |
— | ||
|
73900
|
73900
73900-12030-B0
Air Bag Assy, Instrument Panel, Lower No.1
[11.2006 - 01.2009] ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1# |
73900-12030-B0 |
— | ||
| replacement | |||||
|
73900
|
73900
73900-12031-B0
Air Bag Assy, Instrument Panel, Lower No.1
[11.2006 - 01.2009] ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1# |
73900-12031-B0 |
— | ||
|
73900
|
73900
73900-12030-E0
Air Bag Assy, Instrument Panel, Lower No.1
[11.2006 - 01.2009] ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
73900-12030-E0 |
— | ||
| replacement | |||||
|
73900
|
73900
73900-12031-E0
Air Bag Assy, Instrument Panel, Lower No.1
[11.2006 - 01.2009] ADE150..LHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
73900-12031-E0 |
— | ||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.44 |
||
|
7413312050
|
7413312050
74133-12050 Seal, Front Ash Receptacle |
74133-12050 |
US $1.02 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
