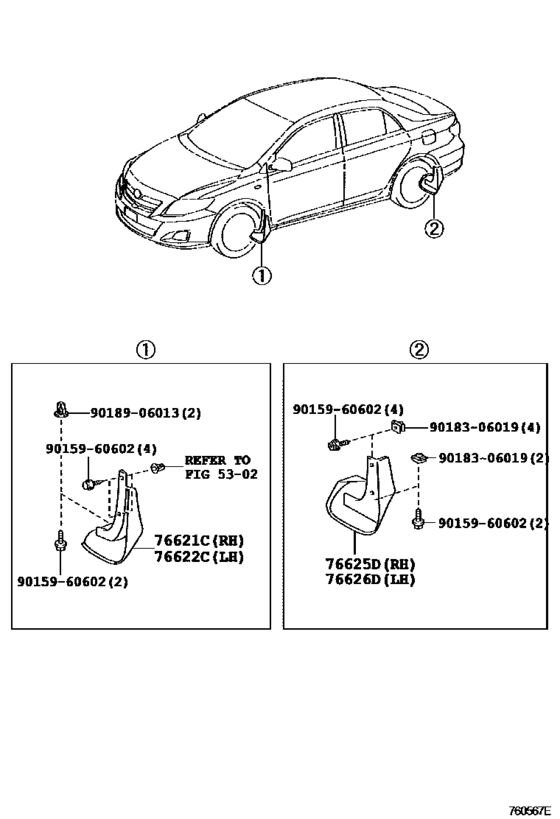

Mudguard & Spoiler ([11.2006 - ] (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76621C
|
76621C
76621-12260 Mudguad, Front Fender, RhFRONT FENDER, RH [11.2006 - 01.2009] ADE150 MUD GUARD-WITH(FRONT & REAR),BLACK |
76621-12260 |
US $75.04 |
||
|
76622C
|
76622C
76622-12260 Mudguard, Front Fender, LhFRONT FENDER, LH [11.2006 - 01.2009] ADE150 MUD GUARD-WITH(FRONT & REAR),BLACK |
76622-12260 |
US $76.05 |
||
|
76625D
|
76625D
76625-12530 Mudguard, Quarter Panel, Rear RhQUARTER PANEL, REAR RH [11.2006 - 01.2009] ADE150 MUD GUARD-WITH(FRONT & REAR),BLACK |
76625-12530 |
US $86.81 |
||
|
76626D
|
76626D
76626-12530
Mudguard, Quarter Panel, Rear Lh
[11.2006 - 01.2009] ADE150 MUD GUARD-WITH(FRONT & REAR),BLACK |
76626-12530 |
— | ||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
