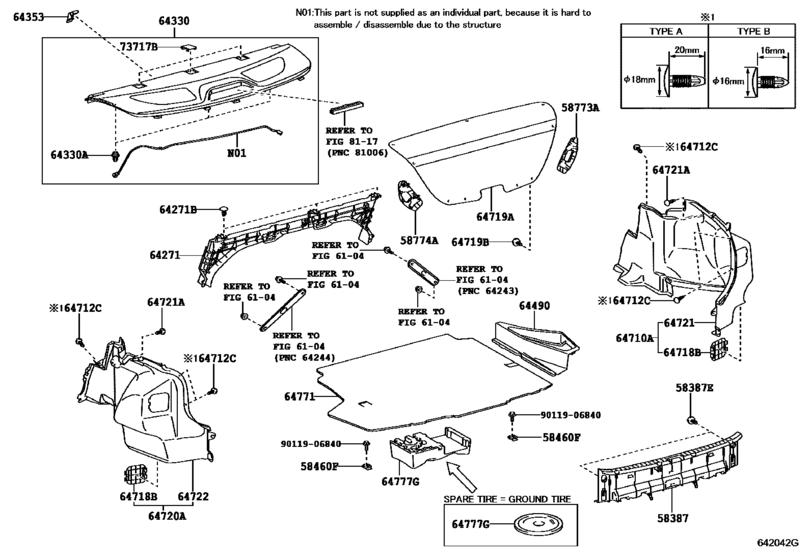

Package Tray Panel & Luggage Compartment Mat ([11.2006 - ] (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-12070 Plate, Rear Floor FinishREAR FLOOR FINISH [11.2006 - 01.2009] ADE150 |
58387-12070 |
from US $74.26 |
||
|
58387E
|
58387E
90467-08186-C0 Clip(For Front Bumper), No.1[11.2006 - 01.2009] ADE150 BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
58460F
|
58460F
58460-13010 Striker Assy, Luggage Hold Belt[11.2006 - 01.2009] ADE150 |
58460-13010 |
US $10.19 |
||
|
58773A
|
58773A
58773-12130
Cover, Luggage Compartment Side, Rh
[11.2006 - 01.2009] ADE150 |
58773-12130 |
— | ||
|
58774A
|
58774A
58774-12120
Cover, Luggage Compartment Side, Lh
[11.2006 - 01.2009] ADE150 |
58774-12120 |
— | ||
|
64271
|
64271
64271-12220 Board, Room Partition, No.1ROOM PARTITION, NO.1 [11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
64271-12220 |
US $75.71 |
||
|
64271B
|
64271B
90467-08186-C0 Clip(For Front Bumper), No.1[11.2006 - 01.2009] ADE150 BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
64330
|
64330
64330-12C40-B0
Panel Assy, Package Tray Trim
[11.2006 - 07.2007] ADE150,NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
64330-12C40-B0 |
— | ||
| replacement | |||||
|
64330
|
64330
64330-12C41-B0 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [11.2006 - 07.2007] ADE150,NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
64330-12C41-B0 |
US $165.98 |
||
|
64330
|
64330
64330-12C40-E0
Panel Assy, Package Tray Trim
[11.2006 - 07.2007] ADE150,NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
64330-12C40-E0 |
— | ||
| replacement | |||||
|
64330
|
64330
64330-12C41-E0 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [11.2006 - 07.2007] ADE150,NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
64330-12C41-E0 |
US $199.47 |
||
|
64330
|
64330
64330-12C41-B0 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.2007 - 01.2009] ADE150 DK.GRAY,TRIM1# |
64330-12C41-B0 |
US $165.98 |
||
|
64330
|
64330
64330-12C41-E0 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.2007 - 01.2009] ADE150 ASH BROWN,TRIM4# |
64330-12C41-E0 |
US $199.47 |
||
|
64330A
|
64330A
90467-10161 Clip[11.2006 - 07.2007] ADE150,NDE150,ZRE151,ZZE150 |
90467-10161 |
from US $0.92 |
||
|
64353
|
64353
64353-12120-B0
Cover, Package Tray Trim Belt Hole
[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1# |
64353-12120-B0 |
— | ||
|
64353
|
64353
64353-12120-E0
Cover, Package Tray Trim Belt Hole
[11.2006 - 01.2009] ADE150 ASH BROWN,TRIM4# |
64353-12120-E0 |
— | ||
|
64490
|
64490
64490-12010 Tray Assy, Luggage Compartment SideLUGGAGE COMPARTMENT SIDE [11.2006 - 01.2009] ADE150 |
64490-12010 |
US $74.26 |
||
|
64710A
|
64710A
64710-12040-C0 Cover Assy, Luggage Compartment Trim, RhLUGGAGE COMPARTMENT TRIM, RH [11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64710-12040-C0 |
US $198.02 |
||
|
64712C
|
64712C
90467-06020-C0 Clip[11.2006 - 04.2008] ADE150,NDE150,ZRE151,ZZE150 BLACK,TYPE A |
90467-06020-C0 |
from US $1.37 |
||
|
64712C
|
64712C
90467-08186-C0 Clip(For Front Bumper), No.1[11.2006 - 01.2009] ADE150 BLACK,TYPE B |
90467-08186-C0 |
from US $0.92 |
||
|
64718B
|
64718B
64718-33010 Cover, Luggage Trim Service Hole[11.2006 - 01.2009] ADE150 |
64718-33010 |
from US $12.32 |
||
|
64719A
|
64719A
64719-12150-C0
Cover, Luggage Compartment Door
[11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64719-12150-C0 |
— | ||
|
64719B
|
64719B
90467-08186-C0 Clip(For Front Bumper), No.1[11.2006 - 01.2009] ADE150 BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
64720A
|
64720A
64720-12040-C0 Cover Assy, Luggage Compartment Trim, LhLUGGAGE COMPARTMENT TRIM, LH [11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64720-12040-C0 |
US $198.02 |
||
|
64721
|
64721
64721-12250-C0
Cover, Luggage Compartment Trim, Inner Rh
[11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64721-12250-C0 |
— | ||
|
64721A
|
64721A
90467-06020-C0 Clip[11.2006 - 01.2009] ADE150 BLACK |
90467-06020-C0 |
from US $1.37 |
||
|
64722
|
64722
64722-12290-C0
Cover, Luggage Compartment Trim, Inner Lh
[11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64722-12290-C0 |
— | ||
|
64771
|
64771
64771-12250-C0 Cover, Spare WheelSPARE WHEEL [11.2006 - 01.2009] ADE150 BLACK,TRIM1#,4# |
64771-12250-C0 |
US $173.26 |
||
|
64777G
|
64777G
64777-12080 Cushion, Spare Wheel[11.2006 - 01.2009] ADE150 |
64777-12080 |
US $33.49 |
||
|
73717B
|
73717B
73717-12050-B0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1#,CENTER |
73717-12050-B0 |
— | ||
|
73717B
|
73717B
73717-12050-E0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 ASH BROWN,TRIM4#,CENTER |
73717-12050-E0 |
— | ||
|
73717B
|
73717B
73717-12060-B0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1#,RH |
73717-12060-B0 |
— | ||
|
73717B
|
73717B
73717-12060-E0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 ASH BROWN,TRIM4#,RH |
73717-12060-E0 |
— | ||
|
73717B
|
73717B
73717-12070-B0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1#,LH |
73717-12070-B0 |
— | ||
|
73717B
|
73717B
73717-12070-E0
Cover, Child Restraint Seat Tether Anchor
[11.2006 - 01.2009] ADE150 ASH BROWN,TRIM4#,LH |
73717-12070-E0 |
— | ||
|
9011906840
|
9011906840
90119-06840 BOLT WWASHER |
90119-06840 |
from US $0.72 |
||
