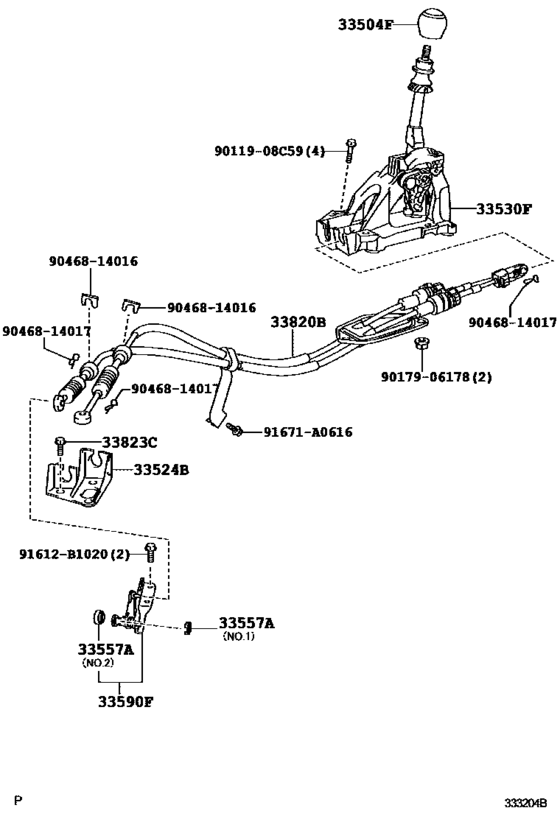

Shift Lever & Retainer ([11.2006 - ] (0611- )ADE150) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12330-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1# |
33504-12330-B1 |
US $57.37 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12330-C0 Knob Sub-Assy, Shift Lever[11.2006 - 01.2009] ADE150 DK.GRAY,TRIM1# |
33504-12330-C0 |
US $52.12 |
||
|
33504F
|
33504F
33504-12330-E0
Knob Sub-Assy, Shift Lever
[11.2006 - 01.2009] ADE150 ASH BROWN,TRIM4# |
33504-12330-E0 |
— | ||
|
33524B
|
33524B
33524-12090
Bracket, Control Cable
[11.2006 - 01.2009] ADE150 |
33524-12090 |
— | ||
|
33530F
|
33530F
33530-12A60
Lever Assy, Shift (For Floor Shift)
[11.2006 - 03.2008] ADE150..LHD |
33530-12A60 |
— | ||
| replacement | |||||
|
33530F
|
33530F
33530-12A61
Lever Assy, Shift (For Floor Shift)
[11.2006 - 03.2008] ADE150..LHD |
33530-12A61 |
— | ||
|
33530F
|
33530F
33530-12A61
Lever Assy, Shift (For Floor Shift)
[04.2008 - 01.2009] ADE150..LHD |
33530-12A61 |
— | ||
|
33557A
|
33557A
33557-20010 Cover, Selecting Bellcrank Dust, No.1[11.2006 - 01.2009] ADE150 NO.2 |
33557-20010 |
US $4.89 |
||
|
33557A
|
33557A
33557-33010 Bush (For Shift & Select Lever)[11.2006 - 01.2009] ADE150 NO.1 |
33557-33010 |
from US $7.20 |
||
|
33590F
|
33590F
33590-20040
Crank Assy, Selecting Bell (For Floor Shift)
[11.2006 - 01.2009] ADE150 |
33590-20040 |
— | ||
|
33820B
|
33820B
33820-12C20
Cable Assy, Transmission Control
[11.2006 - 01.2009] ADE150 |
33820-12C20 |
— | ||
|
33823C
|
33823C
91611-G0820 Bolt[11.2006 - 01.2009] ADE150 |
91611-G0820 |
from US $1.25 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.66 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
