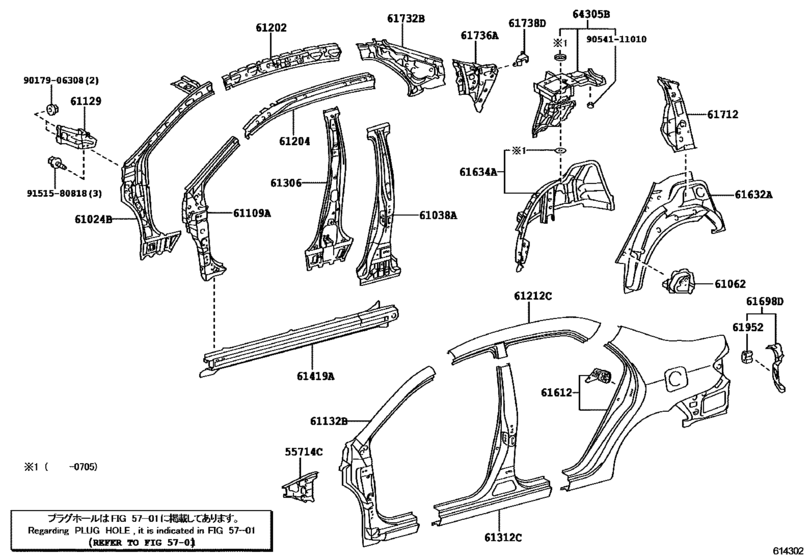

Side Member ([11.2006 - ] LH (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55714C
|
55714C
55714-12130 Panel, Cowl Top Side, Lh[11.2006 - 01.2009] ADE150 |
55714-12130 |
from US $38 |
||
|
61024B
|
61024B
61024-12370
Pillar Sub-Assy, Front Body, Inner Lh
[11.2006 - 01.2009] ADE150 |
61024-12370 |
— | ||
|
61038A
|
61038A
61038-12912 Reinforcement Sub-Assy, Center Body Pillar, LhCENTER BODY PILLAR, LH [11.2006 - 01.2009] ADE150 |
61038-12912 |
US $203.84 |
||
|
61062
|
61062
61062-12010 Reinforcement Sub-Assy, Wheel House, Lh[11.2006 - 01.2009] ADE150 |
61062-12010 |
from US $50.09 |
||
|
61109A
|
61109A
61109-12250
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[11.2006 - 01.2009] ADE150 |
61109-12250 |
— | ||
|
61129
|
61129
61104-12260 Reinforcement Sub-Assy, Cowl Side, Lh[11.2006 - 01.2009] ADE150 |
61104-12260 |
from US $32.32 |
||
|
61132B
|
61132B
61132-12740
Pillar, Front Body, Outer Lh
[11.2006 - 01.2009] ADE150 |
61132-12740 |
— | ||
|
61202
|
61202
61202-12200
Rail Sub-Assy, Roof Side, Lh
[11.2006 - 01.2009] ADE150 |
61202-12200 |
— | ||
|
61204
|
61204
61204-12290
Rail Sub-Assy, Roof Side, Inner Lh
[11.2006 - 01.2009] ADE150 |
61204-12290 |
— | ||
|
61212C
|
61212C
61212-12510 Rail, Roof Side, LhROOF SIDE, LH [11.2006 - 01.2009] ADE150 |
61212-12510 |
from US $94.64 |
||
|
61306
|
61306
61306-12150
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[11.2006 - 01.2009] ADE150 |
61306-12150 |
— | ||
|
61312C
|
61312C
61312-12480 Panel, Rear Body Front Outside, LhREAR BODY FRONT OUTSIDE, LH [11.2006 - 01.2009] ADE150 |
61312-12480 |
from US $207.68 |
||
|
61419A
|
61419A
61404-12080
Reinforcement, Rocker Panel, Lh
[11.2006 - 01.2009] ADE150 |
61404-12080 |
— | ||
| replacement | |||||
|
61419A
|
61419A
61404-12081 Reinforcement, Rocker Panel, Lh[11.2006 - 01.2009] ADE150 |
61404-12081 |
US $200.93 |
||
|
61612
|
61612
61602-12A40 Panel, Quarter, LhQUARTER, LH [11.2006 - 01.2009] ADE150 |
61602-12A40 |
from US $531.44 |
||
|
61632A
|
61632A
61632-12460
Panel, Quarter Wheel House, Outer Lh
[11.2006 - 01.2009] ADE150 |
61632-12460 |
— | ||
| replacements | |||||
|
61632A
|
61632A
61632-12461
Panel, Quarter Wheel House, Outer Lh
[11.2006 - 01.2009] ADE150 |
61632-12461 |
— | ||
|
61632A
|
61632A
90333-30008 PLUG PLATE[11.2006 - 01.2009] ADE150 |
90333-30008 |
from US $1.12 |
||
|
61634A
|
61634A
61608-12949
Panel, Quarter Wheel House, Inner Lh
[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
61608-12949 |
— | ||
| replacements | |||||
|
61634A
|
61634A
48341-12240 Bumper, Rear Spring, No.1 Rh[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
48341-12240 |
from US $39.06 |
||
|
61634A
|
61634A
48755-12100 Support, Rear Suspension[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
48755-12100 |
US $38.46 |
||
|
61634A
|
61634A
61608-12950 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
61608-12950 |
US $222.77 |
||
|
61634A
|
61634A
61608-12950 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [05.2007 - 01.2009] ADE150 |
61608-12950 |
US $222.77 |
||
|
61698D
|
61698D
61698-12913 Housing, Quarter Panel End, LhQUARTER PANEL END, LH [11.2006 - 01.2009] ADE150 |
61698-12913 |
US $39.89 |
||
|
61712
|
61712
61712-12360
Panel, Roof Side, Outer Lh
[11.2006 - 01.2009] ADE150 |
61712-12360 |
— | ||
|
61732B
|
61732B
61732-12740
Panel, Roof Side, Inner Lh
[11.2006 - 01.2009] ADE150 |
61732-12740 |
— | ||
|
61736A
|
61736A
61736-12390
Panel, Roof Side, Inner Rear Lh
[11.2006 - 01.2009] ADE150 |
61736-12390 |
— | ||
|
61738D
|
61738D
61738-12150
Reinforcement, Roof Side, Inner Lh
[11.2006 - 01.2009] ADE150 |
61738-12150 |
— | ||
|
61952
|
61952
61952-12010 Bracket, Side Trim, RhSIDE TRIM, RH [11.2006 - 01.2009] ADE150 |
61952-12010 |
US $8.87 |
||
|
64305B
|
64305B
64305-12091
Reinforce Sub-Assy, Package Tray Bracket, Lh
[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
64305-12091 |
— | ||
| replacements | |||||
|
64305B
|
64305B
48341-12240 Bumper, Rear Spring, No.1 Rh[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
48341-12240 |
from US $39.06 |
||
|
64305B
|
64305B
64305-12093
Reinforce Sub-Assy, Package Tray Bracket, Lh
[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
64305-12093 |
— | ||
|
64305B
|
64305B
48755-12100 Support, Rear Suspension[11.2006 - 05.2007] ADE150,NDE150,ZRE151,ZZE150 |
48755-12100 |
US $38.46 |
||
|
64305B
|
64305B
64305-12092
Reinforce Sub-Assy, Package Tray Bracket, Lh
[05.2007 - 03.2008] ADE150,NDE150,ZRE151,ZZE150 |
64305-12092 |
— | ||
| replacement | |||||
|
64305B
|
64305B
64305-12093
Reinforce Sub-Assy, Package Tray Bracket, Lh
[05.2007 - 03.2008] ADE150,NDE150,ZRE151,ZZE150 |
64305-12093 |
— | ||
|
64305B
|
64305B
64305-12093
Reinforce Sub-Assy, Package Tray Bracket, Lh
[04.2008 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
64305-12093 |
— | ||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
