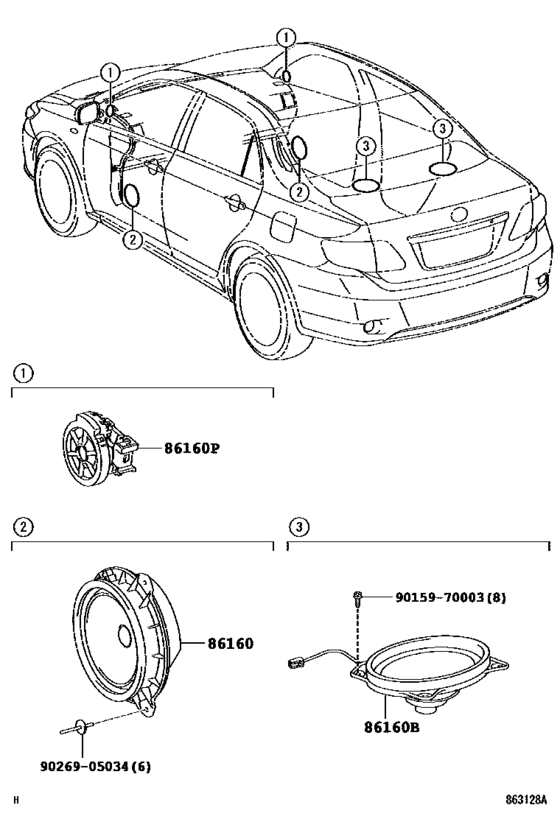

Speaker ([11.2006 - ] (0611- )) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-2B580 Speaker Assy, Front No.1[11.2006 - 01.2009] ADE150 |
86160-2B580 |
US $139.12 |
||
|
86160B
|
86160B
86160-1A180 Speaker Assy, Rear[11.2006 - 01.2009] ADE150 |
86160-1A180 |
US $131.04 |
||
|
86160P
|
86160P
86160-68010 Speaker Assy, Front No.2[11.2006 - 01.2009] ADE150 |
86160-68010 |
US $79.20 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $2.24 |
