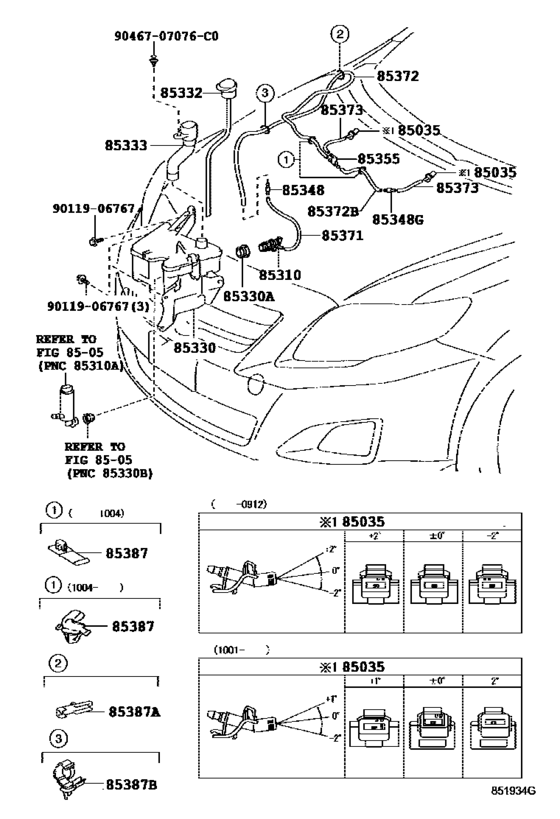

Windshield Washer ([11.2006 - ] W(HEAD LAMP CLEANER) (0611- )LHD) Diagram Toyota COROLLA
- Year
- 2006 - 2009
- Sales region
- Europe
- Frame
- ADE150
- grade
- N
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 11.2006
- To
- 01.2009
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12300 Nozzle Sub-Assy, Washer[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS ANGLE 0 |
85381-12300 |
from US $8.39 |
||
|
85035
|
85035
85381-12310 Nozzle Sub-Assy, Washer[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS ANGLE -2 |
85381-12310 |
from US $10.13 |
||
|
85035
|
85035
85381-12320 Nozzle Sub-Assy, Washer[11.2006 - 01.2009] ADE150,ZZE150;NDE150,ZRE151..5F,5FS ANGLE +2 |
85381-12320 |
from US $10.13 |
||
|
85310
|
85310
85330-02030 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
85330-02030 |
from US $102 |
||
|
85310
|
85310
85330-71010 Motor And Pump Assy, Windshield Washer[11.2006 - 01.2009] ADE150 |
85330-71010 |
from US $81.40 |
||
|
85330
|
85330
85315-12570 Jar Assy, Windshield WasherWINDSHIELD WASHER [11.2006 - 01.2009] ADE150 |
85315-12570 |
US $51.25 |
||
|
85330
|
85330
85396-02070 Jar Assy, Windshield WasherWINDSHIELD WASHER [11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
85396-02070 |
US $80.28 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[11.2006 - 01.2009] ADE150 |
85336-60300 |
from US $1.92 |
||
|
85330A
|
85330A
90069-20005 Bush, Windshield Washer Jar[11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
90069-20005 |
from US $0.96 |
||
|
85332
|
85332
85316-52190 Cap, Windshield Washer Jar[11.2006 - 01.2009] ADE150 |
85316-52190 |
US $1.52 |
||
|
85332
|
85332
85356-02070
Cap, Windshield Washer Jar
[11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
85356-02070 |
— | ||
|
85333
|
85333
85359-02070
Filter, Windshield Washer Jar
[11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
85359-02070 |
— | ||
|
85348
|
85348
85375-05050 Joint, Windshield Washer Hose, No.1[11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
85375-05050 |
US $2.80 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[11.2006 - 01.2009] ADE150 |
85375-10260 |
from US $1.60 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[11.2006 - 01.2009] ADE150 |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[11.2006 - 01.2009] ADE150 |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2[11.2006 - 01.2009] ADE150..LHD HEAD LAMP CLEANER-WITH |
90069-16009 |
US $4.40 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2006 - 01.2009] ADE150 *H,L=80 |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[11.2006 - 01.2009] ADE150 *H,L=1920 |
90099-33803 |
from US $8 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2006 - 01.2009] ADE150 *H,L=350 |
90099-33080 |
US $9.43 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2006 - 01.2009] ADE150 *H,L=165 |
90099-33080 |
US $9.43 |
||
|
85387
|
85387
82711-3A540 Clamp, Sliding Roof Drain Hose[11.2006 - 01.2009] ADE150 |
82711-3A540 |
from US $1.07 |
||
|
85387A
|
85387A
85387-12840
Clamp No.1 (For Windseield Washer)
[11.2006 - 01.2009] ADE150 |
85387-12840 |
— | ||
|
85387B
|
85387B
82711-1E350 Clamp, Wiring Harness[11.2006 - 01.2009] ADE150 |
82711-1E350 |
from US $2.15 |
||
| replacement | |||||
|
85387B
|
85387B
82711-06050 Clamp, Door Scuff Plate, No.2[11.2006 - 01.2009] ADE150 |
82711-06050 |
US $6.47 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
