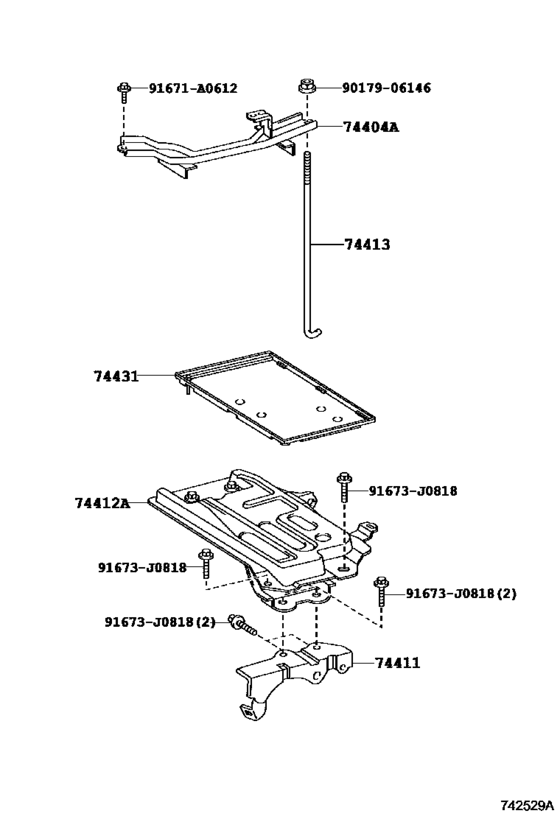

Battery Carrier ([07.2007 - 04.2014] (0707-1404)) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-02150
Clamp Sub-Assy, Battery
[07.2007 - 03.2009] ADE150 |
74404-02150 |
— | ||
|
74411
|
74411
74401-02020
Carrier, Battery
[07.2007 - 03.2009] ADE150 |
74401-02020 |
— | ||
|
74412A
|
74412A
74410-02040
Carrier, Battery, No.2
[07.2007 - 03.2009] ADE150 |
74410-02040 |
— | ||
|
74413
|
74413
74451-30110 Bolt, Battery ClampBATTERY CLAMP [07.2007 - 03.2009] ADE150 |
74451-30110 |
US $1.60 |
||
|
74431
|
74431
74431-02190
Tray, Battery
[07.2007 - 03.2009] ADE150 |
74431-02190 |
— | ||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
91673J0818
|
91673J0818
91673-J0818 New Genuine Part |
91673-J0818 |
US $1.44 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.60 |
