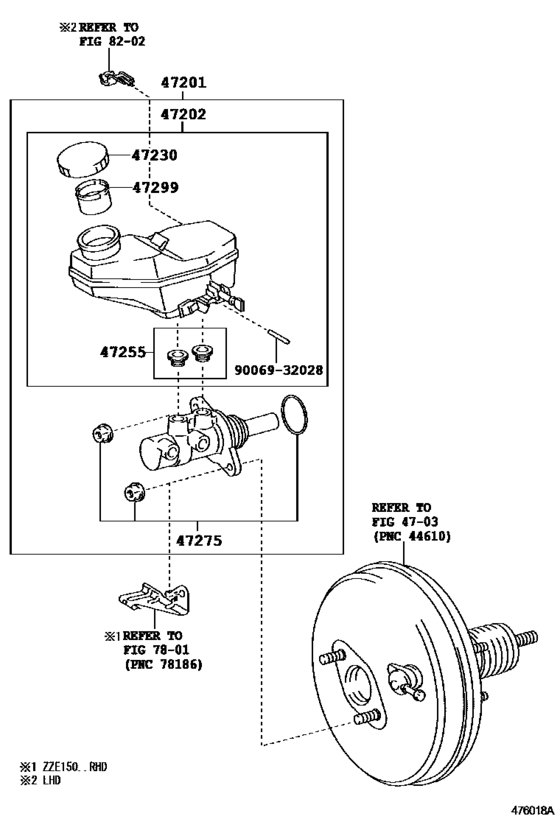

Brake Master Cylinder ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-09310
Cylinder Sub-Assy, Brake Master
[07.2007 - 04.2008] ADE150,ZRE15#,ZZE150..RHD |
47201-09310 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-09530
Cylinder Sub-Assy, Brake Master
[07.2007 - 04.2008] ADE150,ZRE15#,ZZE150..RHD |
47201-09530 |
— | ||
|
47201
|
47201
47201-09530
Cylinder Sub-Assy, Brake Master
[04.2008 - 03.2009] ZRE151..RHD..(5F,5FS);ADE150,ZRE152,ZZE150..RHD |
47201-09530 |
— | ||
|
47202
|
47202
47220-09100 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [07.2007 - 03.2009] ZRE151..RHD..(5F,5FS);ADE150,ZRE152,ZZE150..RHD |
47220-09100 |
US $80.08 |
||
|
47230
|
47230
47230-0D010 Cap Assy, Brake Master Cylinder Reservoir Filler[07.2007 - 03.2009] ADE150 |
47230-0D010 |
US $16.57 |
||
|
47255
|
47255
47255-09040 Grommet, Master Cylinder ReservoirMASTER CYLINDER RESERVOIR [07.2007 - 03.2009] ADE150 |
47255-09040 |
US $9.26 |
||
|
47275
|
47275
47275-09010 Gasket, Brake Master CylinderBRAKE MASTER CYLINDER [07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
47275-09010 |
US $2.62 |
||
|
47299
|
47299
47299-02160 Strainer, Brake Master Cylinder ReservoirBRAKE MASTER CYLINDER RESERVOIR [07.2007 - 03.2009] ADE150 |
47299-02160 |
US $7.16 |
||
|
9006932028
|
9006932028
90069-32028 New Genuine Part |
90069-32028 |
US $1.16 |
||
