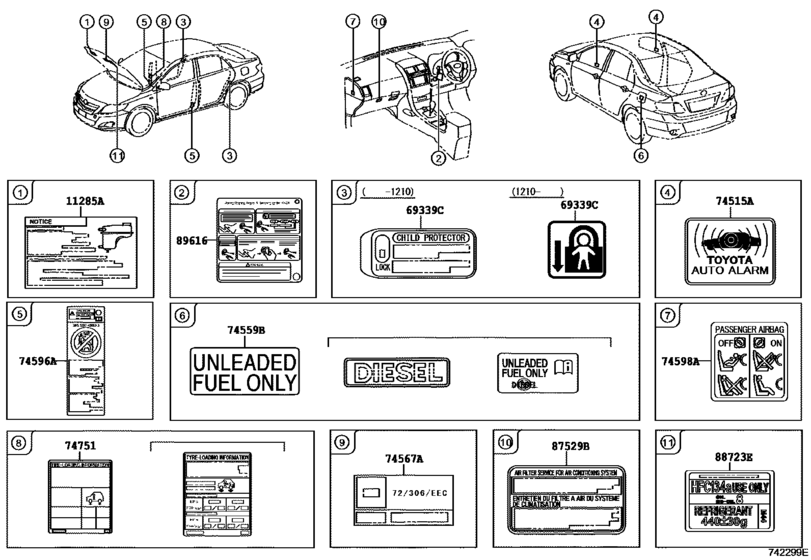

Caution Plate (Exterior & Interior) ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11285A
|
11285A
11285-26010
Label, Coolant System Notice
[07.2007 - 10.2008] 1ADFTV,1NDTV..ADE150,NDE150 |
11285-26010 |
— | ||
| replacement | |||||
|
11285A
|
11285A
11285-33030 Label, Coolant System NoticeCOOLANT SYSTEM NOTICE [07.2007 - 10.2008] 1ADFTV,1NDTV..ADE150,NDE150 |
11285-33030 |
US $3.20 |
||
|
11285A
|
11285A
11285-33030 Label, Coolant System NoticeCOOLANT SYSTEM NOTICE [11.2008 - 03.2009] 1ADFTV..ADE150 |
11285-33030 |
US $3.20 |
||
|
69339C
|
69339C
69339-03010 Plate, Child Protector Lock CautionCHILD PROTECTOR INFORMATION [07.2007 - 03.2009] ADE150 |
69339-03010 |
US $3.06 |
||
|
69339C
|
69339C
69339-06060
Plate, Child Protector Lock Caution
[10.2012 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
69339-06060 |
— | ||
|
74515A
|
74515A
74515-42010 Label, Theft Warning InformationTHEFT WARNING [07.2007 - 03.2009] ADE150..SA |
74515-42010 |
US $4.80 |
||
|
74559B
|
74559B
74559-02010
Label, Fuel Information
[07.2007 - 03.2009] ADE150 |
74559-02010 |
— | ||
|
74567A
|
74567A
74567-20261 Plate, E.c.e Approved NumberE.C.E APPROVED NUMBER [07.2007 - 03.2009] ADE150 |
74567-20261 |
US $1.56 |
||
|
74596A
|
74596A
74596-53010 Label, Side Air Bag CautionSIDE AIR BAG CAUTION [07.2007 - 03.2009] ADE150 |
74596-53010 |
US $5.12 |
||
|
74598A
|
74598A
74598-0F010
Label, Passenger Air Bag Caution
[07.2007 - 03.2009] ADE150 |
74598-0F010 |
— | ||
|
74751
|
74751
42661-02760
Label, Tire Pressure Information
[07.2007 - 03.2009] ADE150 |
42661-02760 |
— | ||
|
87529B
|
87529B
87529-02060
Label, A/c Filter Information
[07.2007 - 03.2009] ADE150 |
87529-02060 |
— | ||
|
88723E
|
88723E
88733-02010
Label, Cooler Service Caution
[07.2007 - 03.2009] ADE150 |
88733-02010 |
— | ||
|
89616
|
89616
89616-53010 Label, Push Start InformationPUSH START INFORMATION [07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
89616-53010 |
US $5.82 |
||
