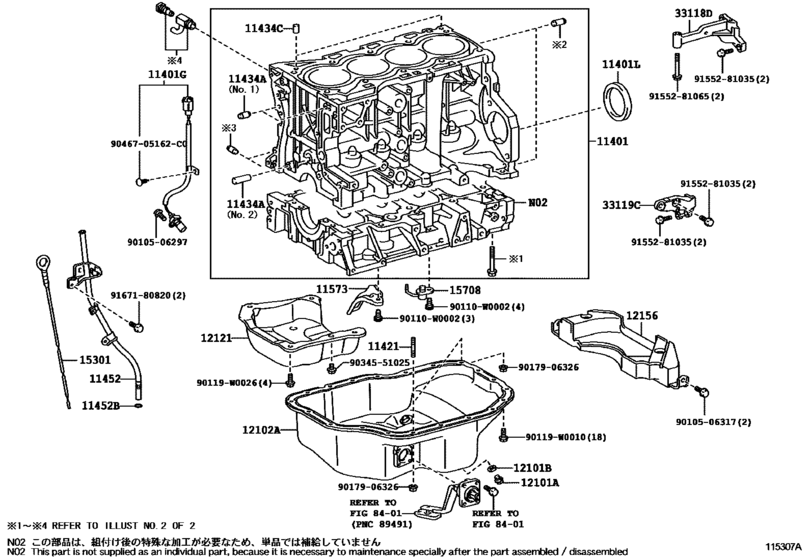

Cylinder Block ([07.2007 - 03.2009] (0707-0903)1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11410-09250
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (L) |
11410-09250 |
— | ||
| replacements | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (L) |
11410-09406 |
— | ||
|
11401
|
11401
11410-09416
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (L) |
11410-09416 |
— | ||
|
11401
|
11401
11410-09380
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (L) |
11410-09380 |
— | ||
| replacements | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (L) |
11410-09406 |
— | ||
|
11401
|
11401
11410-09416
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (L) |
11410-09416 |
— | ||
|
11401
|
11401
11410-09405
Block Sub-Assy, Cylinder
[08.2008 - 03.2009] 1ADFTV..ADE150 (L) |
11410-09405 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[08.2008 - 03.2009] 1ADFTV..ADE150 (L) |
11410-09406 |
— | ||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[03.2011 - 09.2013] 1ADFTV..ADE150 (L) |
11410-09406 |
— | ||
|
11401
|
11401
11410-29355
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (J) |
11410-29355 |
— | ||
| replacements | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (J) |
11410-09406 |
— | ||
|
11401
|
11401
11410-09416
Block Sub-Assy, Cylinder
[07.2007 - 01.2008] 1ADFTV..ADE150 (J) |
11410-09416 |
— | ||
|
11401
|
11401
11410-29395
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (J) |
11410-29395 |
— | ||
| replacements | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (J) |
11410-09406 |
— | ||
|
11401
|
11401
11410-09416
Block Sub-Assy, Cylinder
[06.2008 - 08.2008] 1ADFTV..ADE150 (J) |
11410-09416 |
— | ||
|
11401
|
11401
11410-29405
Block Sub-Assy, Cylinder
[08.2008 - 03.2009] 1ADFTV..ADE150 (J) |
11410-29405 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[08.2008 - 03.2009] 1ADFTV..ADE150 (J) |
11410-09406 |
— | ||
|
11401
|
11401
11410-29406
Block Sub-Assy, Cylinder
[03.2011 - 09.2013] 1ADFTV..ADE150 (J) |
11410-29406 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-09406
Block Sub-Assy, Cylinder
[03.2011 - 09.2013] 1ADFTV..ADE150 (J) |
11410-09406 |
— | ||
|
11401G
|
11401G
90919-05069
Sensor, Crank Position
[07.2007 - 03.2009] 1ADFTV..ADE150 |
90919-05069 |
— | ||
|
11401L
|
11401L
90311-W0006
Seal, Engine Rear Oil
[07.2007 - 07.2008] 1ADFTV..ADE150 |
90311-W0006 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-W0010
Seal, Engine Rear Oil
[07.2007 - 07.2008] 1ADFTV..ADE150 |
90311-W0010 |
— | ||
|
11401L
|
11401L
90311-W0010
Seal, Engine Rear Oil
[07.2008 - 03.2009] 1ADFTV..ADE150 |
90311-W0010 |
— | ||
|
11421
|
11421
90116-06134 Bolt, Stud(For Timing Gear Cover)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90116-06134 |
from US $0.96 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[07.2007 - 03.2009] 1ADFTV..ADE150 L=18,OD=8,NO.1 |
90250-08120 |
from US $1.07 |
||
|
11434A
|
11434A
90250-10030 Pin, Straight(For Clutch Housing Set)[07.2007 - 03.2009] 1ADFTV..ADE150 L=36,OD=10,NO.2 |
90250-10030 |
from US $1.35 |
||
|
11434C
|
11434C
90250-08074 Pin, Straight(For Timing Gear Case)[07.2007 - 03.2009] 1ADFTV..ADE150 L=15,OD=8 |
90250-08074 |
US $1.60 |
||
|
11452
|
11452
11452-26030
Guide, Oil Level Gage
[03.2009 - 06.2010] 1ADFTV..ADE150 |
11452-26030 |
— | ||
|
11452
|
11452
11452-26050
Guide, Oil Level Gage
[07.2007 - 03.2009] 1ADFTV..ADE150 |
11452-26050 |
— | ||
|
11452
|
11452
11452-26060
Guide, Oil Level Gage
[11.2011 -] 1ADFTV..ADE150 |
11452-26060 |
— | ||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[09.2009 - 06.2010] 1ADFTV..ADE150 |
96721-19010 |
from US $1.64 |
||
|
11452B
|
11452B
96741-19010 Ring, O(For Oil Level Gage Guide)[07.2007 - 03.2009] 1ADFTV..ADE150 |
96741-19010 |
from US $2.32 |
||
|
11573
|
11573
11573-26010 Plate, Oil ReflectorOIL REFLECTOR [07.2007 - 03.2009] 1ADFTV..ADE150 |
11573-26010 |
US $4.53 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90341-T0004 |
US $4.04 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90430-12031 |
from US $0.88 |
||
|
12102A
|
12102A
12102-0R010
Pan Sub-Assy, Oil, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12102-0R010 |
— | ||
| replacement | |||||
|
12102A
|
12102A
12102-0R022
Pan Sub-Assy, Oil, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12102-0R022 |
— | ||
|
12102A
|
12102A
12102-0R020
Pan Sub-Assy, Oil, No.2
[03.2009 - 08.2009] 1ADFTV..ADE150 |
12102-0R020 |
— | ||
| replacement | |||||
|
12102A
|
12102A
12102-0R022
Pan Sub-Assy, Oil, No.2
[03.2009 - 08.2009] 1ADFTV..ADE150 |
12102-0R022 |
— | ||
|
12102A
|
12102A
12102-0R021
Pan Sub-Assy, Oil, No.2
[08.2009 - 06.2010] 1ADFTV..ADE150 |
12102-0R021 |
— | ||
| replacement | |||||
|
12102A
|
12102A
12102-0R022
Pan Sub-Assy, Oil, No.2
[08.2009 - 06.2010] 1ADFTV..ADE150 |
12102-0R022 |
— | ||
|
12102A
|
12102A
12102-0R022
Pan Sub-Assy, Oil, No.2
[02.2013 -] 1ADFTV..ADE150 |
12102-0R022 |
— | ||
|
12121
|
12121
12121-26020
Plate, Oil Pan Baffle, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12121-26020 |
— | ||
|
12156
|
12156
12156-0R010
Insulator, Oil Pan
[07.2007 - 03.2009] 1ADFTV..ADE150 |
12156-0R010 |
— | ||
|
12156
|
12156
12156-0R020
Insulator, Oil Pan
[03.2009 - 06.2010] 1ADFTV..ADE150 |
12156-0R020 |
— | ||
|
15301
|
15301
15301-26060
Gage Sub-Assy, Oil Level
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15301-26060 |
— | ||
|
15301
|
15301
15301-26080
Gage Sub-Assy, Oil Level
[03.2009 - 06.2010] 1ADFTV..ADE150 |
15301-26080 |
— | ||
|
15708
|
15708
15708-0R010
Nozzle Sub-Assy, Oil, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15708-0R010 |
— | ||
| replacement | |||||
|
15708
|
15708
15708-0R011
Nozzle Sub-Assy, Oil, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15708-0R011 |
— | ||
|
15708
|
15708
15708-0R011
Nozzle Sub-Assy, Oil, No.1
[03.2011 -] 1ADFTV..ADE150 |
15708-0R011 |
— | ||
|
33118D
|
33118D
33118-05010
Plate, Stiffener, Rh
[07.2007 - 03.2009] ADE150 |
33118-05010 |
— | ||
|
33119C
|
33119C
33119-05010
Plate, Stiffener, Lh
[07.2007 - 03.2009] ADE150 |
33119-05010 |
— | ||
| replacement | |||||
|
33119C
|
33119C
33119-05020
Plate, Stiffener, Lh
[07.2007 - 03.2009] ADE150 |
33119-05020 |
— | ||
|
33119C
|
33119C
33119-05020
Plate, Stiffener, Lh
[03.2009 - 06.2010] ADE150 |
33119-05020 |
— | ||
|
90110W0002
|
90110W0002
90110-W0002
New Genuine Part
|
90110-W0002 |
— | ||
|
90119W0010
|
90119W0010
90119-W0010
New Genuine Part
|
90119-W0010 |
— | ||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
9010506297
|
9010506297
90105-06297 New Genuine Part |
90105-06297 |
US $0.96 |
||
|
9010506317
|
9010506317
90105-06317
New Genuine Part
|
90105-06317 |
— | ||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9034551025
|
9034551025
90345-51025 Plug, W/head Taper Screw, No.2 |
90345-51025 |
US $3.36 |
||
|
9046705162C0
|
9046705162C0
90467-05162-C0 Clip, Heater To Register Duct |
90467-05162-C0 |
from US $0.70 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.21 |
||
|
9155281065
|
9155281065
91552-81065 New Genuine Part |
91552-81065 |
US $4.16 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
