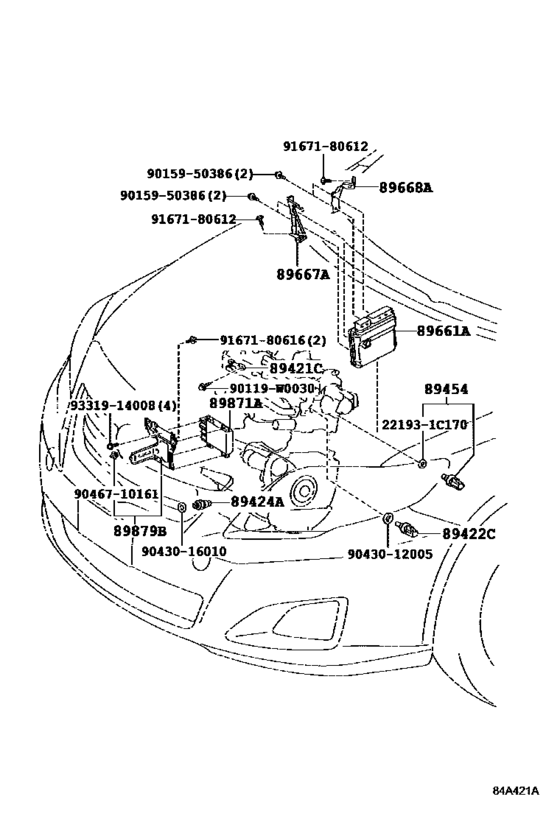

Electronic Controled Diesel (Ecd) ([03.2009 - ] (0903- )ADE150) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89421C
|
89421C
89421-20200 Sensor, Turbo Pressure (For Diesel Turbo)TURBO PRESSURE (FOR DIESEL TURBO) [07.2007 - 03.2009] ADE150 |
89421-20200 |
from US $87.32 |
||
|
89422C
|
89422C
89422-33030 Sensor, Water Temperature (For E.f.i.)[07.2007 - 03.2009] ADE150 |
89422-33030 |
from US $36.63 |
||
|
89424A
|
89424A
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[07.2007 - 03.2009] ADE150 |
89424-60010 |
from US $66.12 |
||
|
89454
|
89454
89454-60020 Sensor, Fuel Temperature[07.2007 - 03.2009] ADE150 |
89454-60020 |
from US $38.88 |
||
|
89661A
|
89661A
89661-02F61
Computer, Engine Control
[07.2007 - 08.2008] ADE150 |
89661-02F61 |
— | ||
| replacement | |||||
|
89661A
|
89661A
89661-02F62
Computer, Engine Control
[07.2007 - 08.2008] ADE150 |
89661-02F62 |
— | ||
|
89661A
|
89661A
89661-02F62
Computer, Engine Control
[09.2008 - 03.2009] ADE150 |
89661-02F62 |
— | ||
|
89661A
|
89661A
89661-02S40
Computer, Engine Control
[03.2009 - 06.2010] ADE150 |
89661-02S40 |
— | ||
| replacement | |||||
|
89661A
|
89661A
89661-02S41
Computer, Engine Control
[03.2009 - 06.2010] ADE150 |
89661-02S41 |
— | ||
|
89661A
|
89661A
89661-02S41
Computer, Engine Control
[03.2011 -] ADE150 |
89661-02S41 |
— | ||
|
89667A
|
89667A
89667-02180 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [07.2007 - 03.2009] ADE150 |
89667-02180 |
US $10.77 |
||
|
89668A
|
89668A
89668-02170 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [07.2007 - 03.2009] ADE150 |
89668-02170 |
US $7.72 |
||
|
89871A
|
89871A
89871-20080 Driver, InjectorINJECTOR [03.2009 - 06.2010] ADE150 |
89871-20080 |
from US $759.29 |
||
|
89871A
|
89871A
89871-71010 Driver, Injector[07.2007 - 03.2009] ADE150 |
89871-71010 |
from US $322 |
||
|
89879B
|
89879B
89879-12060
Bracket, Injector Driver
[07.2007 - 03.2009] ADE150 |
89879-12060 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
221931C170
|
221931C170
22193-1C170
Ring, O(for Lever Connecting Pin)
|
22193-1C170 |
— | ||
|
9015950386
|
9015950386
90159-50386 New Genuine Part |
90159-50386 |
US $0.96 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
from US $1.01 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
