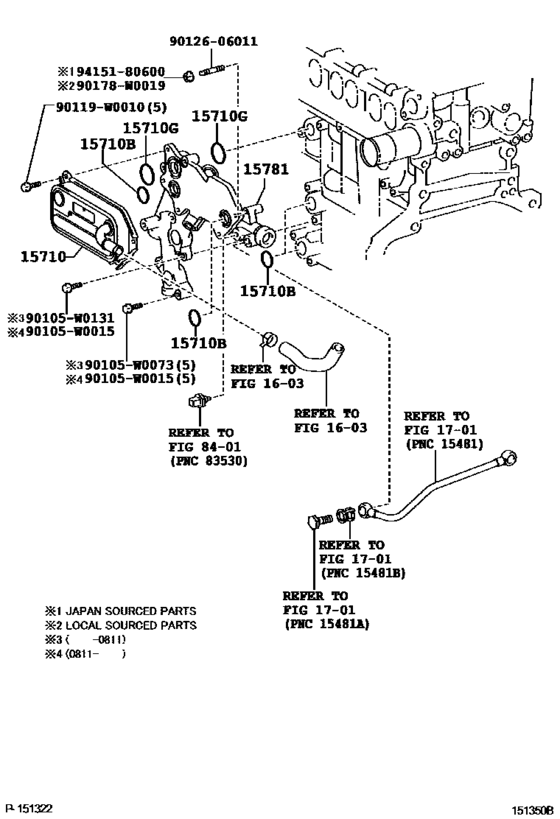

Engine Oil Cooler ([07.2007 - ] (0707- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-0R010 Cooler Assy, OilOIL [07.2007 - 03.2009] 1ADFTV..ADE150 |
15710-0R010 |
US $672.67 |
||
| replacement | |||||
|
15710
|
15710
15710-0R011 Cooler Assy, Oil[07.2007 - 03.2009] 1ADFTV..ADE150 |
15710-0R011 |
US $532.58 |
||
|
15710
|
15710
15710-0R011 Cooler Assy, Oil[10.2010 -] 1ADFTV..ADE150 |
15710-0R011 |
US $532.58 |
||
|
15710B
|
15710B
90301-24018 Ring, O(For Oil Filter Bracket)O(FOR OIL COOLER) [07.2007 - 03.2009] 1ADFTV..ADE150 |
90301-24018 |
from US $2.77 |
||
|
15710G
|
15710G
90301-29013 Ring, O, No.2O, NO.2 [07.2007 - 03.2009] 1ADFTV..ADE150 |
90301-29013 |
US $3.20 |
||
|
15781
|
15781
15781-26011 Bolt(For Head To Camshaft Bearing Cap)OIL COOLER, NO.1 [07.2007 - 11.2008] 1ADFTV..ADE150 |
15781-26011 |
US $189.28 |
||
| replacements | |||||
|
15781
|
15781
15781-26030
Bracket, Oil Cooler, No.1
[07.2007 - 11.2008] 1ADFTV..ADE150 |
15781-26030 |
— | ||
|
15781
|
15781
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[07.2007 - 11.2008] 1ADFTV..ADE150 |
91551-80635 |
from US $0.90 |
||
|
15781
|
15781
15781-26030
Bracket, Oil Cooler, No.1
[11.2008 - 03.2009] 1ADFTV..ADE150 |
15781-26030 |
— | ||
|
15781
|
15781
15781-26031
Bracket, Oil Cooler, No.1
[11.2010 -] 1ADFTV..ADE150 |
15781-26031 |
— | ||
|
90105W0015
|
90105W0015
90105-W0015
Bolt(For Head To Camshaft Bearing Cap)
|
90105-W0015 |
— | ||
|
90105W0073
|
90105W0073
90105-W0073
Bolt(For Head To Camshaft Bearing Cap)
|
90105-W0073 |
— | ||
| replacement | |||||
|
90105W0073
|
90105W0073
90105-W0015
Bolt(For Head To Camshaft Bearing Cap)
|
90105-W0015 |
— | ||
|
90105W0131
|
90105W0131
90105-W0131
New Genuine Part
|
90105-W0131 |
— | ||
|
90119W0010
|
90119W0010
90119-W0010
New Genuine Part
|
90119-W0010 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9012606011
|
9012606011
90126-06011 New Genuine Part |
90126-06011 |
US $4.48 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
