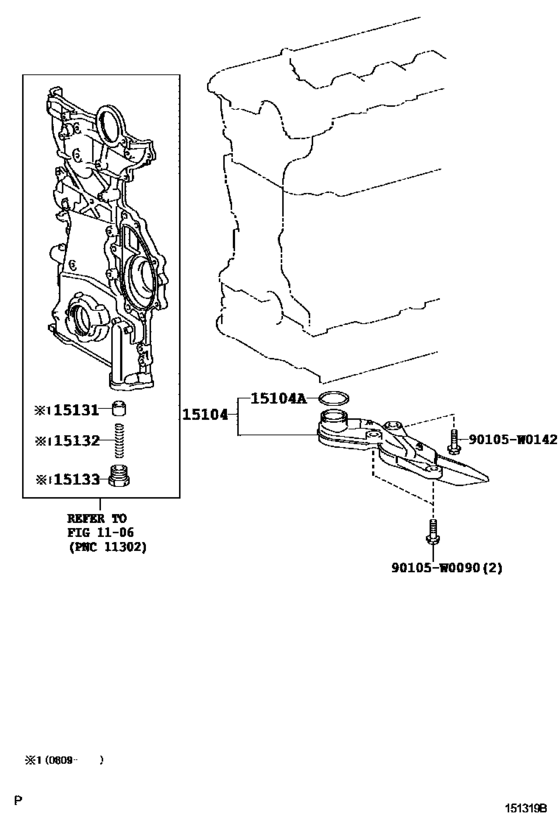

Engine Oil Pump ([07.2007 - ] (0707- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-26030 Strainer Sub-Assy, OilOIL [07.2007 - 03.2009] 1ADFTV..ADE150 |
15104-26030 |
US $49.97 |
||
|
15104A
|
15104A
90301-27013 Ring, O(For Oil Strainer)O(FOR OIL STRAINER) [07.2007 - 03.2009] 1ADFTV..ADE150 |
90301-27013 |
US $5.92 |
||
|
15131
|
15131
15131-0A040 Valve, Oil Pump Relief[09.2008 - 03.2009] 1ADFTV..ADE150 |
15131-0A040 |
from US $2.44 |
||
|
15132
|
15132
15132-26030
Spring, Oil Pump Relief Valve
[09.2008 - 03.2009] 1ADFTV..ADE150 |
15132-26030 |
— | ||
|
15133
|
15133
15133-33040 Plug, Oil Pump Relief ValveOIL PUMP RELIEF VALVE [09.2008 - 03.2009] 1ADFTV..ADE150 |
15133-33040 |
US $3.67 |
||
|
90105W0090
|
90105W0090
90105-W0090
New Genuine Part
|
90105-W0090 |
— | ||
|
90105W0142
|
90105W0142
90105-W0142
Bolt(For Transaxle Case & Engine Setting)
|
90105-W0142 |
— |
