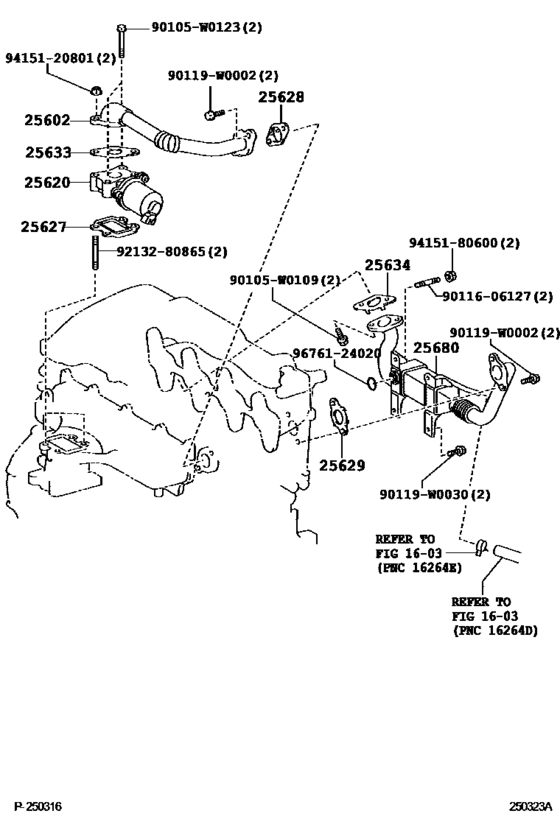

Exhaust Gas Recirculation System ([07.2007 - 03.2009] (0707-0903)1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25602
|
25602
25612-0R031
Pipe Sub-Assy, Egr, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25612-0R031 |
— | ||
|
25602
|
25602
25612-26030
Pipe Sub-Assy, Egr, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25612-26030 |
— | ||
|
25620
|
25620
25620-0R021
Valve Assy, Egr
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25620-0R021 |
— | ||
| replacement | |||||
|
25620
|
25620
25620-0R022
Valve Assy, Egr
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25620-0R022 |
— | ||
|
25627
|
25627
25627-0R010 Gasket, Egr ValveEGR VALVE [07.2007 - 03.2009] 1ADFTV..ADE150 |
25627-0R010 |
US $5.77 |
||
|
25627
|
25627
25627-0R020
Gasket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25627-0R020 |
— | ||
|
25628
|
25628
25628-0R010
Gasket, Egr Inlet
[07.2007 - 07.2008] 1ADFTV..ADE150 |
25628-0R010 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-26020 Gasket, Egr InletEGR INLET [07.2007 - 07.2008] 1ADFTV..ADE150 |
25628-26020 |
US $4.02 |
||
|
25628
|
25628
25628-26020 Gasket, Egr InletEGR INLET [07.2008 - 03.2009] 1ADFTV..ADE150 |
25628-26020 |
US $4.02 |
||
|
25629
|
25629
25629-0R010 Gasket, Egr Valve AdapterEGR VALVE ADAPTER [07.2007 - 03.2009] 1ADFTV..ADE150 |
25629-0R010 |
US $5.97 |
||
|
25633
|
25633
25633-0R010
Gasket, Egr Valve
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25633-0R010 |
— | ||
|
25633
|
25633
25633-0R020
Gasket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25633-0R020 |
— | ||
|
25634
|
25634
25634-0R010 Gasket, Egr PipeEGR PIPE [07.2007 - 03.2009] 1ADFTV..ADE150 |
25634-0R010 |
US $9.12 |
||
|
25680
|
25680
25680-0R010
Cooler Assy, Egr
[07.2007 - 05.2008] 1ADFTV..ADE150 |
25680-0R010 |
— | ||
| replacements | |||||
|
25680
|
25680
25680-26041
Cooler Assy, Egr
[07.2007 - 05.2008] 1ADFTV..ADE150 |
25680-26041 |
— | ||
|
25680
|
25680
16284-26040
Hose, Turbo Water, No.1
[07.2007 - 05.2008] 1ADFTV..ADE150 |
16284-26040 |
— | ||
|
25680
|
25680
25680-0R011
Cooler Assy, Egr
[05.2008 - 03.2009] 1ADFTV..ADE150 |
25680-0R011 |
— | ||
| replacement | |||||
|
25680
|
25680
25680-26041
Cooler Assy, Egr
[05.2008 - 03.2009] 1ADFTV..ADE150 |
25680-26041 |
— | ||
|
90105W0109
|
90105W0109
90105-W0109
New Genuine Part
|
90105-W0109 |
— | ||
|
90105W0123
|
90105W0123
90105-W0123
New Genuine Part
|
90105-W0123 |
— | ||
|
90119W0002
|
90119W0002
90119-W0002
BOLT WWASHER
|
90119-W0002 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9213280865
|
9213280865
92132-80865 New Genuine Part |
92132-80865 |
US $1.40 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.28 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.34 |
||
