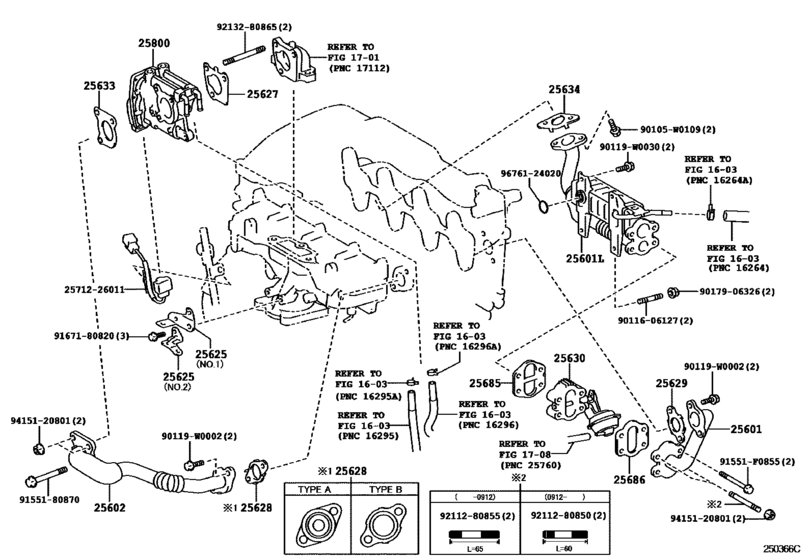

Exhaust Gas Recirculation System ([03.2009 - ] (0903- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-0R020
Pipe Sub-Assy, Egr, No.1
[12.2009 - 06.2010] 1ADFTV..ADE150 (L) |
25611-0R020 |
— | ||
|
25601
|
25601
25611-26030
Pipe Sub-Assy, Egr, No.1
[03.2009 - 12.2009] 1ADFTV..ADE150 |
25611-26030 |
— | ||
|
25601L
|
25601L
25601-0R020
Pipe Sub-Assy, Egr W/cooler
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25601-0R020 |
— | ||
|
25602
|
25602
25612-0R031
Pipe Sub-Assy, Egr, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25612-0R031 |
— | ||
|
25602
|
25602
25612-26030
Pipe Sub-Assy, Egr, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25612-26030 |
— | ||
|
25625
|
25625
25625-26010
Bracket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 NO.1 |
25625-26010 |
— | ||
|
25625
|
25625
25625-26020
Bracket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 NO.2 |
25625-26020 |
— | ||
|
25627
|
25627
25627-0R010 Gasket, Egr ValveEGR VALVE [07.2007 - 03.2009] 1ADFTV..ADE150 |
25627-0R010 |
US $5.77 |
||
|
25627
|
25627
25627-0R020
Gasket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25627-0R020 |
— | ||
|
25628
|
25628
25628-0R010
Gasket, Egr Inlet
[07.2007 - 07.2008] 1ADFTV..ADE150 |
25628-0R010 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-26020 Gasket, Egr InletEGR INLET [07.2007 - 07.2008] 1ADFTV..ADE150 |
25628-26020 |
US $4.02 |
||
|
25628
|
25628
25628-26020 Gasket, Egr InletEGR INLET [07.2008 - 03.2009] 1ADFTV..ADE150 |
25628-26020 |
US $4.02 |
||
|
25629
|
25629
25629-0R010 Gasket, Egr Valve AdapterEGR VALVE ADAPTER [07.2007 - 03.2009] 1ADFTV..ADE150 |
25629-0R010 |
US $5.97 |
||
|
25630
|
25630
25630-26020
Valve Assy, Egr, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25630-26020 |
— | ||
|
25633
|
25633
25633-0R010
Gasket, Egr Valve
[07.2007 - 03.2009] 1ADFTV..ADE150 |
25633-0R010 |
— | ||
|
25633
|
25633
25633-0R020
Gasket, Egr Valve
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25633-0R020 |
— | ||
|
25634
|
25634
25634-0R010 Gasket, Egr PipeEGR PIPE [07.2007 - 03.2009] 1ADFTV..ADE150 |
25634-0R010 |
US $9.12 |
||
|
25685
|
25685
25685-0R010
Gasket, Egr Cooler, No.1
[03.2009 - 02.2010] 1ADFTV..ADE150 |
25685-0R010 |
— | ||
| replacement | |||||
|
25685
|
25685
25685-0R011
Gasket, Egr Cooler, No.1
[03.2009 - 02.2010] 1ADFTV..ADE150 |
25685-0R011 |
— | ||
|
25685
|
25685
25685-0R011
Gasket, Egr Cooler, No.1
[03.2010 - 06.2010] 1ADFTV..ADE150 |
25685-0R011 |
— | ||
|
25686
|
25686
25686-0R010
Gasket, Egr Cooler, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25686-0R010 |
— | ||
|
25800
|
25800
25800-0R010
Valve Assy, Electric Egr Control
[03.2009 - 06.2010] 1ADFTV..ADE150 |
25800-0R010 |
— | ||
|
90105W0109
|
90105W0109
90105-W0109
New Genuine Part
|
90105-W0109 |
— | ||
|
90119W0002
|
90119W0002
90119-W0002
BOLT WWASHER
|
90119-W0002 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.98 |
||
|
2571226011
|
2571226011
25712-26011
Wire, Emission Control Valve
|
25712-26011 |
— | ||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9155180870
|
9155180870
91551-80870 Bolt(For Cylinder Head Cover) |
91551-80870 |
US $1.60 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9211280850
|
9211280850
92112-80850
New Genuine Part
|
92112-80850 |
— | ||
|
9211280855
|
9211280855
92112-80855
New Genuine Part
|
92112-80855 |
— | ||
| replacement | |||||
|
9211280855
|
9211280855
92112-80850
New Genuine Part
|
92112-80850 |
— | ||
|
9213280865
|
9213280865
92132-80865 New Genuine Part |
92132-80865 |
US $1.40 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.28 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.34 |
||
