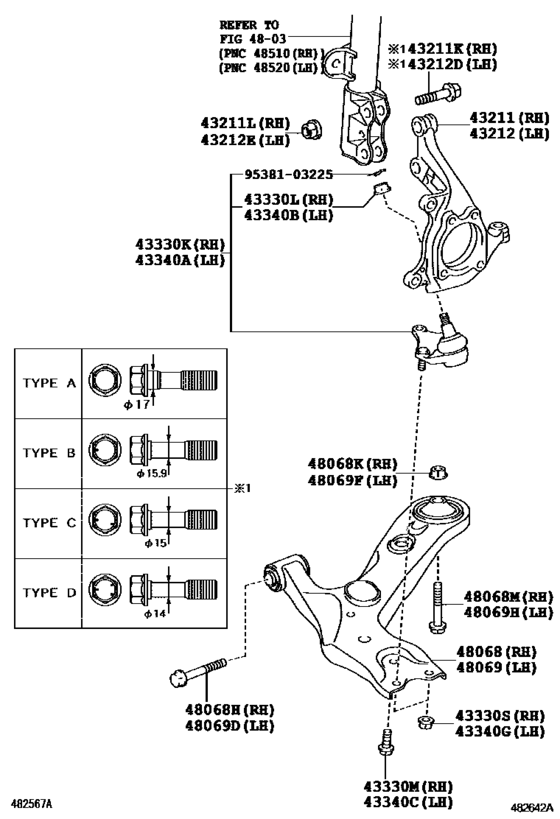

Front Axle Arm & Steering Knuckle ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-02190
Knuckle, Steering, Rh
[07.2007 - 07.2008] ADE150,NDE150,ZRE15#,ZZE150 |
43211-02190 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-02350
Knuckle, Steering, Rh
[07.2007 - 07.2008] ADE150,NDE150,ZRE15#,ZZE150 |
43211-02350 |
— | ||
|
43211
|
43211
43211-02350
Knuckle, Steering, Rh
[08.2008 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
43211-02350 |
— | ||
|
43211K
|
43211K
90105-17008 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=17,TYPE A:REFER ILLUST. |
90105-17008 |
US $5.76 |
||
|
43211K
|
43211K
90105-17009 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=15.9,TYPE B:REFER ILLUST. |
90105-17009 |
from US $4.23 |
||
|
43211K
|
43211K
90105-17010 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=15,TYPE C:REFER ILLUST. |
90105-17010 |
from US $4.19 |
||
|
43211K
|
43211K
90105-17011 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=14,TYPE D:REFER ILLUST. |
90105-17011 |
from US $3.80 |
||
|
43211K
|
43211K
90105-17012 Bolt (For Rear Axle Carrier Rh)[04.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15# OD=17,TYPE A:REFER ILLUST. |
90105-17012 |
from US $3.96 |
||
|
43211L
|
43211L
90178-17002 Nut (For Rear Axle Carrier Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
90178-17002 |
from US $1.64 |
||
|
43212
|
43212
43212-02190
Knuckle, Steering, Lh
[07.2007 - 07.2008] ADE150,NDE150,ZRE15#,ZZE150 |
43212-02190 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-02350
Knuckle, Steering, Lh
[07.2007 - 07.2008] ADE150,NDE150,ZRE15#,ZZE150 |
43212-02350 |
— | ||
|
43212
|
43212
43212-02350
Knuckle, Steering, Lh
[08.2008 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
43212-02350 |
— | ||
|
43212D
|
43212D
90105-17008 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=17,TYPE A:REFER ILLUST. |
90105-17008 |
US $5.76 |
||
|
43212D
|
43212D
90105-17009 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=15.9,TYPE B:REFER ILLUST. |
90105-17009 |
from US $4.23 |
||
|
43212D
|
43212D
90105-17010 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=15,TYPE C:REFER ILLUST. |
90105-17010 |
from US $4.19 |
||
|
43212D
|
43212D
90105-17011 Bolt (For Steering Knuckle Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS OD=14,TYPE D:REFER ILLUST. |
90105-17011 |
from US $3.80 |
||
|
43212D
|
43212D
90105-17012 Bolt (For Rear Axle Carrier Rh)[04.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15# OD=17,TYPE A:REFER ILLUST. |
90105-17012 |
from US $3.96 |
||
|
43212E
|
43212E
90178-17002 Nut (For Rear Axle Carrier Rh)[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
90178-17002 |
from US $1.64 |
||
|
43330K
|
43330K
43330-09630
Joint Assy, Lower Ball, Front Rh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
43330-09630 |
— | ||
| replacement | |||||
|
43330K
|
43330K
43330-09631 Joint Assy, Lower Ball, Front[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
43330-09631 |
from US $50.77 |
||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[07.2007 - 03.2009] ADE150 |
90171-14003 |
US $1.76 |
||
|
43330M
|
43330M
90105-12346 Bolt (For Front Lower Ball Joint)[07.2007 - 03.2009] ADE150 |
90105-12346 |
from US $1.19 |
||
|
43330S
|
43330S
90178-12019 Nut (For Front Lower Ball Joint Setting)[07.2007 - 03.2009] ADE150 |
90178-12019 |
from US $1.15 |
||
|
43340A
|
43340A
43330-09630
Joint Assy, Lower Ball, Front Rh
[07.2007 - 03.2009] ADE150 |
43330-09630 |
— | ||
| replacement | |||||
|
43340A
|
43340A
43330-09631 Joint Assy, Lower Ball, Front[07.2007 - 03.2009] ADE150 |
43330-09631 |
from US $50.77 |
||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[07.2007 - 03.2009] ADE150 |
90171-14003 |
US $1.76 |
||
|
43340C
|
43340C
90105-12346 Bolt (For Front Lower Ball Joint)[07.2007 - 03.2009] ADE150 |
90105-12346 |
from US $1.19 |
||
|
43340G
|
43340G
90178-12019 Nut (For Front Lower Ball Joint Setting)[07.2007 - 03.2009] ADE150 |
90178-12019 |
from US $1.15 |
||
|
48068
|
48068
48068-02160
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[07.2007 - 03.2009] ADE150 |
48068-02160 |
— | ||
|
48068H
|
48068H
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
90105-16090 |
from US $4.74 |
||
|
48068H
|
48068H
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2007 - 03.2009] ADE150 |
91554-L1690 |
from US $6.61 |
||
|
48068K
|
48068K
90178-16006 Nut(For Front Suspension Lower Arm No.2 Rh)[07.2007 - 03.2009] ADE150 |
90178-16006 |
from US $1.58 |
||
|
48068M
|
48068M
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
90105-16090 |
from US $4.74 |
||
|
48068M
|
48068M
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2007 - 03.2009] ADE150 |
91554-L1690 |
from US $6.61 |
||
|
48069
|
48069
48069-02160
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[07.2007 - 03.2009] ADE150 |
48069-02160 |
— | ||
|
48069D
|
48069D
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
90105-16090 |
from US $4.74 |
||
|
48069D
|
48069D
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2007 - 03.2009] ADE150 |
91554-L1690 |
from US $6.61 |
||
|
48069F
|
48069F
90178-16006 Nut(For Front Suspension Lower Arm No.2 Rh)[07.2007 - 03.2009] ADE150 |
90178-16006 |
from US $1.58 |
||
|
48069H
|
48069H
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
90105-16090 |
from US $4.74 |
||
|
48069H
|
48069H
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2007 - 03.2009] ADE150 |
91554-L1690 |
from US $6.61 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.77 |
||
