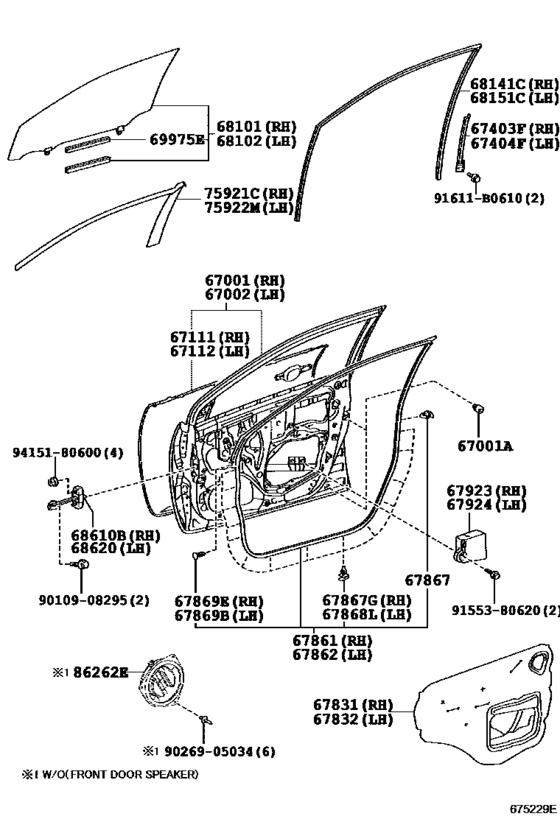

Front Door Panel & Glass ([07.2007 - ] DOOR PANEL (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-02280
Panel Sub-Assy, Front Door, Rh
[07.2007 - 03.2009] ADE150 |
67001-02280 |
— | ||
|
67001A
|
67001A
90541-09124 Cushion, Luggage Compartment Door[07.2007 - 06.2008] ADE150,NDE150,ZRE15#,ZZE150 |
90541-09124 |
from US $1.60 |
||
|
67001A
|
67001A
90541-09143 Cushion, Front Door Panel[07.2008 - 03.2009] ADE150 |
90541-09143 |
from US $1.60 |
||
|
67002
|
67002
67002-02280
Panel Sub-Assy, Front Door, Lh
[07.2007 - 03.2009] ADE150 |
67002-02280 |
— | ||
|
67111
|
67111
67111-02150
Panel, Front Door, Outer Rh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
67111-02150 |
— | ||
|
67112
|
67112
67112-02150
Panel, Front Door, Outer Lh
[07.2007 - 03.2009] ADE150 |
67112-02150 |
— | ||
|
67403F
|
67403F
67403-12260 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [07.2007 - 03.2009] ADE150 |
67403-12260 |
US $19.22 |
||
|
67404F
|
67404F
67404-12250
Frame Sub-Assy, Front Door, Rear Lower Lh
[07.2007 - 03.2009] ADE150 |
67404-12250 |
— | ||
|
67831
|
67831
67831-02210
Cover, Front Door Service Hole, Rh
[07.2007 - 03.2009] ADE150 |
67831-02210 |
— | ||
|
67832
|
67832
67832-02210
Cover, Front Door Service Hole, Lh
[07.2007 - 03.2009] ADE150 |
67832-02210 |
— | ||
|
67861
|
67861
67861-02190
Weatherstrip, Front Door, Rh
[07.2007 - 03.2009] ADE150 |
67861-02190 |
— | ||
|
67862
|
67862
67862-02190
Weatherstrip, Front Door, Lh
[07.2007 - 03.2009] ADE150 |
67862-02190 |
— | ||
|
67867
|
67867
90467-04034 Clip[07.2007 - 03.2009] ADE150 |
90467-04034 |
US $0.96 |
||
|
67867G
|
67867G
67867-12150 Clip(For Hood Air Intake Duct Seal)[07.2007 - 03.2009] ADE150 |
67867-12150 |
from US $1.60 |
||
|
67868L
|
67868L
67867-12150 Clip(For Hood Air Intake Duct Seal)[07.2007 - 03.2009] ADE150 |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20030 Clip, Door Weatherstrip(For Front Door)[07.2007 - 03.2009] ADE150 |
67869-20030 |
from US $0.82 |
||
|
67869E
|
67869E
67869-20030 Clip, Door Weatherstrip(For Front Door)[07.2007 - 03.2009] ADE150 |
67869-20030 |
from US $0.82 |
||
|
67923
|
67923
67923-12040
Cushion, Front Door Stiffener, No.1
[07.2007 - 03.2009] ADE150 |
67923-12040 |
— | ||
|
67924
|
67924
67924-12040
Cushion, Front Door Stiffener, No.2
[07.2007 - 03.2009] ADE150 |
67924-12040 |
— | ||
|
68101
|
68101
68101-02250
Glass Sub-Assy, Front Door, Rh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS *TEM,T=3.5,GREEN |
68101-02250 |
— | ||
| replacement | |||||
|
68101
|
68101
68101-02251
Glass Sub-Assy, Front Door, Rh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS *TEM,T=3.5,GREEN |
68101-02251 |
— | ||
|
68101
|
68101
68101-02251
Glass Sub-Assy, Front Door, Rh
[04.2012 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 *TEM,T=3.5,GREEN |
68101-02251 |
— | ||
|
68102
|
68102
68102-02250
Glass Sub-Assy, Front Door, Lh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS *TEM,T=3.5,GREEN |
68102-02250 |
— | ||
| replacement | |||||
|
68102
|
68102
68102-02251
Glass Sub-Assy, Front Door, Lh
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS *TEM,T=3.5,GREEN |
68102-02251 |
— | ||
|
68102
|
68102
68102-02251
Glass Sub-Assy, Front Door, Lh
[04.2012 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 *TEM,T=3.5,GREEN |
68102-02251 |
— | ||
|
68141C
|
68141C
68141-02220
Run, Front Door Glass, Rh
[07.2007 - 03.2009] ADE150 |
68141-02220 |
— | ||
|
68151C
|
68151C
68151-02200
Run, Front Door Glass, Lh
[07.2007 - 03.2009] ADE150 |
68151-02200 |
— | ||
|
68610B
|
68610B
68610-02130
Check Assy, Front Door, Rh
[07.2007 - 03.2009] ADE150 |
68610-02130 |
— | ||
|
68610B
|
68610B
68610-02131
Check Assy, Front Door, Rh
[04.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
68610-02131 |
— | ||
|
68620
|
68620
68610-02130
Check Assy, Front Door, Rh
[07.2007 - 03.2009] ADE150 |
68610-02130 |
— | ||
|
68620
|
68620
68610-02131
Check Assy, Front Door, Rh
[04.2010 - 06.2010] ADE150,NDE150,NRE150,ZRE15# |
68610-02131 |
— | ||
|
69975E
|
69975E
69975-16020 Filler, Rear Door Glass Channel[07.2007 - 03.2009] ADE150 |
69975-16020 |
US $8.16 |
||
|
75921C
|
75921C
75921-02090
Tape, Black Out, No.1 Rh
[07.2007 - 03.2009] ADE150 |
75921-02090 |
— | ||
|
75922M
|
75922M
75922-02090
Tape, Black Out, No.1 Lh
[07.2007 - 03.2009] ADE150 |
75922-02090 |
— | ||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $2.24 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
