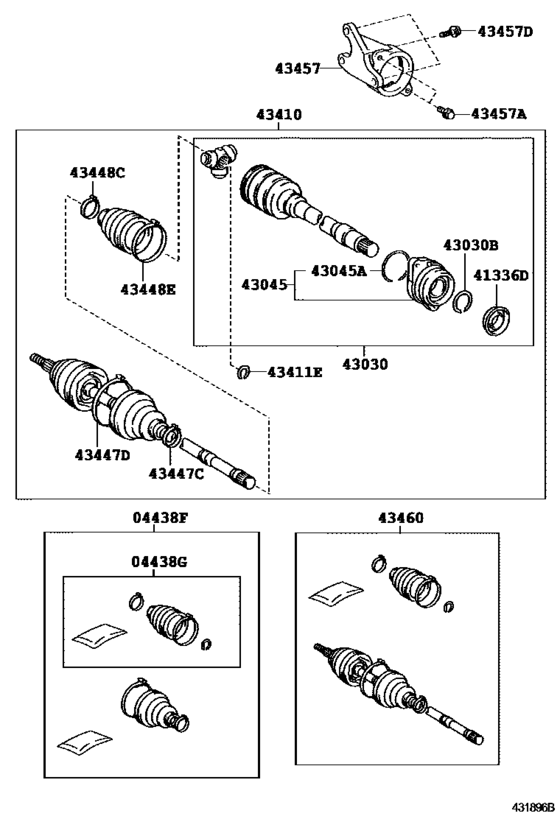

Front Drive Shaft ([07.2007 - ] RH (0707- )ADE150) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-02410
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.2007 - 03.2009] ADE150 |
04427-02410 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-02411
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[07.2007 - 03.2009] ADE150 |
04427-02411 |
— | ||
|
04438F
|
04438F
04427-02411
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2010 - 01.2014] ADE150 |
04427-02411 |
— | ||
|
04438G
|
04438G
04437-05070
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[07.2007 - 03.2009] ADE150 |
04437-05070 |
— | ||
|
41336D
|
41336D
41336-05100
Cover, Front Drive Shaft Dust, Rh
[07.2007 - 03.2009] ADE150 |
41336-05100 |
— | ||
|
43030
|
43030
43030-05200
Joint Assy, Front Drive Inboard, Rh
[07.2007 - 03.2009] ADE150 |
43030-05200 |
— | ||
|
43030B
|
43030B
43425-05050
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[07.2007 - 03.2009] ADE150 |
43425-05050 |
— | ||
|
43045
|
43045
43045-64020 Case Sub Assy, Drive Shaft Bearing[07.2007 - 03.2009] ADE150 |
43045-64020 |
from US $54.60 |
||
|
43045A
|
43045A
90520-69002 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[07.2007 - 03.2009] ADE150 |
90520-69002 |
US $0.79 |
||
|
43410
|
43410
43410-02590
Shaft Assy, Front Drive, Rh
[07.2007 - 03.2009] ADE150 |
43410-02590 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-02591
Shaft Assy, Front Drive, Rh
[07.2007 - 03.2009] ADE150 |
43410-02591 |
— | ||
|
43410
|
43410
43410-02591
Shaft Assy, Front Drive, Rh
[09.2010 - 01.2014] ADE150 |
43410-02591 |
— | ||
|
43411E
|
43411E
43425-05040
Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
[07.2007 - 03.2009] ADE150 |
43425-05040 |
— | ||
|
43447C
|
43447C
42345-05280
Clamp (For Front Axle Outboard Joint Boot Rh)
[07.2007 - 03.2009] ADE150 |
42345-05280 |
— | ||
|
43447D
|
43447D
42345-05270 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.2007 - 03.2009] ADE150 |
42345-05270 |
US $6.84 |
||
|
43448C
|
43448C
42345-05250
Clamp (For Front Drive Shaft Damper Lh)
[07.2007 - 03.2009] ADE150 |
42345-05250 |
— | ||
|
43448E
|
43448E
42345-05210
Clamp (For Front Axle Inboard Joint Boot Rh)
[07.2007 - 03.2009] ADE150 |
42345-05210 |
— | ||
|
43457
|
43457
43457-05050
Bracket, Drive Shaft Bearing
[07.2007 - 03.2009] ADE150 |
43457-05050 |
— | ||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[07.2007 - 03.2009] ADE150 *10-1.25PX22-19.5 |
90105-10361 |
from US $1.01 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[07.2007 - 03.2009] ADE150 |
90105-10381 |
US $1.60 |
||
|
43460
|
43460
43470-09S90
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2007 - 03.2009] ADE150 |
43470-09S90 |
— | ||
| replacement | |||||
|
43460
|
43460
43470-09S91
Shaft Assy, Front Drive Outboard Joint, Rh
[07.2007 - 03.2009] ADE150 |
43470-09S91 |
— | ||
|
43460
|
43460
43470-09S91
Shaft Assy, Front Drive Outboard Joint, Rh
[09.2010 - 01.2014] ADE150 |
43470-09S91 |
— | ||
