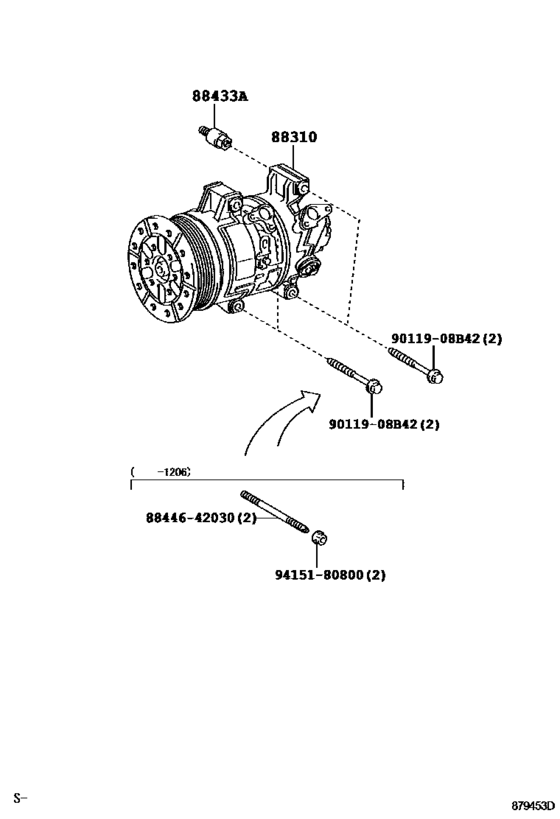

Heating & Air Conditioning - Compressor ([07.2007 - ] (0707- )ADE150) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-02480
Compressor Assy, W/pulley
[07.2007 - 03.2009] ADE150 |
88310-02480 |
— | ||
|
88433A
|
88433A
88433-20040
Bracket, Compressor Mounting, No.1
[07.2007 - 03.2009] ADE150 |
88433-20040 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8844642030
|
8844642030
88446-42030 Bolt, Cooler |
88446-42030 |
US $2.62 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
