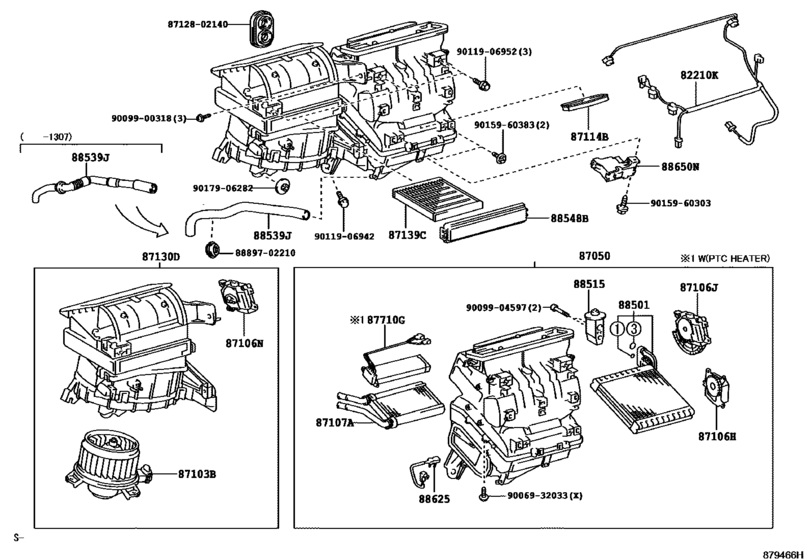

Heating & Air Conditioning - Cooler Unit ([07.2007 - ] AUTO AIR CONDITIONER (0707- )RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-02060
Harness Assy, Air Conditioner
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
82212-02060 |
— | ||
|
87050
|
87050
87050-02A60
Radiator Assy, Air Conditioner
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87050-02A60 |
— | ||
|
87103B
|
87103B
87103-02300
Motor Sub-Assy, Blower W/fan
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87103-02300 |
— | ||
|
87106H
|
87106H
87106-02360
Servo Sub-Assy, Damper(For Airmix)
[07.2007 - 03.2009] ADE150..E; ADE150..N AUTO AIR CONDITIONER |
87106-02360 |
— | ||
|
87106J
|
87106J
87106-02370
Servo Sub-Assy, Damper(For Mode)
[07.2007 - 03.2009] ADE150..E; ADE150..N AUTO AIR CONDITIONER |
87106-02370 |
— | ||
|
87106N
|
87106N
87106-02380
Servo Sub-Assy, Damper(For Recirculation)
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87106-02380 |
— | ||
|
87107A
|
87107A
87107-02210
Unit Sub-Assy, Heater Radiator
[07.2007 - 03.2009] ADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS |
87107-02210 |
— | ||
|
87114B
|
87114B
87114-0K010
Cover, Heater
[07.2007 - 03.2009] ADE150 |
87114-0K010 |
— | ||
|
87130D
|
87130D
87130-02420
Blower Assy
[07.2007 - 10.2008] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87130-02420 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-02421
Blower Assy
[07.2007 - 10.2008] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87130-02421 |
— | ||
|
87130D
|
87130D
87130-02421
Blower Assy
[11.2008 - 03.2009] ADE150..E; ADE150..N..SA AUTO AIR CONDITIONER |
87130-02421 |
— | ||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[07.2007 - 03.2009] ADE150 MICRO DUST FILTER |
87139-30040 |
from US $30.40 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[07.2007 - 03.2009] ADE150 MICRO DUST FILTER |
87139-YZZ45 |
US $125.66 |
||
|
87710G
|
87710G
87710-02050
Quick Heater Assy
[07.2007 - 03.2009] ADE150..SA |
87710-02050 |
— | ||
| replacement | |||||
|
87710G
|
87710G
87710-02010 Quick Heater Assy[07.2007 - 03.2009] ADE150..SA |
87710-02010 |
US $206.75 |
||
|
88501
|
88501
88501-0K120
Evaporator Sub-Assy, Cooler, No.1
[07.2007 - 10.2008] ZRE151,ZZE150..SA;ZRE151,ZZE150..N..GEN;ADE150,NDE150,ZRE152..E,N |
88501-0K120 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-12510 Evaporator Sub-Assy, Cooler, No.1[07.2007 - 10.2008] ZRE151,ZZE150..SA;ZRE151,ZZE150..N..GEN;ADE150,NDE150,ZRE152..E,N |
88501-12510 |
US $537.01 |
||
|
88501
|
88501
88501-0K121
Evaporator Sub-Assy, Cooler, No.1
[11.2008 - 03.2009] ADE150 |
88501-0K121 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-12510 Evaporator Sub-Assy, Cooler, No.1[11.2008 - 03.2009] ADE150 |
88501-12510 |
US $537.01 |
||
|
88501
|
88501
88501-12510 Evaporator Sub-Assy, Cooler, No.1[01.2013 - 01.2014] NRE150..SA;NRE150..N..GEN;ADE150,ZRE15#..E,N; ZRE151..RHD..D..GEN;NRE150,ZRE152..D..GEN AIR CONDITIONER-MANUAL AIR CONDITIONER |
88501-12510 |
US $537.01 |
||
|
88515
|
88515
88515-02160
Valve, Cooler Expansion
[07.2007 - 03.2009] ADE150,ZRE152..E,N;ZRE151,ZZE150..(5F,5FS)..SA;NDE150,ZRE151,ZZE150..(5F,5FS)..N.. GEN |
88515-02160 |
— | ||
|
88515
|
88515
88515-02600
Valve, Cooler Expansion
[09.2012 - 01.2014] NRE150..SA;NRE150..N..GEN;ADE150,ZRE15#..E,N; ZRE151..RHD..D..GEN;NRE150,ZRE152..D..GEN AIR CONDITIONER-MANUAL AIR CONDITIONER |
88515-02600 |
— | ||
|
88539J
|
88539J
88539-02130
Hose, Drain Cooler
[07.2007 - 03.2009] ADE150..SA |
88539-02130 |
— | ||
| replacement | |||||
|
88539J
|
88539J
88539-02280
Hose, Drain Cooler
[07.2007 - 03.2009] ADE150..SA |
88539-02280 |
— | ||
|
88539J
|
88539J
88539-02280
Hose, Drain Cooler
[07.2013 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
88539-02280 |
— | ||
|
88548B
|
88548B
88548-02080
Case, Air Filter
[07.2007 - 03.2009] ADE150..SA |
88548-02080 |
— | ||
|
88625
|
88625
88625-02110 Thermistor, Cooler, No.1COOLER, NO.1 [07.2007 - 03.2009] ADE150 |
88625-02110 |
US $9.17 |
||
|
88650N
|
88650N
88650-02460
Amplifier Assy, Air Conditioner
[07.2007 - 03.2009] ADE150..E; ADE150..N AUTO AIR CONDITIONER |
88650-02460 |
— | ||
|
88650N
|
88650N
88650-02680
Amplifier Assy, Air Conditioner
[03.2009 - 06.2010] ADE150..E |
88650-02680 |
— | ||
|
8712802140
|
8712802140
87128-02140
Grommet, Heater
|
87128-02140 |
— | ||
|
9006932033
|
9006932033
90069-32033
New Genuine Part
|
90069-32033 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009904597
|
9009904597
90099-04597
Bolt(For Cooler Expansion Valve)
|
90099-04597 |
— | ||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
