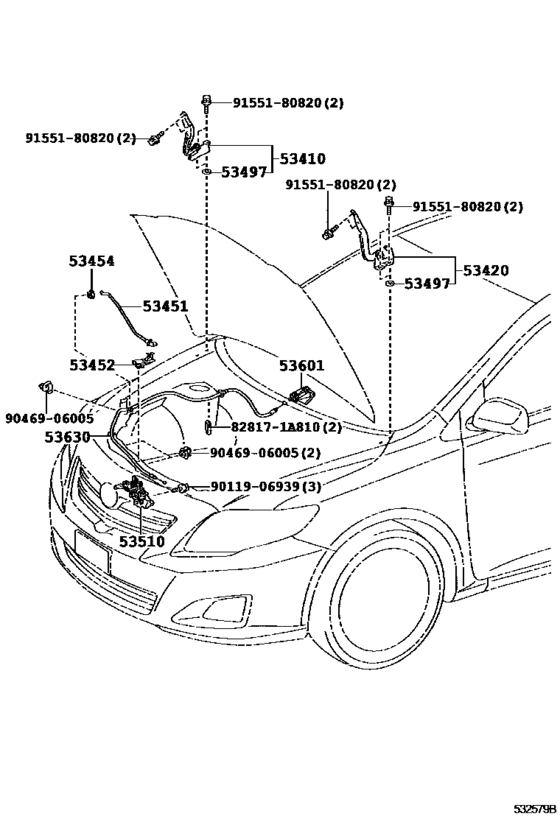

Hood Lock & Hinge ([07.2007 - ] (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-02110
Hinge Assy, Hood, Rh
[07.2007 - 03.2009] ADE150 |
53410-02110 |
— | ||
|
53420
|
53420
53420-02110
Hinge Assy, Hood, Lh
[07.2007 - 03.2009] ADE150 |
53420-02110 |
— | ||
|
53451
|
53451
53440-02110
Rod, Hood Support
[07.2007 - 03.2009] ADE150 |
53440-02110 |
— | ||
|
53452
|
53452
53452-02050
Holder, Hood Stay
[07.2007 - 03.2009] ADE150 |
53452-02050 |
— | ||
|
53454
|
53454
53454-12030 Clip, Hood Support RodHOOD SUPPORT ROD [07.2007 - 03.2009] ADE150 |
53454-12030 |
from US $1.44 |
||
|
53497
|
53497
53497-0K020
Pad, Hood Hinge, No.1
[07.2007 - 03.2009] ADE150 T=1.0 |
53497-0K020 |
— | ||
|
53497
|
53497
53497-0K070
Pad, Hood Hinge, No.1
[07.2007 - 03.2009] ADE150 T=2.0 |
53497-0K070 |
— | ||
|
53510
|
53510
53510-02290
Lock Assy, Hood
[07.2007 - 03.2009] ADE150..SA |
53510-02290 |
— | ||
| replacement | |||||
|
53510
|
53510
53510-02291
Lock Assy, Hood
[07.2007 - 03.2009] ADE150..SA |
53510-02291 |
— | ||
|
53510
|
53510
53510-02291
Lock Assy, Hood
[06.2011 - 01.2014] ZRE151..N..SA;ADE150,NRE150,ZRE153..SA |
53510-02291 |
— | ||
|
53601
|
53601
53601-02050-B0
Lever Sub-Assy, Hood Lock Control
[03.2011 - 04.2014] ADE150,NDE150,NRE150,ZRE15# DK.GRAY,TRIM1# |
53601-02050-B0 |
— | ||
|
53601
|
53601
53601-02050-E0
Lever Sub-Assy, Hood Lock Control
[03.2011 - 01.2014] ADE150,NDE150,NRE150,ZRE15#..E,N GREGE,TRIM4# |
53601-02050-E0 |
— | ||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
53601-52010-B3 |
US $23.56 |
||
|
53601
|
53601
53601-52010-E4 Lever Sub-Assy, Hood Lock Control[07.2007 - 03.2009] ADE150 GREGE,TRIM4# |
53601-52010-E4 |
US $20.27 |
||
|
53630
|
53630
53630-02160
Cable Assy, Hood Lock Control
[07.2007 - 03.2009] ADE150..SA |
53630-02160 |
— | ||
| replacement | |||||
|
53630
|
53630
53630-12770
Cable Assy, Hood Lock Control
[07.2007 - 03.2009] ADE150..SA |
53630-12770 |
— | ||
|
53630
|
53630
53630-12770
Cable Assy, Hood Lock Control
[08.2012 - 01.2014] ZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,1 53..RHD |
53630-12770 |
— | ||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.28 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
