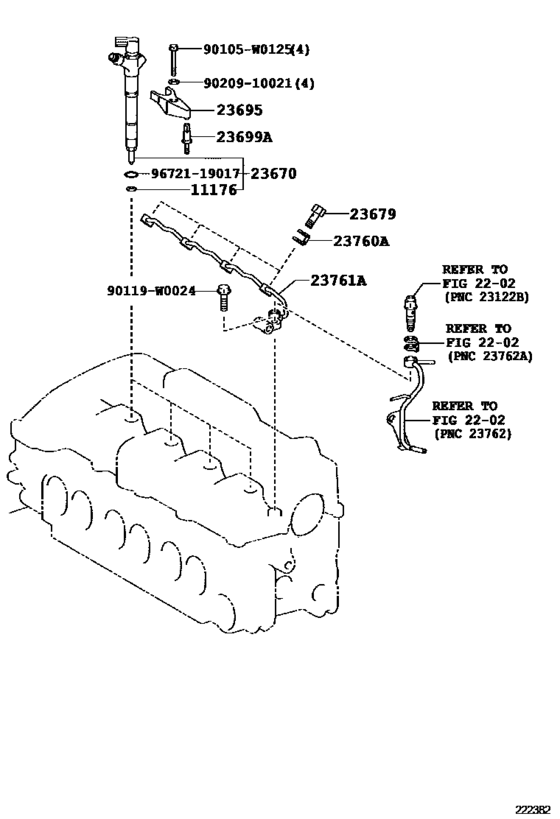

Injection Nozzle ([03.2009 - ] (0903- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-26010
Seat, Injection Nozzle
[07.2007 - 11.2008] 1ADFTV..ADE150 |
11176-26010 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-51010 Seat, Injection NozzleINJECTION NOZZLE [07.2007 - 11.2008] 1ADFTV..ADE150 |
11176-51010 |
US $7.68 |
||
|
11176
|
11176
11176-26020 Seat, Injection NozzleINJECTION NOZZLE [03.2009 - 06.2010] 1ADFTV..ADE150 |
11176-26020 |
US $5.28 |
||
|
11176
|
11176
11176-26030
Seat, Injection Nozzle
[11.2008 - 03.2009] 1ADFTV..ADE150 |
11176-26030 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-51010 Seat, Injection NozzleINJECTION NOZZLE [11.2008 - 03.2009] 1ADFTV..ADE150 |
11176-51010 |
US $7.68 |
||
|
23670
|
23670
23670-09180
Injector Assy
[07.2007 - 12.2007] 1ADFTV..ADE150 |
23670-09180 |
— | ||
| replacement | |||||
|
23670
|
23670
23670-09280
Injector Assy
[07.2007 - 12.2007] 1ADFTV..ADE150 |
23670-09280 |
— | ||
|
23670
|
23670
23670-09280
Injector Assy
[12.2007 - 03.2009] 1ADFTV..ADE150 |
23670-09280 |
— | ||
|
23670
|
23670
23670-29115
Injector Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23670-29115 |
— | ||
| replacement | |||||
|
23670
|
23670
23670-29116
Injector Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23670-29116 |
— | ||
|
23679
|
23679
23679-0R010 Screw, Injector FollowINJECTOR FOLLOW [07.2007 - 03.2009] 1ADFTV..ADE150 |
23679-0R010 |
US $8.74 |
||
|
23679
|
23679
23679-26020 Screw, Injector FollowINJECTOR FOLLOW [03.2009 - 06.2010] 1ADFTV..ADE150 |
23679-26020 |
US $4.02 |
||
|
23695
|
23695
23695-0R012
Clamp, Nozzle Holder, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23695-0R012 |
— | ||
|
23695
|
23695
23695-0R021 Clamp, Nozzle Holder, No.1NOZZLE HOLDER, NO.1 [03.2009 - 06.2010] 1ADFTV..ADE150 |
23695-0R021 |
US $12.23 |
||
|
23699A
|
23699A
23699-0R010
Seat, Nozzle Holder Clamp
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23699-0R010 |
— | ||
| replacement | |||||
|
23699A
|
23699A
23699-26010 Seat, Nozzle Holder ClampNOZZLE HOLDER CLAMP [07.2007 - 03.2009] 1ADFTV..ADE150 |
23699-26010 |
from US $3.41 |
||
|
23699A
|
23699A
23699-0R021
Seat, Nozzle Holder Clamp
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23699-0R021 |
— | ||
|
23760A
|
23760A
90904-30008 Gasket[03.2009 - 06.2010] 1ADFTV..ADE150 |
90904-30008 |
from US $5.17 |
||
|
23761A
|
23761A
23761-0R011
Pipe, Nozzle Leakage, No.1
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23761-0R011 |
— | ||
| replacement | |||||
|
23761A
|
23761A
23761-26010
Pipe, Nozzle Leakage, No.1
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23761-26010 |
— | ||
|
23761A
|
23761A
23761-0R040
Pipe, Nozzle Leakage, No.1
[03.2009 - 06.2010] 1ADFTV..ADE150 (L) |
23761-0R040 |
— | ||
|
23761A
|
23761A
23761-26010
Pipe, Nozzle Leakage, No.1
[01.2009 - 03.2009] 1ADFTV..ADE150 |
23761-26010 |
— | ||
|
23761A
|
23761A
23761-26030
Pipe, Nozzle Leakage, No.1
[03.2009 - 06.2010] 1ADFTV..ADE150 (J) |
23761-26030 |
— | ||
|
90105W0125
|
90105W0125
90105-W0125
New Genuine Part
|
90105-W0125 |
— | ||
|
90119W0024
|
90119W0024
90119-W0024
New Genuine Part
|
90119-W0024 |
— | ||
|
9020910021
|
9020910021
90209-10021 WASHER |
90209-10021 |
from US $0.72 |
||
|
9672119017
|
9672119017
96721-19017 O-Ring |
96721-19017 |
from US $1.99 |
||
