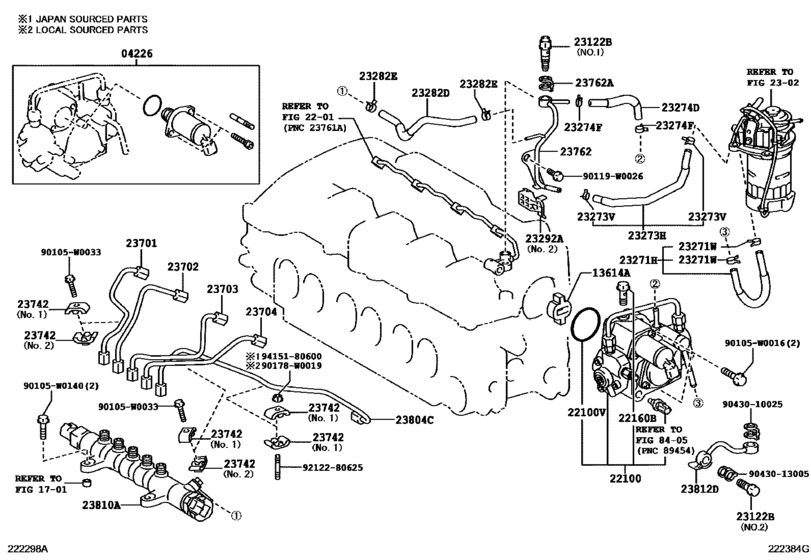

Injection Pump Assembly ([03.2009 - ] (0903- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-0L030
Valve Kit, Suction Control
[07.2007 - 03.2009] 1ADFTV..ADE150 |
04226-0L030 |
— | ||
| replacements | |||||
|
04226
|
04226
04226-26020
Valve Kit, Suction Control
[07.2007 - 03.2009] 1ADFTV..ADE150 |
04226-26020 |
— | ||
|
04226
|
04226
04226-26030
Valve Kit, Suction Control
[07.2007 - 03.2009] 1ADFTV..ADE150 |
04226-26030 |
— | ||
|
04226
|
04226
04226-26010
Valve Kit, Suction Control
[03.2009 - 06.2010] 1ADFTV..ADE150 |
04226-26010 |
— | ||
|
13614A
|
13614A
13614-26010 Coupling, Supply Pump Drive, No.1SUPPLY PUMP DRIVE, NO.1 [07.2007 - 03.2009] 1ADFTV..ADE150 |
13614-26010 |
US $14.85 |
||
|
22100
|
22100
22100-0R010
Pump Assy, Injection Or Supply
[07.2007 - 10.2007] 1ADFTV..ADE150 |
22100-0R010 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-0R070
Pump Assy, Injection Or Supply
[07.2007 - 10.2007] 1ADFTV..ADE150 |
22100-0R070 |
— | ||
|
22100
|
22100
22100-0R011
Pump Assy, Injection Or Supply
[10.2007 - 03.2009] 1ADFTV..ADE150 |
22100-0R011 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-0R070
Pump Assy, Injection Or Supply
[10.2007 - 03.2009] 1ADFTV..ADE150 |
22100-0R070 |
— | ||
|
22100
|
22100
22100-0R040
Pump Assy, Injection Or Supply
[03.2009 - 06.2010] 1ADFTV..ADE150 |
22100-0R040 |
— | ||
|
22100V
|
22100V
22193-0R020
Ring, O(For Injection Pump)
[07.2007 - 03.2009] 1ADFTV..ADE150 |
22193-0R020 |
— | ||
|
22160B
|
22160B
22569-0R020 Screw[03.2009 - 06.2010] 1ADFTV..ADE150 |
22569-0R020 |
US $11.79 |
||
|
23122B
|
23122B
23769-26030 Valve, Fuel CheckCHECK [03.2009 - 06.2010] 1ADFTV..ADE150 NO.1 |
23769-26030 |
US $51.68 |
||
|
23122B
|
23122B
2376A-26010 Valve, Check[03.2009 - 06.2010] 1ADFTV..ADE150 NO.2 |
2376A-26010 |
US $94.64 |
||
| replacement | |||||
|
23122B
|
23122B
2376A-26030 Valve, Check[03.2009 - 06.2010] 1ADFTV..ADE150 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23122B
|
23122B
2376A-26020 Valve, Check[12.2010 - 10.2011] 1ADFTV..ADE150 NO.2 |
2376A-26020 |
US $94.64 |
||
| replacement | |||||
|
23122B
|
23122B
2376A-26030 Valve, Check[12.2010 - 10.2011] 1ADFTV..ADE150 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23122B
|
23122B
2376A-26030 Valve, Check[10.2011 -] 1ADFTV..ADE150 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23271H
|
23271H
23271-0R030
Hose, Fuel, No.1
[06.2009 - 06.2010] 1ADFTV..ADE150 |
23271-0R030 |
— | ||
|
23271H
|
23271H
23271-26060
Hose, Fuel, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23271-26060 |
— | ||
|
23271H
|
23271H
23271-26190
Hose, Fuel, No.1
[03.2009 - 06.2009] 1ADFTV..ADE150 |
23271-26190 |
— | ||
|
23271W
|
23271W
96132-51300 Clip(For Ventilation Hose No.2)[03.2009 - 06.2010] 1ADFTV..ADE150 |
96132-51300 |
from US $1.56 |
||
|
23273H
|
23273H
23273-0R010
Hose, Fuel, No.2
[06.2009 - 06.2010] 1ADFTV..ADE150 |
23273-0R010 |
— | ||
|
23273H
|
23273H
23273-26040
Hose, Fuel, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23273-26040 |
— | ||
|
23273H
|
23273H
23273-26070
Hose, Fuel, No.2
[03.2009 - 06.2009] 1ADFTV..ADE150 |
23273-26070 |
— | ||
|
23273V
|
23273V
96132-51100 Clip (For Hose)[03.2009 - 06.2010] 1ADFTV..ADE150 |
96132-51100 |
from US $1.68 |
||
|
23274D
|
23274D
23274-26020 Hose, Fuel, No.3FUEL, NO.3 [07.2007 - 03.2009] 1ADFTV..ADE150 |
23274-26020 |
US $12.52 |
||
|
23274D
|
23274D
23274-26080
Hose, Fuel, No.3
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23274-26080 |
— | ||
|
23274F
|
23274F
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[07.2007 - 03.2009] 1ADFTV..ADE150 |
96135-51100 |
from US $1.93 |
||
|
23282D
|
23282D
23282-26030
Hose, Fuel, No.4
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23282-26030 |
— | ||
|
23282D
|
23282D
23282-26070
Hose, Fuel, No.4
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23282-26070 |
— | ||
|
23282E
|
23282E
90467-11076 Clamp Or Clip(For Air Hose, No.5)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90467-11076 |
US $3.32 |
||
|
23292A
|
23292A
23292-0R010
Protector, Fuel Hose
[03.2009 - 06.2010] 1ADFTV..ADE150 NO.2 |
23292-0R010 |
— | ||
|
23701
|
23701
23701-0R010
Pipe Sub-Assy, Injection, No.1
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23701-0R010 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-26030
Pipe Sub-Assy, Injection, No.1
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23701-26030 |
— | ||
|
23701
|
23701
23701-0R030
Pipe Sub-Assy, Injection, No.1
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23701-0R030 |
— | ||
|
23701
|
23701
23701-26030
Pipe Sub-Assy, Injection, No.1
[01.2009 - 03.2009] 1ADFTV..ADE150 |
23701-26030 |
— | ||
|
23702
|
23702
23702-0R010
Pipe Sub-Assy, Injection, No.2
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23702-0R010 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-26030
Pipe Sub-Assy, Injection, No.2
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23702-26030 |
— | ||
|
23702
|
23702
23702-0R030
Pipe Sub-Assy, Injection, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23702-0R030 |
— | ||
|
23702
|
23702
23702-26030
Pipe Sub-Assy, Injection, No.2
[01.2009 - 03.2009] 1ADFTV..ADE150 |
23702-26030 |
— | ||
|
23703
|
23703
23703-0R010
Pipe Sub-Assy, Injection, No.3
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23703-0R010 |
— | ||
| replacement | |||||
|
23703
|
23703
23703-26030
Pipe Sub-Assy, Injection, No.3
[07.2007 - 01.2009] 1ADFTV..ADE150 |
23703-26030 |
— | ||
|
23703
|
23703
23703-0R030
Pipe Sub-Assy, Injection, No.3
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23703-0R030 |
— | ||
|
23703
|
23703
23703-26030
Pipe Sub-Assy, Injection, No.3
[01.2009 - 03.2009] 1ADFTV..ADE150 |
23703-26030 |
— | ||
|
23704
|
23704
23704-0R010
Pipe Sub-Assy, Injection, No.4
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23704-0R010 |
— | ||
| replacement | |||||
|
23704
|
23704
23704-26040 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [07.2007 - 03.2009] 1ADFTV..ADE150 |
23704-26040 |
US $38.44 |
||
|
23704
|
23704
23704-0R030
Pipe Sub-Assy, Injection, No.4
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23704-0R030 |
— | ||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[07.2007 - 03.2009] 1ADFTV..ADE150 NO.1 |
23742-27010 |
from US $10.20 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[07.2007 - 03.2009] 1ADFTV..ADE150 NO.2 |
23742-58020 |
from US $13.30 |
||
|
23762
|
23762
23762-0R011
Pipe, Nozzle Leakage, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23762-0R011 |
— | ||
|
23762
|
23762
23762-26021
Pipe, Nozzle Leakage, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23762-26021 |
— | ||
|
23762A
|
23762A
90430-10025 Gasket(For Turbo Oil Inlet Pipe)NOZZLE LEAKAGE PIPE NO.2 [07.2007 - 03.2009] 1ADFTV..ADE150 |
90430-10025 |
from US $0.94 |
||
|
23762A
|
23762A
90904-30012 Gasket, Nozzle Leakage Pipe No.2[03.2009 - 06.2010] 1ADFTV..ADE150 |
90904-30012 |
US $5.76 |
||
|
23804C
|
23804C
23804-0R010
Pipe Sub-Assy, Fuel Inlet
[07.2007 - 10.2008] 1ADFTV..ADE150 |
23804-0R010 |
— | ||
| replacement | |||||
|
23804C
|
23804C
23804-0R020
Pipe Sub-Assy, Fuel Inlet
[07.2007 - 10.2008] 1ADFTV..ADE150 |
23804-0R020 |
— | ||
|
23804C
|
23804C
23804-0R020
Pipe Sub-Assy, Fuel Inlet
[10.2008 - 03.2009] 1ADFTV..ADE150 |
23804-0R020 |
— | ||
|
23810A
|
23810A
23810-0R010
Rail Assy, Common
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23810-0R010 |
— | ||
| replacement | |||||
|
23810A
|
23810A
23810-0R011
Rail Assy, Common
[07.2007 - 03.2009] 1ADFTV..ADE150 |
23810-0R011 |
— | ||
|
23810A
|
23810A
23810-0R040
Rail Assy, Common
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23810-0R040 |
— | ||
| replacement | |||||
|
23810A
|
23810A
23810-0R041
Rail Assy, Common
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23810-0R041 |
— | ||
|
23810A
|
23810A
23810-0R041
Rail Assy, Common
[04.2012 -] 1ADFTV..ADE150 |
23810-0R041 |
— | ||
|
23812D
|
23812D
23812-26020
Pipe, Fuel, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
23812-26020 |
— | ||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0033
|
90105W0033
90105-W0033
New Genuine Part
|
90105-W0033 |
— | ||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9043010025
|
9043010025
90430-10025 Gasket(For Turbo Oil Inlet Pipe)NOZZLE LEAKAGE PIPE NO.2 |
90430-10025 |
from US $0.94 |
||
|
9043013005
|
9043013005
90430-13005 GASKET |
90430-13005 |
US $1.44 |
||
|
9212280625
|
9212280625
92122-80625 New Genuine Part |
92122-80625 |
US $0.87 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
