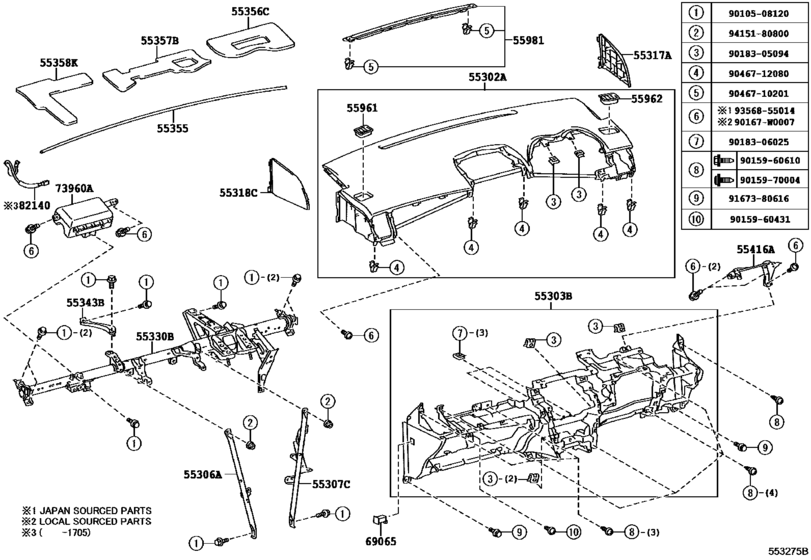

Instrument Panel & Glove Compartment ([07.2007 - ] (0707- )RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-02220-B0
Panel Sub-Assy, Instrument, Upper
[07.2007 - 05.2008] ADE150,ZRE15#,ZZE150..RHD DK.GRAY,TRIM1# |
55302-02220-B0 |
— | ||
| replacement | |||||
|
55302A
|
55302A
55302-02221-B0
Panel Sub-Assy, Instrument, Upper
[07.2007 - 05.2008] ADE150,ZRE15#,ZZE150..RHD DK.GRAY,TRIM1# |
55302-02221-B0 |
— | ||
|
55302A
|
55302A
55302-02220-E0
Panel Sub-Assy, Instrument, Upper
[07.2007 - 05.2008] ADE150,ZRE15#,ZZE150..RHD..(E,N) ASH BROWN,TRIM4# |
55302-02220-E0 |
— | ||
| replacement | |||||
|
55302A
|
55302A
55302-02221-E0
Panel Sub-Assy, Instrument, Upper
[07.2007 - 05.2008] ADE150,ZRE15#,ZZE150..RHD..(E,N) ASH BROWN,TRIM4# |
55302-02221-E0 |
— | ||
|
55302A
|
55302A
55302-02221-B0
Panel Sub-Assy, Instrument, Upper
[06.2008 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55302-02221-B0 |
— | ||
|
55302A
|
55302A
55302-02221-E0
Panel Sub-Assy, Instrument, Upper
[06.2008 - 03.2009] ADE150..SA ASH BROWN,TRIM4# |
55302-02221-E0 |
— | ||
|
55303B
|
55303B
55303-02240-B0
Panel Sub-Assy, Instrument, Lower
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55303-02240-B0 |
— | ||
|
55303B
|
55303B
55303-02240-E0
Panel Sub-Assy, Instrument, Lower
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55303-02240-E0 |
— | ||
|
55306A
|
55306A
55306-02260
Brace Sub-Assy, Instrument Panel, No.1
[07.2007 - 03.2009] ADE150..SA |
55306-02260 |
— | ||
|
55307C
|
55307C
55307-02120
Brace Sub-Assy, Instrument Panel, No.2
[07.2007 - 03.2009] ADE150..SA |
55307-02120 |
— | ||
|
55307C
|
55307C
55307-02270
Brace Sub-Assy, Instrument Panel, No.2
[06.2010 - 01.2014] ADE150,NRE150,ZRE151,153..(E,N)..SA |
55307-02270 |
— | ||
|
55317A
|
55317A
55317-02110-B0
Panel, Instrument Side, Rh
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
55317-02110-B0 |
— | ||
|
55317A
|
55317A
55317-02110-E0
Panel, Instrument Side, Rh
[07.2007 - 03.2009] ADE150 GREGE,TRIM4# |
55317-02110-E0 |
— | ||
|
55318C
|
55318C
55318-02010-B0
Panel, Instrument Side, Lh
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
55318-02010-B0 |
— | ||
|
55318C
|
55318C
55318-02010-E0
Panel, Instrument Side, Lh
[07.2007 - 03.2009] ADE150 GREGE,TRIM4# |
55318-02010-E0 |
— | ||
|
55330B
|
55330B
55330-02420
Reinforcement Assy, Instrument Panel
[07.2007 - 03.2009] ZRE151..RHD..(5F,5FS);ADE150,ZRE152,ZZE150..RHD |
55330-02420 |
— | ||
|
55343B
|
55343B
55343-12070 Brace, Instrument Panel To Cowl, Center[07.2007 - 03.2009] ADE150 |
55343-12070 |
US $11.07 |
||
|
55355
|
55355
55355-12110 Cushion, Instrument Panel, No.1[07.2007 - 03.2009] ADE150 |
55355-12110 |
US $10.32 |
||
|
55356C
|
55356C
55356-02100
Cushion, Instrument Panel, No.2
[07.2007 - 03.2009] ADE150 |
55356-02100 |
— | ||
|
55357B
|
55357B
55357-02090
Cushion, Instrument Panel, No.3
[07.2007 - 03.2009] ADE150 |
55357-02090 |
— | ||
|
55358K
|
55358K
55358-02050
Cushion, Instrument Panel, No.4
[07.2007 - 03.2009] ADE150 |
55358-02050 |
— | ||
|
55416A
|
55416A
55416-02090
Retainer, Meter Hood, No.1
[07.2007 - 03.2009] ADE150..SA |
55416-02090 |
— | ||
|
55961
|
55961
55961-02070-B0
Nozzle, Side Defroster, No.1
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
55961-02070-B0 |
— | ||
|
55961
|
55961
55961-02070-E0
Nozzle, Side Defroster, No.1
[07.2007 - 03.2009] ADE150 ASH BROWN,TRIM4# |
55961-02070-E0 |
— | ||
|
55962
|
55962
55962-02030-B0
Nozzle, Side Defroster, No.2
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
55962-02030-B0 |
— | ||
|
55962
|
55962
55962-02030-E0
Nozzle, Side Defroster, No.2
[07.2007 - 03.2009] ADE150 ASH BROWN,TRIM4# |
55962-02030-E0 |
— | ||
|
55981
|
55981
55981-02030
Garnish, Defroster Nozzle, No.1
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER |
55981-02030 |
— | ||
|
69065
|
69065
69065-02010
Cylinder Sub-Assy, Air Bag Cut Off Switch
[12.2012 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
69065-02010 |
— | ||
|
69065
|
69065
69065-47040
Cylinder Sub-Assy, Air Bag Cut Off Sw
[03.2010 - 06.2010] ADE150,ZRE152..E; ADE150,ZRE15#..N STARTING SYSTEM-PUSH BUTTON |
69065-47040 |
— | ||
|
69065
|
69065
69065-53010 Cylinder Sub-Assy, Air Bag Cut Off SwAIR BAG CUT OFF SW [07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69065-53010 |
US $51.40 |
||
|
73960A
|
73960A
73960-02090
Air Bag Assy, Instrument Panel Passenger W/o Door
[07.2007 - 03.2009] ADE150 |
73960-02090 |
— | ||
| replacement | |||||
|
73960A
|
73960A
73960-02091
Air Bag Assy, Instrument Panel Passenger W/o Door
[07.2007 - 03.2009] ADE150 |
73960-02091 |
— | ||
|
73960A
|
73960A
73960-02091
Air Bag Assy, Instrument Panel Passenger W/o Door
[02.2013 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
73960-02091 |
— | ||
|
82140
|
82140
82140-02160
Wire Assy, Instrument Panel
[07.2007 - 03.2009] ADE150 |
82140-02160 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960610
|
9015960610
90159-60610 New Genuine Part |
90159-60610 |
US $0.73 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018306025
|
9018306025
90183-06025 NUT |
90183-06025 |
US $1.60 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
