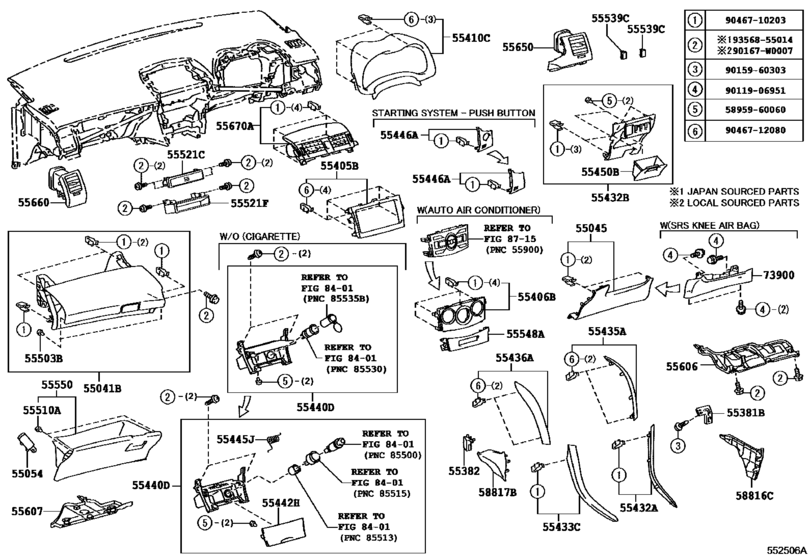

Instrument Panel & Glove Compartment ([06.2010 - ] (1006- )RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55041B
|
55041B
55041-02100-B0
Door Sub-Assy, Instrument Panel Box, No.1
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55041-02100-B0 |
— | ||
|
55041B
|
55041B
55041-02100-E0
Door Sub-Assy, Instrument Panel Box, No.1
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55041-02100-E0 |
— | ||
|
55054
|
55054
55054-12030 Stopper Sub-Assy, Glove Compartment Door[07.2007 - 03.2009] ADE150 |
55054-12030 |
from US $10.63 |
||
|
55381B
|
55381B
55381-02140
Bracket, Finish Panel Mounting, No.1
[07.2007 - 03.2009] ADE150..SA |
55381-02140 |
— | ||
|
55382
|
55382
55382-02110
Bracket, Finish Panel Mounting, No.2
[07.2007 - 03.2009] ADE150..SA |
55382-02110 |
— | ||
|
55405B
|
55405B
55405-02160
Panel Sub-Assy, Instrument Cluster Finish, Center
[07.2007 - 03.2009] ADE150 AUDIO-RADIOLESS 6SPEAKER |
55405-02160 |
— | ||
|
55410C
|
55410C
55410-02080-B0
Panel Assy, Instrument Cluster Finish
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55410-02080-B0 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-12A30-B0 Panel Assy, Instrument Cluster Finish[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55410-12A30-B0 |
US $80.08 |
||
|
55410C
|
55410C
55410-02080-E0
Panel Assy, Instrument Cluster Finish
[07.2007 - 03.2009] ADE150..SA ASH BROWN,TRIM4# |
55410-02080-E0 |
— | ||
|
55410C
|
55410C
55410-12A30-B0 Panel Assy, Instrument Cluster Finish[09.2011 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1#,4# |
55410-12A30-B0 |
US $80.08 |
||
|
55432A
|
55432A
55432-02110
Panel, Instrument Panel Finish, Lower Rh
[07.2007 - 03.2009] ADE150 |
55432-02110 |
— | ||
|
55432A
|
55432A
55432-02380
Panel, Instrument Panel Finish, Lower Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
55432-02380 |
— | ||
|
55432B
|
55432B
55480-02020-B0
Panel, Instrument Panel Finish, Lower
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55480-02020-B0 |
— | ||
|
55432B
|
55432B
55480-02020-E0
Panel, Instrument Panel Finish, Lower
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55480-02020-E0 |
— | ||
|
55433C
|
55433C
55433-02110
Panel, Instrument Panel Finish, Lower Lh
[07.2007 - 03.2009] ADE150 |
55433-02110 |
— | ||
|
55433C
|
55433C
55433-02250
Panel, Instrument Panel Finish, Lower Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
55433-02250 |
— | ||
|
55435A
|
55435A
55435-02180
Panel, Instrument Panel Finish, End Rh
[07.2007 - 03.2009] ADE150 |
55435-02180 |
— | ||
|
55435A
|
55435A
55435-02310
Panel, Instrument Panel Finish, End Rh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
55435-02310 |
— | ||
|
55436A
|
55436A
55436-02140
Panel, Instrument Panel Finish, End Lh
[07.2007 - 03.2009] ADE150 |
55436-02140 |
— | ||
|
55436A
|
55436A
55436-02270
Panel, Instrument Panel Finish, End Lh
[06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
55436-02270 |
— | ||
|
55440D
|
55440D
55440-02050
Box Assy, Instrument Panel
[07.2007 - 03.2009] ADE150..SA |
55440-02050 |
— | ||
|
55440D
|
55440D
55440-12270
Box Assy, Instrument Panel
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N |
55440-12270 |
— | ||
|
55442H
|
55442H
55442-02140
Door, Instrument Panel
[07.2007 - 03.2009] ADE150..SA |
55442-02140 |
— | ||
|
55442H
|
55442H
55442-12390
Door, Instrument Panel
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N |
55442-12390 |
— | ||
|
55445J
|
55445J
55445-12100 Spring, Instrument Panel Box[07.2007 - 03.2009] ADE150..SA |
55445-12100 |
US $1.31 |
||
|
55445J
|
55445J
55445-12130 Spring, Instrument Panel BoxINSTRUMENT PANEL BOX [06.2010 - 01.2014] ZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150, NRE150,ZRE152,153 |
55445-12130 |
US $1.31 |
||
|
55446A
|
55446A
55446-02110-B0
Base, Switch Hole, No.1
[07.2007 - 03.2009] ADE150..E DK.GRAY,TRIM1#; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1# |
55446-02110-B0 |
— | ||
|
55446A
|
55446A
55446-02110-E0
Base, Switch Hole, No.1
[07.2007 - 03.2009] ADE150..E GREGE,TRIM4#; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
55446-02110-E0 |
— | ||
|
55450B
|
55450B
55450-02010-B0
Box Assy, Coin
[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1# |
55450-02010-B0 |
— | ||
|
55450B
|
55450B
55450-02010-E0
Box Assy, Coin
[07.2007 - 03.2009] ADE150 GREGE,TRIM4# |
55450-02010-E0 |
— | ||
|
55503B
|
55503B
58959-60060 Cushion, Instrument Panel[07.2007 - 03.2009] ADE150 |
58959-60060 |
from US $1.38 |
||
|
55510A
|
55510A
55557-53030 Cushion(For Glove Compartment Door)[07.2007 - 03.2009] ADE150 |
55557-53030 |
US $1.85 |
||
|
55521C
|
55521C
55521-02110
Cover, Stereo Opening
[07.2007 - 03.2009] ADE150 AUDIO-RADIOLESS 6SPEAKER |
55521-02110 |
— | ||
|
55521F
|
55521F
55521-02120
Cover, Stereo Opening, No.2
[07.2007 - 03.2009] ADE150 AUDIO-RADIOLESS 6SPEAKER |
55521-02120 |
— | ||
|
55539C
|
55539C
55539-52060-B0 Cover, Spare Switch Hole[07.2007 - 03.2009] ADE150 DK.GRAY,TRIM1#; ADE150 HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH,DK.GRAY,TRIM1# |
55539-52060-B0 |
US $4.80 |
||
|
55539C
|
55539C
55539-52060-E0 Cover, Spare Switch Hole[07.2007 - 03.2009] ADE150 GREGE,TRIM4#; ADE150 HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH,GREGE,TRIM4# |
55539-52060-E0 |
US $3.20 |
||
|
55548A
|
55548A
55548-02120
Cover, Instrument Panel Hole
[07.2007 - 03.2009] ADE150 |
55548-02120 |
— | ||
|
55548A
|
55548A
55548-02350
Cover, Instrument Panel Hole
[06.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N |
55548-02350 |
— | ||
|
55550
|
55550
55550-02220-B0
Door Assy, Glove Compartment
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55550-02220-B0 |
— | ||
|
55550
|
55550
55550-02220-E0
Door Assy, Glove Compartment
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55550-02220-E0 |
— | ||
|
55606
|
55606
55606-02090
Cover Sub-Assy, Instrument Panel Under, No.1
[07.2007 - 03.2009] ADE150..SA |
55606-02090 |
— | ||
|
55607
|
55607
55607-02110
Cover Sub-Assy, Instrument Panel Under, No.2
[07.2007 - 03.2009] ADE150..SA |
55607-02110 |
— | ||
|
55650
|
55650
55650-12340-B0
Register Assy, Instrument Panel, No.1
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55650-12340-B0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-12381-B0 Register Assy, Instrument Panel, No.1[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55650-12381-B0 |
US $65.67 |
||
|
55650
|
55650
55650-12340-E0
Register Assy, Instrument Panel, No.1
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55650-12340-E0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-12381-E0 Register Assy, Instrument Panel, No.1[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55650-12381-E0 |
US $65.67 |
||
|
55650
|
55650
55650-12380-B0 Register Assy, Instrument Panel, No.1[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55650-12380-B0 |
US $80.08 |
||
| replacement | |||||
|
55650
|
55650
55650-12381-B0 Register Assy, Instrument Panel, No.1[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55650-12381-B0 |
US $65.67 |
||
|
55650
|
55650
55650-12380-E0 Register Assy, Instrument Panel, No.1[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55650-12380-E0 |
US $80.08 |
||
| replacement | |||||
|
55650
|
55650
55650-12381-E0 Register Assy, Instrument Panel, No.1[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55650-12381-E0 |
US $65.67 |
||
|
55650
|
55650
55650-12381-B0 Register Assy, Instrument Panel, No.1[12.2010 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55650-12381-B0 |
US $65.67 |
||
|
55650
|
55650
55650-12381-E0 Register Assy, Instrument Panel, No.1[12.2010 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55650-12381-E0 |
US $65.67 |
||
|
55660
|
55660
55660-12390-B0
Register Assy, Instrument Panel, No.2
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55660-12390-B0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12411-B0 Register Assy, Instrument Panel, No.2[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
55660-12411-B0 |
US $65.67 |
||
|
55660
|
55660
55660-12390-E0
Register Assy, Instrument Panel, No.2
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55660-12390-E0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12411-E0 Register Assy, Instrument Panel, No.2[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
55660-12411-E0 |
US $65.67 |
||
|
55660
|
55660
55660-12410-B0 Register Assy, Instrument Panel, No.2[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55660-12410-B0 |
US $80.08 |
||
| replacement | |||||
|
55660
|
55660
55660-12411-B0 Register Assy, Instrument Panel, No.2[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55660-12411-B0 |
US $65.67 |
||
|
55660
|
55660
55660-12410-E0 Register Assy, Instrument Panel, No.2[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55660-12410-E0 |
US $80.08 |
||
| replacement | |||||
|
55660
|
55660
55660-12411-E0 Register Assy, Instrument Panel, No.2[11.2009 - 06.2010] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55660-12411-E0 |
US $65.67 |
||
|
55660
|
55660
55660-12411-B0 Register Assy, Instrument Panel, No.2[12.2010 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) DK.GRAY,TRIM1# |
55660-12411-B0 |
US $65.67 |
||
|
55660
|
55660
55660-12411-E0 Register Assy, Instrument Panel, No.2[12.2010 - 01.2014] ADE150,NRE150,ZRE15#..RHD..(E,N) GREGE,TRIM4# |
55660-12411-E0 |
US $65.67 |
||
|
55670A
|
55670A
55670-12370
Register Assy, Instrument Panel, Center
[07.2007 - 03.2009] ADE150 |
55670-12370 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-12591
Register Assy, Instrument Panel, Center
[07.2007 - 03.2009] ADE150 |
55670-12591 |
— | ||
|
55670A
|
55670A
55670-12590
Register Assy, Instrument Panel, Center
[11.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..E,N |
55670-12590 |
— | ||
| replacement | |||||
|
55670A
|
55670A
55670-12591
Register Assy, Instrument Panel, Center
[11.2009 - 06.2010] ADE150,NDE150,NRE150,ZRE15#..E,N |
55670-12591 |
— | ||
|
55670A
|
55670A
55670-12591
Register Assy, Instrument Panel, Center
[10.2010 - 01.2014] ADE150,NRE150,ZRE15#..E,N |
55670-12591 |
— | ||
|
58816C
|
58816C
58816-02070-B0
Insert, Console Box, Front No.1
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
58816-02070-B0 |
— | ||
|
58816C
|
58816C
58816-02070-E0
Insert, Console Box, Front No.1
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
58816-02070-E0 |
— | ||
|
58817B
|
58817B
58817-02070-B0
Insert, Console Box, Front No.2
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
58817-02070-B0 |
— | ||
|
58817B
|
58817B
58817-02070-E0
Insert, Console Box, Front No.2
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
58817-02070-E0 |
— | ||
|
73900
|
73900
73900-02040-B0
Air Bag Assy, Instrument Panel, Lower No.1
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
73900-02040-B0 |
— | ||
| replacement | |||||
|
73900
|
73900
73900-02041-B0
Air Bag Assy, Instrument Panel, Lower No.1
[07.2007 - 03.2009] ADE150..SA DK.GRAY,TRIM1# |
73900-02041-B0 |
— | ||
|
73900
|
73900
73900-02040-E0
Air Bag Assy, Instrument Panel, Lower No.1
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
73900-02040-E0 |
— | ||
| replacement | |||||
|
73900
|
73900
73900-02041-E0
Air Bag Assy, Instrument Panel, Lower No.1
[07.2007 - 03.2009] ADE150..SA GREGE,TRIM4# |
73900-02041-E0 |
— | ||
|
73900
|
73900
73900-02041-B0
Air Bag Assy, Instrument Panel, Lower No.1
[02.2013 - 01.2014] ADE150,NRE150,ZRE151,153..(E,N)..SA DK.GRAY,TRIM1# |
73900-02041-B0 |
— | ||
|
73900
|
73900
73900-02041-E0
Air Bag Assy, Instrument Panel, Lower No.1
[02.2013 - 01.2014] ADE150,NRE150,ZRE151,153..(E,N)..SA GREGE,TRIM4#; NRE150,ZRE151,152..RHD..N..GEN SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
73900-02041-E0 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.38 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
