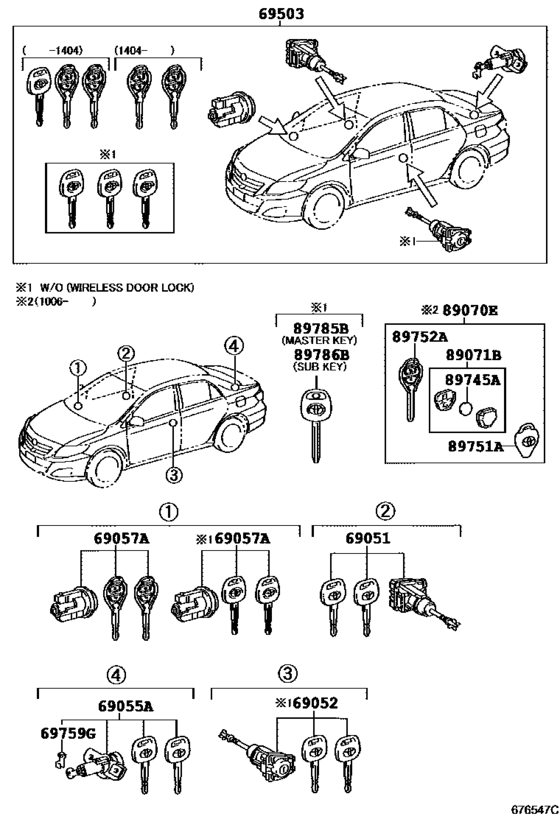

Lock Cylinder Set ([07.2007 - ] W/O(SMART ENTRY) (0707- )RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-12680
Cylinder & Key Set, Door Lock, Rh
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69051-12680 |
— | ||
|
69052
|
69052
69052-12630
Cylinder & Key Set, Door Lock, Lh
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69052-12630 |
— | ||
|
69055A
|
69055A
69055-12A30
Cylinder & Key Set, Luggage Compartment Lock
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69055-12A30 |
— | ||
|
69503
|
69503
69005-12C50
Cylinder Set, Lock
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON |
69005-12C50 |
— | ||
|
69759G
|
69759G
69759-24080 Snap, Front Door Lock Control Rod[07.2007 - 03.2009] ADE150 |
69759-24080 |
from US $2.50 |
