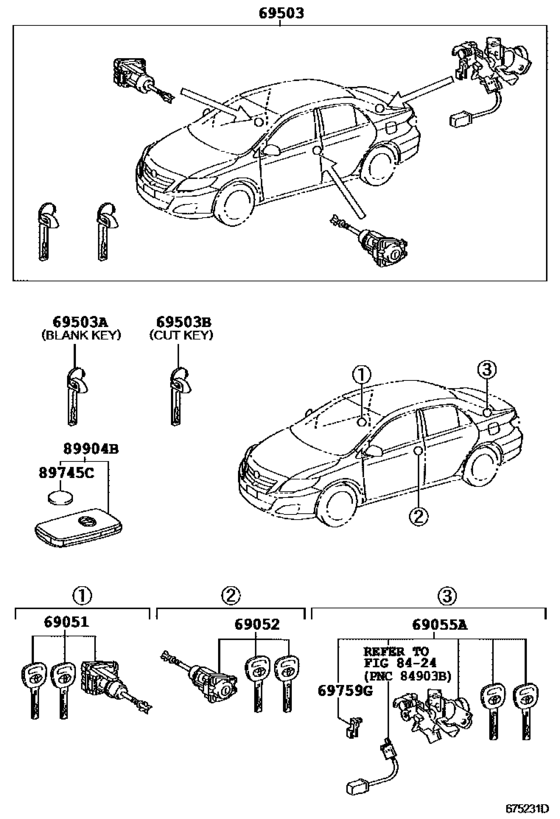

Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- )) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-12680
Cylinder & Key Set, Door Lock, Rh
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69051-12680 |
— | ||
|
69052
|
69052
69052-12630
Cylinder & Key Set, Door Lock, Lh
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69052-12630 |
— | ||
|
69055A
|
69055A
69055-12A30
Cylinder & Key Set, Luggage Compartment Lock
[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
69055-12A30 |
— | ||
|
69503
|
69503
69005-12C50
Cylinder Set, Lock
[07.2007 - 03.2009] ADE150..E; ADE150..N..SA STARTING SYSTEM-PUSH BUTTON |
69005-12C50 |
— | ||
|
69503A
|
69503A
69515-52120 Key, Blank[07.2007 - 03.2009] ADE150..E MASTER KEY,W(*68); ADE150..N MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON |
69515-52120 |
US $45.55 |
||
|
69503B
|
69503B
69515-52110 Key, Cutfor blank key → [07.2007 - 03.2009] ADE150..E MASTER KEY,W(*68); ADE150..N MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON |
69515-52110 |
US $116.92 |
||
|
69759G
|
69759G
69759-24080 Snap, Front Door Lock Control Rod[07.2007 - 03.2009] ADE150 |
69759-24080 |
US $3.20 |
||
|
89745C
|
89745C
89745-52030 Battery, Transmitter (CR1632)[07.2007 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
89745-52030 |
from US $7.04 |
||
|
89904B
|
89904B
89904-12041
Transmitter Sub-Assy, Electrical Key
[07.2007 - 01.2008] ADE150,ZRE152..E; ADE150,ZRE15#..N STARTING SYSTEM-PUSH BUTTON |
89904-12041 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-12043
Transmitter Sub-Assy, Electrical Key
[07.2007 - 01.2008] ADE150,ZRE152..E; ADE150,ZRE15#..N STARTING SYSTEM-PUSH BUTTON |
89904-12043 |
— | ||
|
89904B
|
89904B
89904-12042
Transmitter Sub-Assy, Electrical Key
[02.2008 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
89904-12042 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-12043
Transmitter Sub-Assy, Electrical Key
[02.2008 - 03.2009] ADE150..E; ADE150..N STARTING SYSTEM-PUSH BUTTON |
89904-12043 |
— | ||
|
89904B
|
89904B
89904-12230
Transmitter Sub-Assy, Electrical Key
[06.2010 - 01.2014] ADE150,ZRE153..E; ZRE151..N..SA;ADE150,ZRE153..N;ZRE151,152..LHD..N STARTING SYSTEM-PUSH BUTTON |
89904-12230 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-12231
Transmitter Sub-Assy, Electrical Key
[06.2010 - 01.2014] ADE150,ZRE153..E; ZRE151..N..SA;ADE150,ZRE153..N;ZRE151,152..LHD..N STARTING SYSTEM-PUSH BUTTON |
89904-12231 |
— | ||
