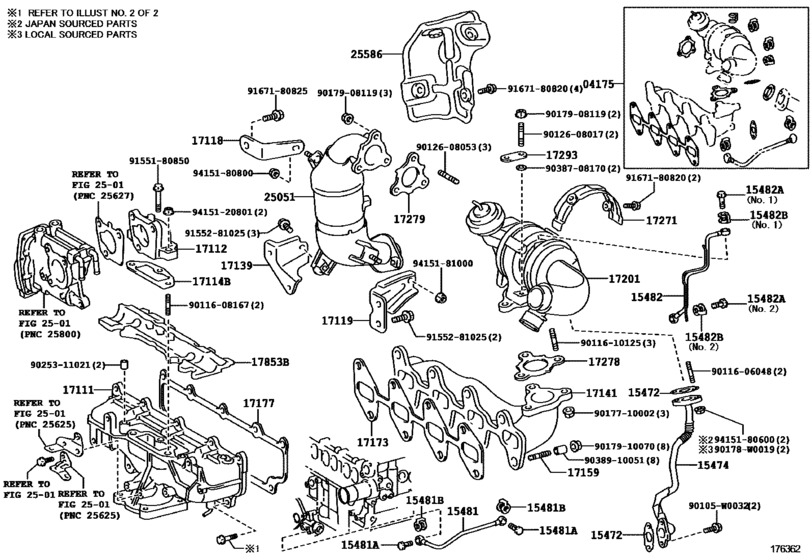

Manifold ([03.2009 - ] (0903- )1ADFTV) Diagram Toyota COROLLA
- Year
- 2007 - 2014
- Sales region
- General
- Frame
- ADE150
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 07.2007
- To
- 01.2014
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-0R080
Gasket Kit, Turbocharger
[07.2007 - 03.2009] 1ADFTV..ADE150 |
04175-0R080 |
— | ||
|
15472
|
15472
15472-0R010
Gasket, Turbo Oil Outlet, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15472-0R010 |
— | ||
|
15474
|
15474
15474-26010
Pipe, Turbo Oil Outlet
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15474-26010 |
— | ||
|
15474
|
15474
15474-26030
Pipe, Turbo Oil Outlet
[03.2009 - 06.2010] 1ADFTV..ADE150 |
15474-26030 |
— | ||
|
15481
|
15481
15481-0R010
Pipe, Turbo Oil, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
15481-0R010 |
— | ||
| replacement | |||||
|
15481
|
15481
15481-26010 Pipe, Turbo Oil, No.1TURBO OIL, NO.1 [07.2007 - 03.2009] 1ADFTV..ADE150 |
15481-26010 |
US $21.84 |
||
|
15481A
|
15481A
90401-12039 Bolt, Union(For Oil Cooler)UNION, NO.1 [07.2007 - 03.2009] 1ADFTV..ADE150 |
90401-12039 |
from US $6.24 |
||
|
15481B
|
15481B
90430-12037 Gasket(For Union Bolt No.1)[07.2007 - 03.2009] 1ADFTV..ADE150 |
90430-12037 |
from US $0.86 |
||
|
15482
|
15482
15482-0R010
Pipe, Turbo Oil, No.2
[07.2007 - 01.2009] 1ADFTV..ADE150 |
15482-0R010 |
— | ||
| replacement | |||||
|
15482
|
15482
15482-26020
Pipe, Turbo Oil, No.2
[07.2007 - 01.2009] 1ADFTV..ADE150 |
15482-26020 |
— | ||
|
15482
|
15482
15482-0R020
Pipe, Turbo Oil, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
15482-0R020 |
— | ||
|
15482
|
15482
15482-26020
Pipe, Turbo Oil, No.2
[01.2009 - 03.2009] 1ADFTV..ADE150 |
15482-26020 |
— | ||
|
15482A
|
15482A
90401-10068 Bolt, Union, No.2UNION, NO.2 [07.2007 - 03.2009] 1ADFTV..ADE150 NO.1 |
90401-10068 |
US $1.46 |
||
|
15482A
|
15482A
90401-12039 Bolt, Union(For Oil Cooler)UNION, NO.1 [07.2007 - 03.2009] 1ADFTV..ADE150 NO.2 |
90401-12039 |
from US $6.24 |
||
|
15482B
|
15482B
90430-12037 Gasket(For Union Bolt No.1)[07.2007 - 03.2009] 1ADFTV..ADE150 NO.2 |
90430-12037 |
from US $0.86 |
||
|
15482B
|
15482B
90904-30011 Gasket(For Turbo Oil Inlet Pipe)[07.2007 - 03.2009] 1ADFTV..ADE150 NO.1 |
90904-30011 |
from US $3.33 |
||
|
17111
|
17111
17101-0R010
Manifold, Intake
[07.2007 - 07.2008] 1ADFTV..ADE150 |
17101-0R010 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-0R011
Manifold, Intake
[07.2007 - 07.2008] 1ADFTV..ADE150 |
17101-0R011 |
— | ||
|
17111
|
17111
17101-0R011
Manifold, Intake
[07.2008 - 03.2009] 1ADFTV..ADE150 |
17101-0R011 |
— | ||
|
17111
|
17111
17101-0R020
Manifold, Intake
[03.2009 - 06.2010] 1ADFTV..ADE150 |
17101-0R020 |
— | ||
|
17112
|
17112
17112-26010
Manifold, Intake, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
17112-26010 |
— | ||
|
17114B
|
17114B
17116-26010
Gasket, Intake Flange
[03.2009 - 06.2010] 1ADFTV..ADE150 |
17116-26010 |
— | ||
|
17118
|
17118
17118-0R010
Stay, Manifold
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17118-0R010 |
— | ||
|
17119
|
17119
17119-0R010
Stay, Manifold, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17119-0R010 |
— | ||
| replacement | |||||
|
17119
|
17119
17119-0R030
Stay, Manifold, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17119-0R030 |
— | ||
|
17119
|
17119
17119-0R030
Stay, Manifold, No.2
[03.2009 - 06.2010] 1ADFTV..ADE150 |
17119-0R030 |
— | ||
|
17139
|
17139
17139-0R010
Stay, Manifold, No.2
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17139-0R010 |
— | ||
|
17141
|
17141
17141-0R010
Manifold, Exhaust
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17141-0R010 |
— | ||
|
17141
|
17141
17141-26100
Manifold, Exhaust
[03.2009 - 06.2010] 1ADFTV..ADE150 (J) |
17141-26100 |
— | ||
|
17159
|
17159
90126-10024 Bolt, Stud(For Manifold To Cylinder Head)STUD(FOR MANIFOLD TO CYLINDER HEAD) [07.2007 - 03.2009] 1ADFTV..ADE150 |
90126-10024 |
from US $4.70 |
||
|
17173
|
17173
17173-0R010
Gasket, Exhaust Manifold To Head
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17173-0R010 |
— | ||
|
17177
|
17177
17171-0R010
Gasket, Intake Manifold To Head, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17171-0R010 |
— | ||
|
17201
|
17201
17201-0R040
Turbocharger Sub-Assy
[07.2007 - 08.2007] 1ADFTV..ADE150 |
17201-0R040 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0R043
Turbocharger Sub-assy
[07.2007 - 08.2007] 1ADFTV..ADE150 |
17201-0R043 |
— | ||
|
17201
|
17201
17201-0R041
Turbocharger Sub-Assy
[08.2007 - 03.2009] 1ADFTV..ADE150 |
17201-0R041 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0R043
Turbocharger Sub-assy
[08.2007 - 03.2009] 1ADFTV..ADE150 |
17201-0R043 |
— | ||
|
17201
|
17201
17201-0R070
Turbocharger Sub-Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 (L) |
17201-0R070 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0R072
Turbocharger Sub-Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 (L) |
17201-0R072 |
— | ||
|
17201
|
17201
17201-0R071
Turbocharger Sub-Assy
[04.2013 - 01.2014] 1ADFTV..ADE150 (L) |
17201-0R071 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-0R072
Turbocharger Sub-Assy
[04.2013 - 01.2014] 1ADFTV..ADE150 (L) |
17201-0R072 |
— | ||
|
17201
|
17201
17201-26080
Turbocharger Sub-Assy
[03.2009 - 06.2010] 1ADFTV..ADE150 (J) |
17201-26080 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-26082 Turbocharger Sub-Assy[03.2009 - 06.2010] 1ADFTV..ADE150 (J) |
17201-26082 |
US $1,921.92 |
||
|
17201
|
17201
17201-26081
Turbocharger Sub-Assy
[06.2013 - 01.2014] 1ADFTV..ADE150 (J) |
17201-26081 |
— | ||
| replacement | |||||
|
17201
|
17201
17201-26082 Turbocharger Sub-Assy[06.2013 - 01.2014] 1ADFTV..ADE150 (J) |
17201-26082 |
US $1,921.92 |
||
|
17271
|
17271
17271-0R020
Insulator, Turbo, No.1
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17271-0R020 |
— | ||
|
17278
|
17278
17278-0R010
Gasket, Turbo To Exhaust Manifold
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17278-0R010 |
— | ||
|
17279
|
17279
17279-0R010
Gasket, Turbine Outlet Elbow
[07.2007 - 03.2009] 1ADFTV..ADE150 |
17279-0R010 |
— | ||
|
17293
|
17293
17293-26010 Stay, TurbochargerTURBOCHARGER [07.2007 - 03.2009] 1ADFTV..ADE150 |
17293-26010 |
US $3.20 |
||
|
17853B
|
17853B
17853-26030
Insulator, Intake Manifold
[03.2009 - 06.2010] 1ADFTV..ADE150 |
17853-26030 |
— | ||
|
25051
|
25051
25051-0R010 Converter Sub-Assy, Exhaust ManifoldEXHAUST MANIFOLD [07.2007 - 03.2009] 1ADFTV..ADE150 *114=TOYOTA/0R010/Y |
25051-0R010 |
US $1,377.38 |
||
|
25051
|
25051
25051-0R050
Converter Sub-Assy, Exhaust Manifold
[03.2009 - 06.2010] 1ADFTV..ADE150 *114=TOYOTA/0R050/Y |
25051-0R050 |
— | ||
|
25586
|
25586
25586-0R011
Insulator, Manifold Converter, No.1
[07.2007 - 07.2008] 1ADFTV..ADE150 |
25586-0R011 |
— | ||
| replacement | |||||
|
25586
|
25586
25586-0R020
Insulator, Manifold Converter, No.1
[07.2007 - 07.2008] 1ADFTV..ADE150 |
25586-0R020 |
— | ||
|
25586
|
25586
25586-0R020
Insulator, Manifold Converter, No.1
[08.2008 - 03.2009] 1ADFTV..ADE150 |
25586-0R020 |
— | ||
|
90105W0032
|
90105W0032
90105-W0032
New Genuine Part
|
90105-W0032 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.84 |
||
|
9011608167
|
9011608167
90116-08167 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90116-08167 |
US $1.76 |
||
|
9011610125
|
9011610125
90116-10125 Bolt, Stud(For Turbine Housing) |
90116-10125 |
US $3.04 |
||
|
9012608017
|
9012608017
90126-08017 Bolt, Stud(For Turbine Housing) |
90126-08017 |
US $2.77 |
||
|
9012608053
|
9012608053
90126-08053 Bolt, Stud(For Exhaust Manifold, Lh)STUD(FOR EXHAUST MANIFOLD, LH) |
90126-08053 |
US $4.16 |
||
|
9017710002
|
9017710002
90177-10002 Nut |
90177-10002 |
US $1.76 |
||
|
9017908119
|
9017908119
90179-08119 NUT |
90179-08119 |
US $1.44 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.50 |
||
|
9038708170
|
9038708170
90387-08170
New Genuine Part
|
90387-08170 |
— | ||
|
9038910051
|
9038910051
90389-10051 New Genuine Part |
90389-10051 |
US $4.08 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
US $1.60 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.60 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.80 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.28 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.60 |
||
